Key Specifications / Features

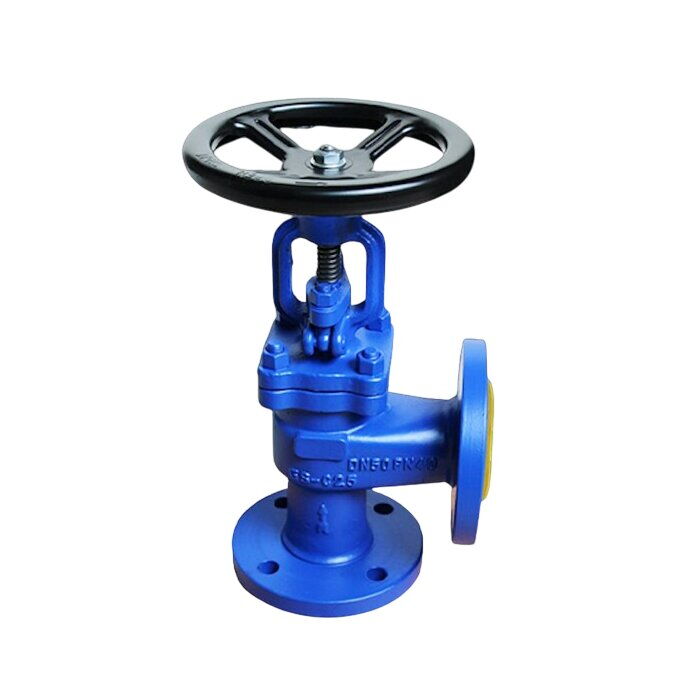

Our China DIN Angle Globe Valve Manufacturer specializes in producing high-quality angle globe valves that comply with DIN EN 13709 standards. These valves feature a GS-C25 carbon steel body, ensuring robustness and durability. Available in DN50 (2-inch) size, they are rated for a pressure class of PN40 and Class 300 LB, with raised face (RF) flanged ends for secure connections. Handwheel operation provides easy control, making these valves ideal for precise flow regulation in various industrial applications.
- Model no.: VPSK-20250515-GLV-01
- Hits: 3
- Categories: Globe Valves
- Tags: DIN EN 13709 Globe Valve , GS-C25 Globe Valve , Angle Globe Valve
Detail Information
Product Name: Angle Globe Valve
Design Standard: DIN EN 13709
Body Material: GS-C25
Size: DN50, 2 Inch
Pressure Rating: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel
Temperature Range: -29°C to 425°C
Medium: Water, Oil, Gas, etc.
Standards
Design & Manufacturing: DIN EN 13709
Test & Inspection: EN 12266
Flange End: EN 1092-1
Face to Face: EN 558-1
Key Features of Angle Globe Valve

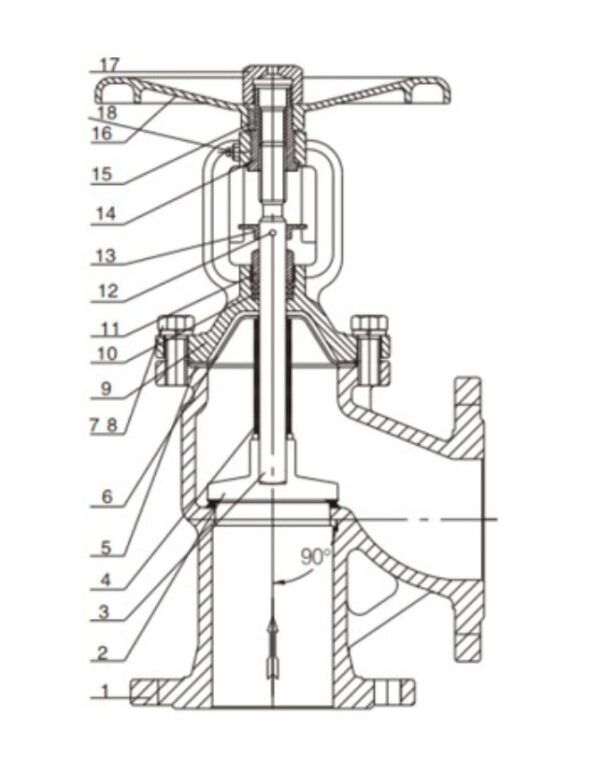

Space-Saving 90° Outlet: Ideal for corner installations, eliminating the need for 90° elbows, saving material and space while simplifying operation.
Advanced Casting: Uses German film sand casting, enhancing surface finish and mechanical properties, reducing defects, and increasing tensile strength.
Reliable Sealing: Conical sealing surface with a "scraping effect" for self-cleaning and reliable sealing.
Double sealing design (bellows + packing) meeting international standards, with 100% helium and standard testing to ensure zero leakage.
