Key Specifications / Features

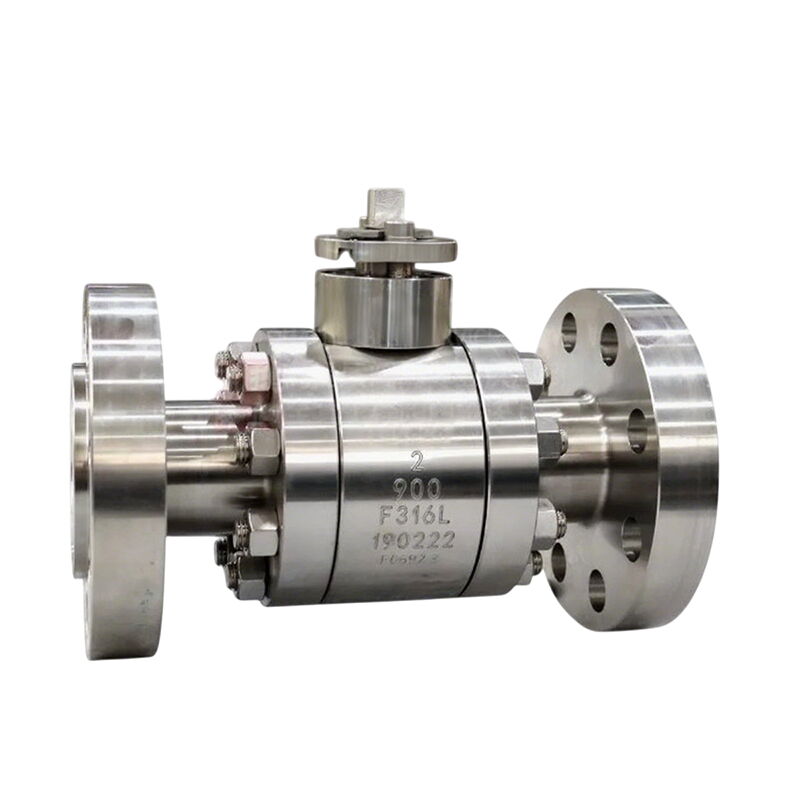

The China ASTM A182 F316L Ball Valves Factory specializes in manufacturing high-quality ball valves that adhere to ASME B16.34 standards. These valves are crafted from ASTM A182 F316L stainless steel, offering excellent corrosion resistance and durability. The 2-inch (DN50) ball valves feature a Class 900 LB pressure rating and PN150, with RF (Raised Face) flanged ends for secure connections.
- Model no.: VPSK-20250715-BAV-02
- Hits: 1
- Categories: Ball Valves
- Tags: ASME B16.34 Ball Valve , 2 Inch Ball Valve , ASTM A182 F316L Ball Valve
Detail Information
Product Name: ASTM A182 F316L Ball Valves
Design Standard: ASME B16.34
Body Material: ASTM A182 F316L (Stainless Steel ASTM A182 F304/F304L, F316/F316L, F51)
Size: 2 Inch, DN50 (1/2-10 Inch)
Pressure Rating: Class 900 LB, PN150 (Class 150-2500 LB)
End Connection: RF Flanged
Operation: Bare Shaft (Manual, Pneumatic, Electric)
Suitable Temperature: -196°C to 450°C
Medium: Water, Oil, Gas, Steam, etc
Standards
Design & Manufacturing: ASME B16.34, BS 5351, API 6D, API 608
Face to Face: ASME B16.10, API 6D
Test & Inspection: API 598, API 6D
Flange End: ASME B16.5
Fire Safe Test: API 607, API 6FA
