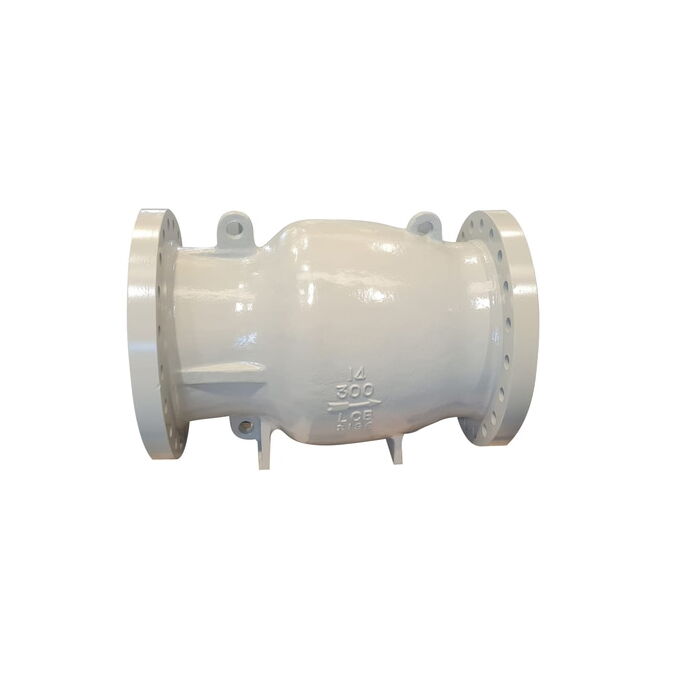

Axial Flow Check Valve, API 6D, A352 LCB, 14 Inch, CL300, RF
Key Specifications / Features
The Axial Flow Check Valve is a high-quality, reliable valve designed in accordance with ASME B16.34 and API 6D standards. It features a carbon steel ASTM A352 LCB body, ensuring robustness and durability. With a 14-inch diameter and a pressure rating of 300 LB, this valve is well-suited for demanding industrial applications. The RF ends facilitate easy and secure installation. This valve is an ideal choice for systems requiring efficient flow control and long-term reliability.
- Model No.: VPSK-20250418-CV-02
- Hits: 20
- Categories: Check Valves
- Tags: Axial Flow Check Valve , ASTM A352 LCB Check Valve , API 6D Check Valve
Detail Information
Product Name: Axial Flow Check Valve
Design Standard: ASME B16.34, API 6D
Body Material: ASTM A352 LCB
Size: 14 Inch, DN350
Pressure Rating: Class 300 LB, PN50
Test & Inspection: API 598, API 6D
Flange End Standard: ASME B16.5
Face to Face: ASME B16.10
End Connection: RF
Axial Flow Check Valve Features
The axial flow check valve combines the functions of a standard check valve with enhanced features for improved performance:
Shock Absorber Spring: Reduces water hammer and mechanical stress.
Hard and Soft Seal Structure: Provides noise reduction, shock absorption, and easy maintenance.
Axial Flow Shuttle: Offers low flow resistance, high flow coefficient, and compact size.
