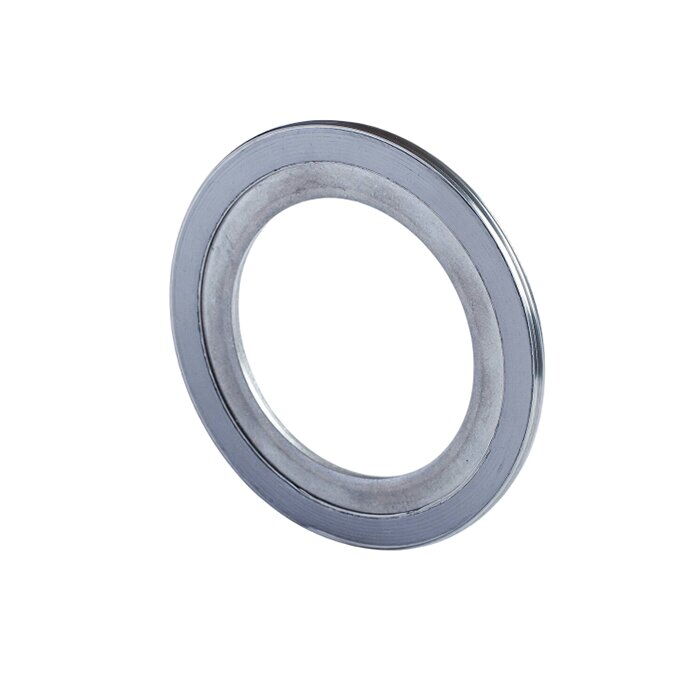

Custom Spiral Wound Gasket, ASME B16.20, Graphite/PTFE Filler

Home Products Valve Gaskets Custom Spiral Wound Gasket, ASME B16.20, Graphite/PTFE Filler

Key Specifications / Features

The Customized Spiral Wound Gasket Plant is designed to meet ASME B16.20 standards, offering customizable sizes and pressure ratings up to 40 MPa. Featuring graphite or PTFE fillers, and carbon or stainless steel windings, these gaskets ensure excellent sealing performance in high-pressure environments. With low emission properties, they are ideal for industries requiring reliable, leak-proof solutions for critical sealing applications.

Model No.: VPSK-20250418-VG-01
Hits: 24
Categories: Valve Gaskets
Tags: Spiral Wound Gasket , Graphite Filled Gasket , PTFE Filled Gasket

Request a quote

Detail Information

Product Name: Customized Spiral Wound Gasket
Standards: ASME B16.20
Materials:
Filler: Graphite, PTFE
Wing or Rings: Carbon Steel, SS 304, SS 316, SS 316L, etc.
Pressure: Up to 40 MPa
Size: Customized
Thickness: 3.2 mm, 4.5 mm, 6.5 mm
Certificates: API 622, ISO 15848-1, TA-LUFT
Temperature Range: –200°C to +550°C (Graphite); –200°C to +280°C (PTFE)

Spiral Wound Gasket Features

Spiral Wound Gaskets are made by winding thin metal strips and soft filler materials together in a special way.
They come in different combinations of metal and filler materials to suit various needs.
These gaskets are commonly used to seal pipe flanges in places with high temperatures and high pressure.
They offer strong and reliable sealing and work well in both heavy-duty and lighter applications.
