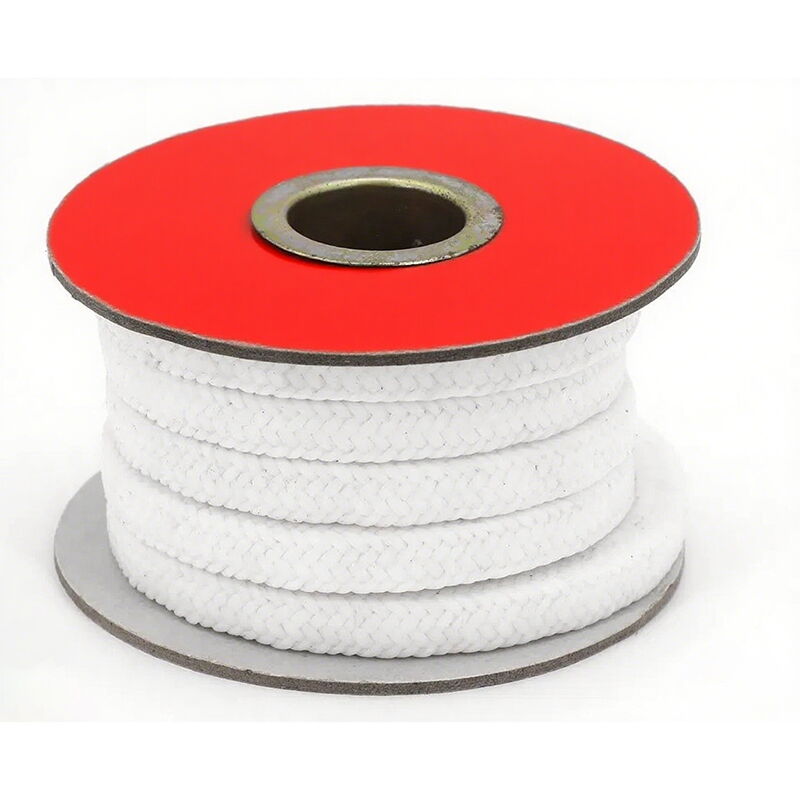

Acrylic Fiber Valve Packing, ISO 15848-1, 100 Bar, 3-50 mm
Key Specifications / Features
The Acrylic Fiber Valve Packing Plant offers high-quality braided packing, impregnated with PTFE, designed to meet stringent standards like ISO 15848-1 and API 622. Available in sizes ranging from 3*3mm to 50*50mm, this packing can withstand pressures up to 100 bar, making it ideal for use in valves and pumps.
- Model No.: VPSK-20250719-VP-01
- Hits: 2
- Categories: Valve Packing
- Tags: Acrylic Fiber Valve Packing , Braided Valve Packing , 100 Bar Valve Packing
Detail Information
Product Name: Acrylic Fiber Valve Packing, Braided
Material: Acrylic Fiber, PTFE
Size: 3*3mm to 50*50mm (Customized)
Pressure: 100 Bar
Velocity: 20 m/s
Certificates: TA-Luft, ISO 15848-1, API 622
pH Value: 1-13
Temperature Range: -100°C to 260°C
Usage: Suitable for Valve, Pump
Features
Versatility: Suitable for a wide range of applications throughout a plant.
Compatibility: Compatible with most chemicals, with the exception of strong acids, strong alkalis, and strong oxidizers.
High-Performance Applications: Ideal for use in pumps and valves.
Environmental Conditions: Designed for middle temperature, high-pressure, and high-speed conditions.
Purity Requirements: Ensures no contamination in environments where purity is critical.
