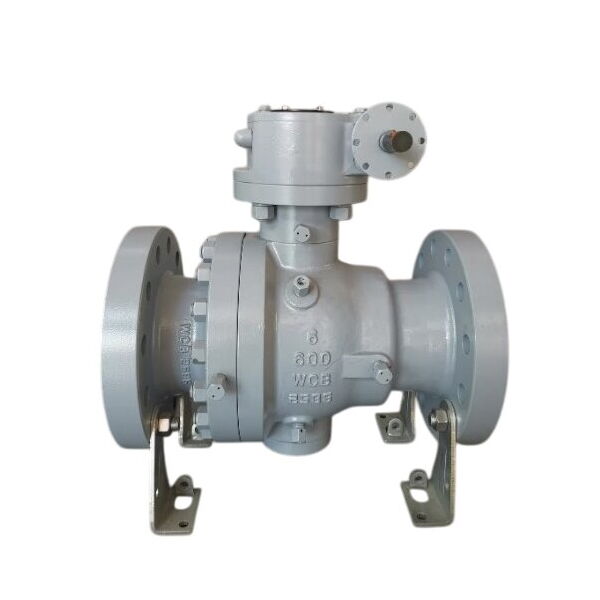

ASTM A216 WCB Ball Valve, API 608, API 6D, 2PC, 6 IN, CL600
Key Specifications / Features
The ASTM A216 WCB Ball Valve Supplier offers a high-quality carbon steel ball valve with a two-piece, side-entry design, ideal for demanding industrial applications. Conforming to API 608 and API 6D standards, this valve features a 6-inch size, Class 600 LB pressure rating, and DN150 dimensions. With RF flanged ends, it ensures a secure, leak-tight connection, making it suitable for systems requiring reliable flow control and high-pressure performance.
- Model No.: VPSK-20250417-BAV-01
- Hits: 20
- Categories: Ball Valves
- Tags: API 6D Ball Valve , API 608 Ball Valve , ASTM A216 WCB Ball Valve
Detail Information
Product Name: ASTM A216 WCB Ball Valve, Two Piece, Side Entry
Design Standard: API 608, API 6D
Body Material: ASTM A216 WCB
Ball Material: ASTM A105
Size: 6 Inch
Pressure Rating: Class 600 LB
Face to Face: ASME B16.10
Test & Inspection: API 598
Flange End Standard: ASME B16.5
End Connection: RF Flanged
Operation: Wormgear
