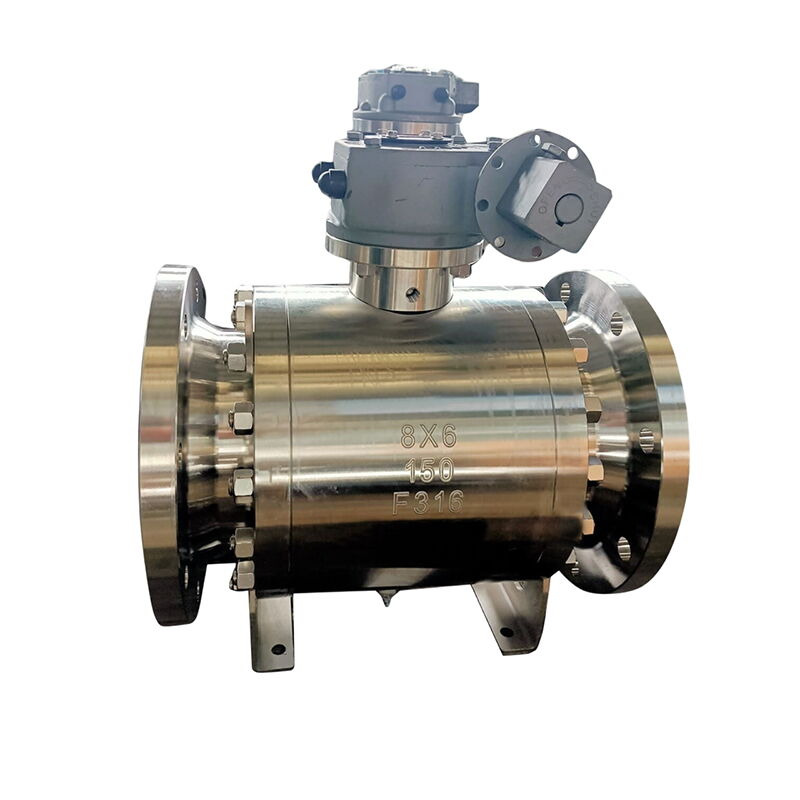

ASTM A182 F316 Ball Valve, API 6D, BS 5351, 8 * 6 IN, CL150
Key Specifications / Features
The ASTM A182 F316 ball valve is a high-quality, trunnion-mounted valve designed for dependable performance in demanding environments. Made from corrosion-resistant stainless steel, it meets API 6D and BS 5351 standards. This reduced port valve comes in an 8 × 6 inch (DN200 × DN150) size, rated for Class 150 LB, and features RF flanged ends for a secure and leak-tight fit. It’s a solid choice for applications that require reliable flow control, especially in systems handling corrosive media.
- Model No.: VPSK-20250417-BAV-02
- Hits: 6
- Categories: Ball Valves
- Tags: API 6D Ball Valve , ASTM A182 F316 Ball Valve , Trunnion Mounted Ball Valve
Detail Information
Product Name: ASTM A182 F316 Ball Valve, Reduced Port
Type: Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Body Material: ASTM A182 F316
Ball Material: ASTM A182 F316
Size: 8*6 Inch, DN200*DN150
Pressure Rating: Class 150 LB, PN20
Face to Face: ASME B16.10
Test & Inspection: API 598
Flange End Standard: ASME B16.5
Fire Safe Test Standard: API 607/API 6FA
End Connection: RF Flanged
Operation: Wormgear
Features
Reduced Bore
Anti-Static Device
Blow-Out Proof Stem
Fire Safe Design
Double Block and Bleed
