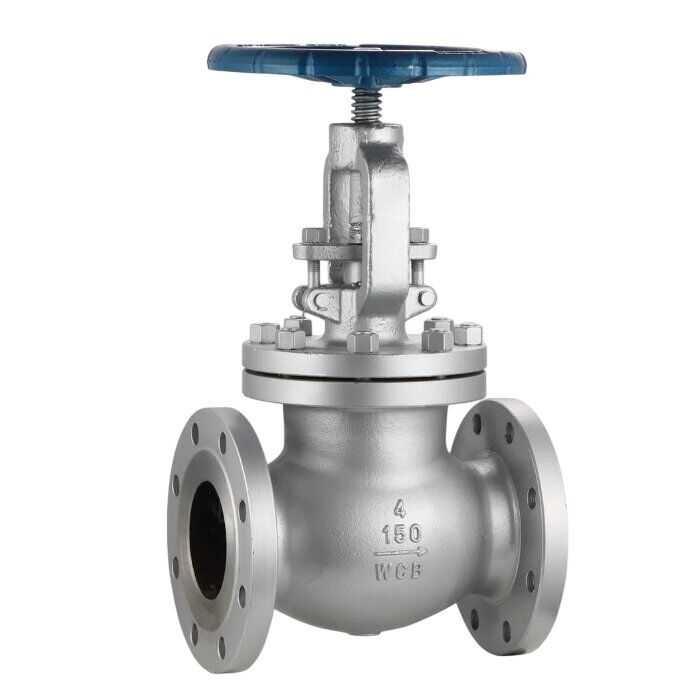

ASTM A216 WCB Globe Valve, ASME B16.34, 4 Inch, 150 LB, BB
Key Specifications / Features
The ASTM A216 WCB globe valve is a reliable solution for flow control and shutoff applications. Built with a durable carbon steel body, it meets ASME B16.34 standards and features a 4-inch (DN100) size with a Class 150 LB (PN20) rating. Designed with an outside screw and yoke (OS&Y) and a bolted bonnet, this valve ensures secure operation and easy maintenance. Ideal for cut-off service in various industrial pipelines, it offers dependable performance under moderate pressure conditions.
- Model No.: VPSK-20250417-GLV-01
- Hits: 9
- Categories: Globe Valves
- Tags: ASTM A216 WCB Globe Valve , ASME B16.34 Globe Valve , 4 Inch Globe Valve
Detail Information
Product Name: ASTM A216 WCB Globe Valve
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Disc Material: ASTM A216 WCB + Cr13
Size: 4 Inch, DN100
Pressure Rating: Class 150 LB, PN20
Test & Inspection: API 598
Flange End Standard: ASME B16.5
Face to Face: ASME B16.10
End Connection: RF
Operation: Handwheel
Features
OS&Y, Bolted Bonnet
Cut-off and Throttling Function
Flow Adjustment
Straight Pattern
