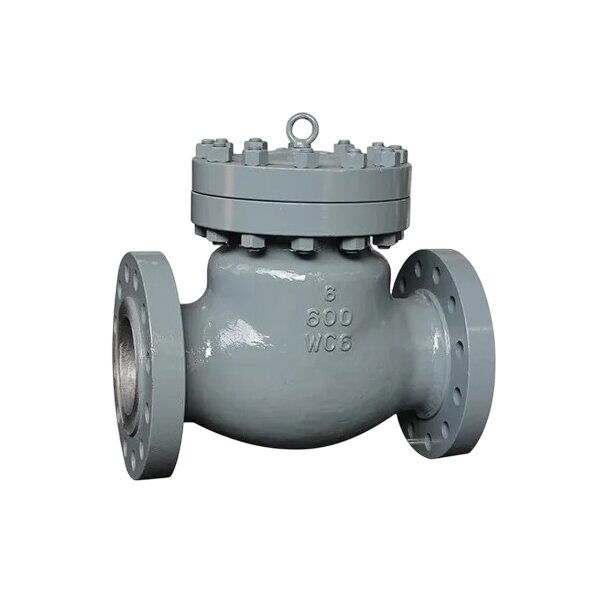

ASTM A217 WC6 Check Valve, API 6D, BS 1868, 6 Inch, CL600 LB
Key Specifications / Features
The ASTM A217 WC6 Swing Check Valve is a robust alloy steel valve designed for high-pressure applications. Manufactured to API 6D and BS 1868 standards, this 6-inch valve is rated for Class 600 LB and features a bolted bonnet for secure assembly. Operated by a handwheel, it ensures reliable backflow prevention with a swing disc design, making it ideal for high-pressure oil, gas, and chemical processing systems. RF ends provide secure and leak-tight connections.
- Model No.: VPSK-20250418-CV-02
- Hits: 5
- Categories: Check Valves
- Tags: ASTM A217 WC6 Check Valve , Swing Check Valve , BS 1868 Check Valve
Detail Information
Product Name: ASTM A217 WC6 Swing Check Valve
Key Features: Swing Disc, Bolted Bonnet
Design Standard: API 6D, BS 1868
Body Material: ASTM A217 WC6
Size: 6 Inch, DN150
Pressure Rating: Class 600 LB, PN100
Pressure & Temperature: ASME B16.34
Face to Face: ASME B16.10
Test & Inspection: API 598
Flanged End: ASME B16.5
End Connection: RF
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Working Temperature: -196°C to 450°C
