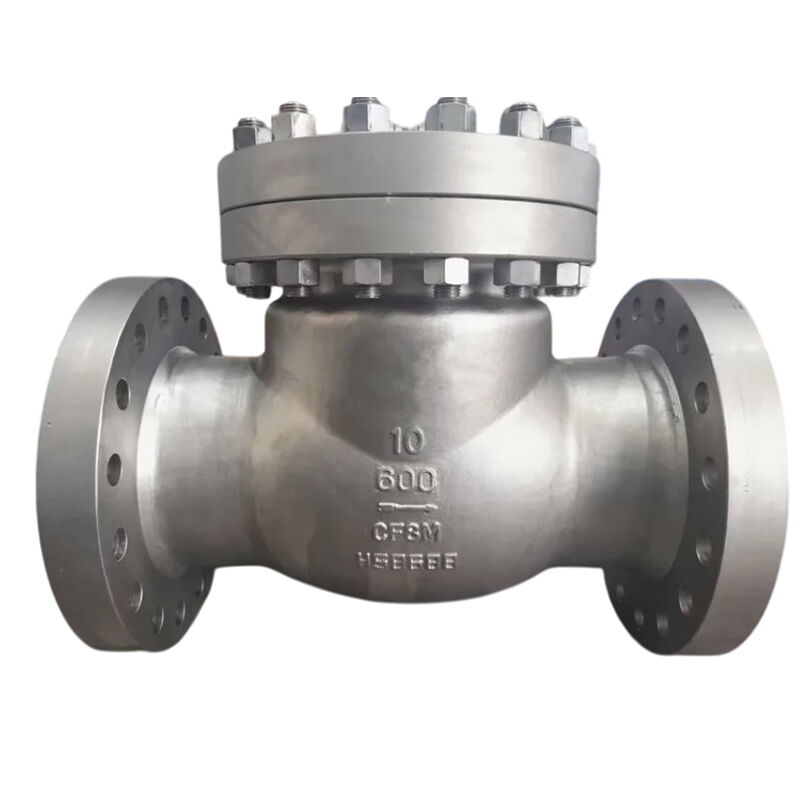

ASTM A351 CF3M Swing Check Valve, API 6D, 10 Inch, CL600, RF
Key Specifications / Features
The China ASTM A351 CF3M Check Valve Supplier offers a high-quality Swing Check Valve designed to meet the stringent API 6D standard. This valve features a cast stainless steel body, providing excellent durability and corrosion resistance. With a nominal diameter of DN250 (equivalent to 10 inches) and a pressure rating of Class 600 LB or PN100, it is suitable for demanding industrial applications. The valve is equipped with RF (Raised Face) flanged ends for secure and reliable connections
- Model No.: VPSK-20250606-CV-02
- Hits: 22
- Categories: Check Valves
- Tags: Swing Check Valve , ASTM A351 CF3M Check Valve , 10 Inch Check Valve
Detail Information
Product Name: ASTM A351 CF3M Swing Check Valve
Design Standard: API 6D
Body Material: ASTM A351 CF3M
Size: 10 Inch, DN250
Pressure Rating: Class 600 LB, PN100
End Connection: RF Flanged
Medium: Oil, Water
Standards
Design & Manufacturing: API 6D, API 594
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598, API 6D
Face to Face: ASME B16.10, API 6D
Flanged End: ASME B16.5
