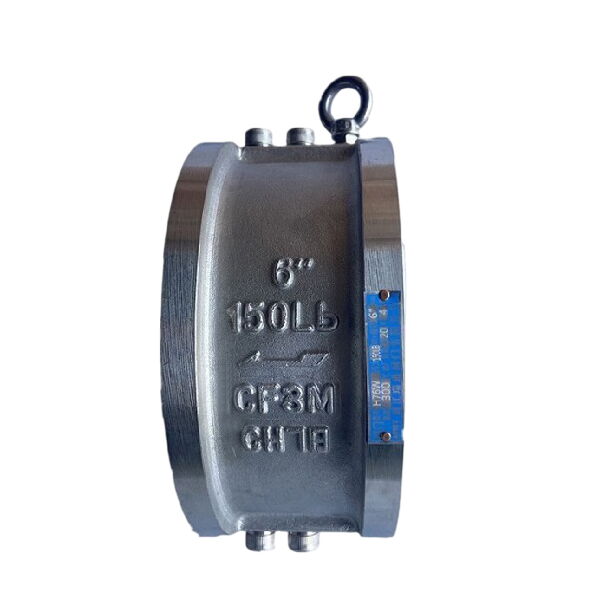

ASTM A351 CF3M Wafer Check Valve, API 594, 6 Inch, CL150 LB
Key Specifications / Features
The ASTM A351 CF3M Wafer Check Valve Factory produces high-performance Dual Plate Check Valves designed to meet the API 594 standard. These valves feature a cast stainless steel body, ensuring durability and corrosion resistance. With a nominal diameter of DN150 (equivalent to 6 inches) and a pressure rating of Class 150 LB or PN20, they are suitable for a wide range of industrial applications. The wafer ends provide a compact and space-saving design, making them easy to install in piping systems.
- Model No.: VPSK-20250606-CV-01
- Hits: 23
- Categories: Check Valves
- Tags: ASTM A351 CF3M Check Valve , Dual Plate Check Valve , 6 Inch Check Valve
Detail Information
Product Name: ASTM A351 CF3M Wafer Check Valve, Dual Plate
Type: Wafer Check Valve
Design Standard: API 594
Body Material: ASTM A351 CF3M
Size: 6 Inch, DN150
Pressure Rating: Class 150 LB, PN20
End Connection: Wafer
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C
Standards
Design & Manufacturing: API 6D, API 594, BS 1868
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598, GB/T 13927
Face to Face: ASME B16.10, GB/T 12221
