ASTM A351 CF8C Check Valve, BS 1868, 12 Inch, CL600, RTJ, BB
Key Specifications / Features

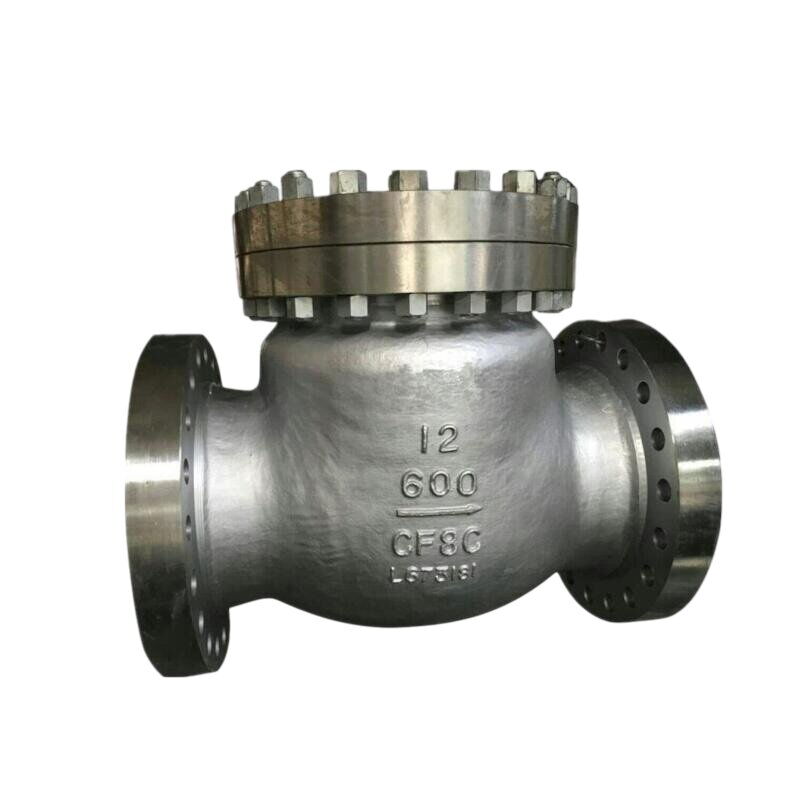

The ASTM A351 CF8C Check Valve is a swing check valve engineered for high-pressure applications, featuring a cast stainless steel body for enhanced corrosion resistance and durability. With a 12-inch (DN300) size and a Class 600 LB pressure rating, this valve is designed to handle demanding conditions efficiently. It complies with BS 1868 standards and includes a bolted bonnet and ring-type joint (RTJ) for secure sealing. Suitable for various industrial systems, it offers reliable backflow prevention and long-lasting performance.
- Model No.: VPSK-20250508-CV-02
- Hits: 16
- Categories: Check Valves
- Tags: ASTM A351 CF8C Check Valve , BS 1868 Check Valve , 12 Inch Check Valve
Detail Information
Product Name: ASTM A351 CF8C Check Valve
Type: Swing Check Valve
Design Standard: BS 1868
Body Material: ASTM A351 CF8C
Size: 12 Inch, DN300
Pressure Rating: Class 600 LB, PN100
End Connection: RTJ
Medium: Water, Natural Gas, Oil, etc
Temperature Range: -29°C to 400°C
Standards
Design & Manufacturing: BS 1868, ASME B16.34
Face to Face: ASME B16.10
Test & Inspection: API 598
Flanged End: ASME B16.5
