Key Specifications / Features

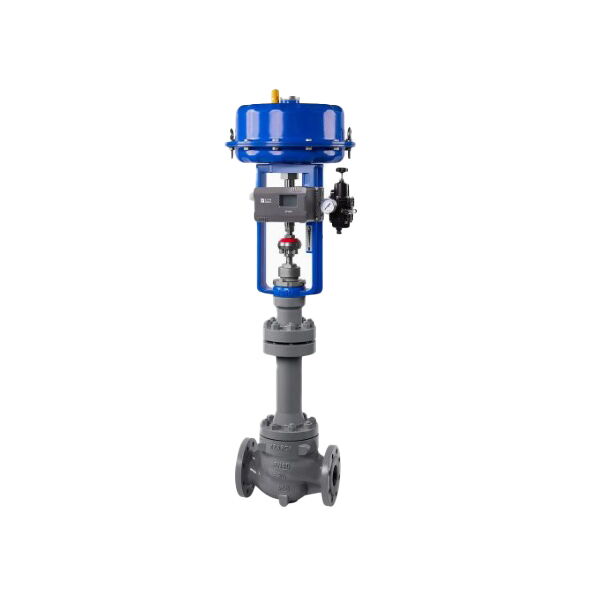

The Bellows Sealed Control Valve Supplier offers a single-seated globe control valve with a carbon steel ASTM A216 WCB body. These valves have a DN40 (1-1/2 inch) size and a pressure rating of PN25 (Class 300 LB), making them suitable for high-pressure applications. The valves are designed with RF flanged ends for easy installation and compatibility with existing piping systems. The bellow seal provides enhanced leak prevention and reliability, while the pneumatic operation ensures precise control and responsiveness.
- Model no.: VPSK-20250716-CTV-03
- Hits: 2
- Categories: Control Valves
- Tags: Bellows Sealed Control Valve , Pneumatic Control Valve , ASTM A216 WCB Control Valve
Detail Information
Product Name: Bellows Sealed Control Valve, Single Seated
Valve Type: Globe Control Valve
Body Material: ASTM A216 WCB (Options: ASTM A351 CF3, CF8)
Packing Material: PTFE, Flexible Graphite
Size: DN40, 1-1/2 Inch (1/2-12 Inches)
Pressure Rating: PN25, Class 300 LB (PN16-PN63)
End Connection: RF Flanged
Operation: Pneumatic Actuator
Temperature Range: -17°C to 350°C
Medium: Gas, Oil, Water
Flange Standard: ASME B16.5
Leakage Standard: ANSI B16.104 Class IV
Flow Characteristics: Linear, Equal Percentage, Quick Opening
