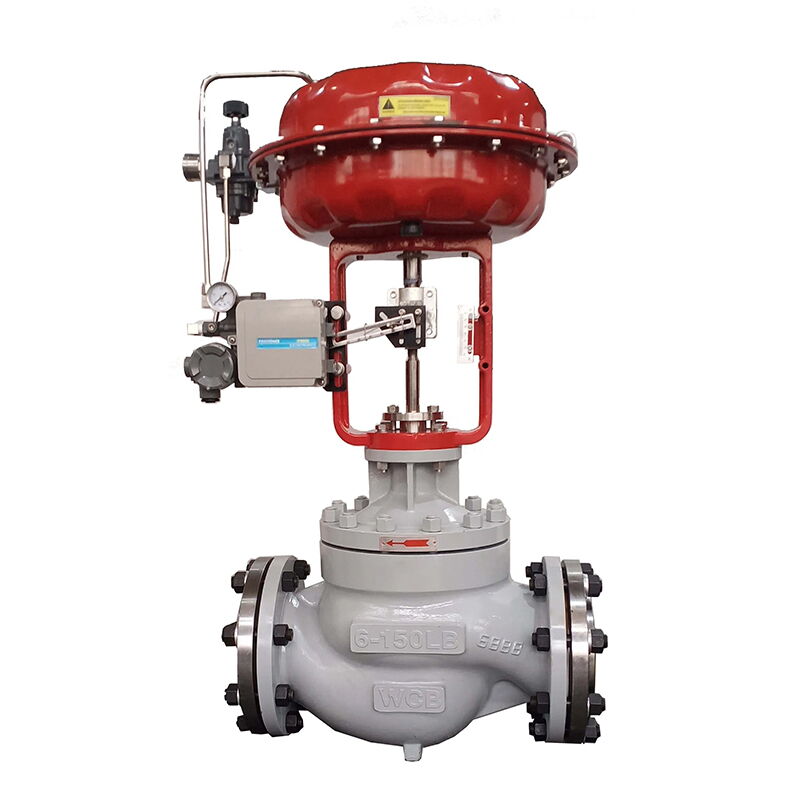

Pneumatic Control Valve, ASTM A216 WCB, 6 Inch, 150 LB, RF
Key Specifications / Features
- Model No.: VPSK-20250417-CTV-01
- Hits: 9
- Categories: Control Valves
- Tags: Pneumatic Control Valve , ASTM A216 WCB Control Valve , Single Seated Control Valve
Detail Information
Product Name: Pneumatic Control Valve
Body Material: ASTM A216 WCB
Size: 6 Inch, DN150
Pressure Rating: Class 150 LB, PN20
End Connection: RF Flanged
Face-to-face Dimensions: IEC 60534-3-2
Operation: Pneumatic Actuator
Key Features: Pressure Balanced, Cage Guided, Single Seat
Features
Heavy-Duty Ready: Built for demanding and severe service conditions.
High Pressure Drop: Manages high differentials without limits.
Stable Performance: Large guiding areas ensure plug stability.
Flexible Flow Control: Multiple reduced-capacity trims support wide-range operation.
Noise Control: Low-noise single-stage trims for gas and steam.
Cavitation Protection: Optional multistage trims for liquid services.
Smaller Actuators: Balanced plug reduces thrust and actuator size.
Tight Shut-Off: Piloted plug design achieves Class V shut-off, even in high temps.
Versatile Use: Handles a wide range of applications, including high temperature, corrosive fluids, and sour service.
