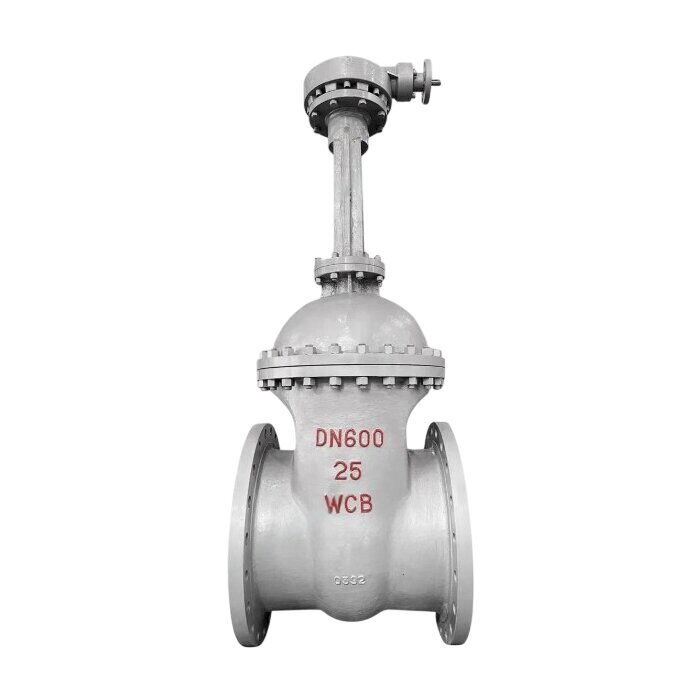

EN 10434 Wedge Gate Valve, A216 WCB, DN600, PN25, 24 IN, RF
Key Specifications / Features
The EN 10434 Wedge Gate Valve features a carbon steel ASTM A216 WCB body with a durable 13Cr trim, designed for low fugitive emissions. Sized at DN600 (24 inch) and rated PN25/Class 300 LB, it comes with raised face (RF) flanged ends for secure installation. Engineered for reliable shutoff and performance, this valve is ideal for demanding industrial flow control applications.
- Model No.: VPSK-20250423-LEV-02
- Hits: 17
- Categories: Low Emission Valves
- Tags: ASTM A216 WCB Gate Valve , Wedge Gate Valve , EN 10434 Gate Valve
Detail Information
Product Name: EN 10434 Wedge Gate Valve
Type: Wedge Gate Valve
Design Standards: EN 10434
Body Material: ASTM A216 WCB
Trim Material: 13cr
Size Range: DN600, 24 Inch
Pressure Rating: PN25, Class 300 LB
End Connections: RF Flanged
Standards
Testing & Inspection: EN 12266-1
Flanged End: EN 1092-1
Face to Face Dimensions: EN 558-1
Packing Materials: Graphite
Low Fugitive Emission: ISO 15848-1
