Key Specifications / Features

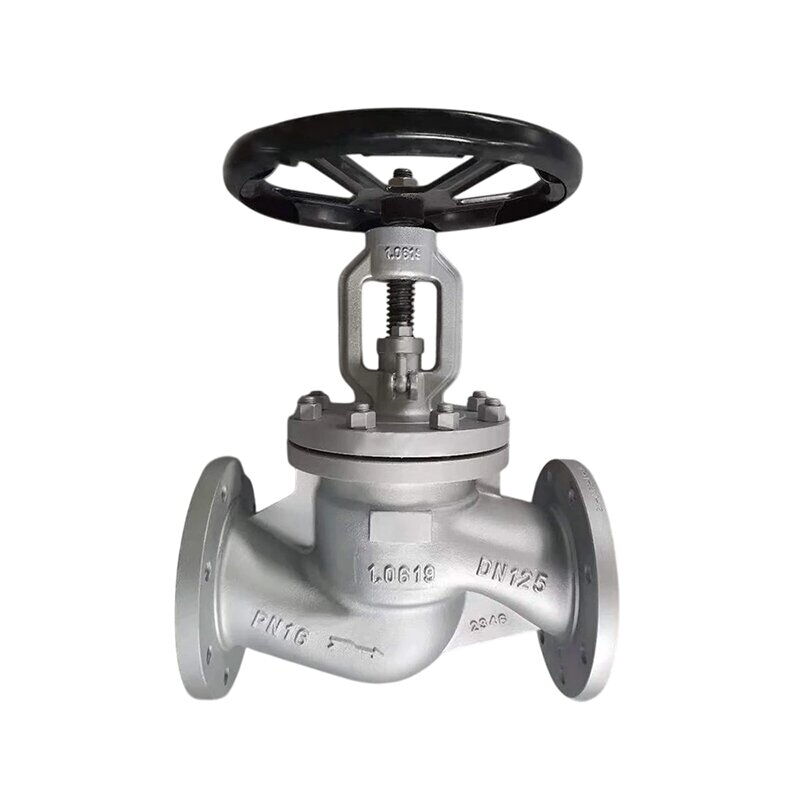

The EN 1.0619 Globe Valve is manufactured to DIN 3356, EN 13709, and BS 1873 standards, offering precise flow control and low fugitive emissions in compliance with ISO 15848-1. Built with a robust carbon steel body, it features RF flanged ends, a DN125 (5 inch) size, PN16 pressure rating, and Class 150 LB. This valve is ideal for industrial systems requiring reliable regulation and tight sealing under moderate pressure conditions.
- Model no.: VPSK-20250423-LEV-03
- Hits: 0
- Categories: Low Emission Valves
- Tags: EN 1.0619 Globe Valve , EN 13709 Globe Valve , DIN 3356 Globe Valve
Detail Information
Product Name: EN 1.0619 Globe Valve
Design Standards: BS 1873, DIN 3356, EN 13709
Body Material: EN 1.0619
Size Range: DN125, 5 Inch
Pressure Rating: PN16, Class 150 LB
End Connections: RF Flanged
Standards
Testing & Inspection: DIN 3230, EN 12266
Flanged End: DIN 2543-DIN 2547, EN 1092
Face to Face Dimensions: DIN 3202, EN 558-1
Packing Materials: Graphite/PTFE
Low Fugitive Emission: ISO 15848-1
Medium: Water, Oil, Gas, etc.
Temperature Range: -29°C to 425°C
