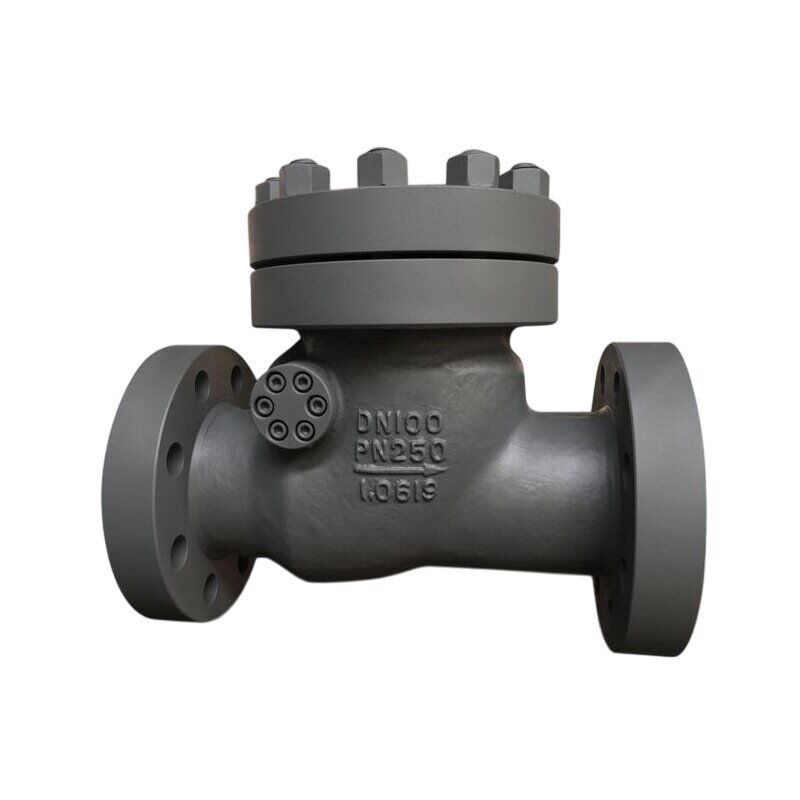

EN 1.0619 Check Valve, BS 1868, DN100, PN250, Full Port, RF
Key Specifications / Features
This Swing Check Valve, manufactured with EN 1.0619 cast carbon steel, is a low-emission, full-port design built to BS 1868 standards. Sized at DN100 (4 inch) and rated for PN250 pressure, it is engineered for high-performance flow reversal protection in demanding systems. The valve meets fugitive emissions requirements per ISO 15848-1, ensuring environmental compliance and leak-tight integrity. With RF flanged ends for reliable connections.
- Model No.: VPSK-20250424-LEV-01
- Hits: 12
- Categories: Low Emission Valves
- Tags: Low-E Check Valve , Swing Check Valve , EN 1.0619 Check Valve
Detail Information
Product Name: EN 1.0619 Swing Check Valve
Type: Swing Check Valve
Port: Full Port
Design Standard: BS 1868
Body Material: EN 1.0619
Size: DN100, 4 Inch
Pressure Rating: PN250, Class 1500 LB
Test & Inspection: DIN 3230, EN 12569
Flange End: DIN EN 1092-1
Face to Face: DIN 3202
Fugitive Emissions: ISO 15848-1, API 622
End Connection: RF Flanged
