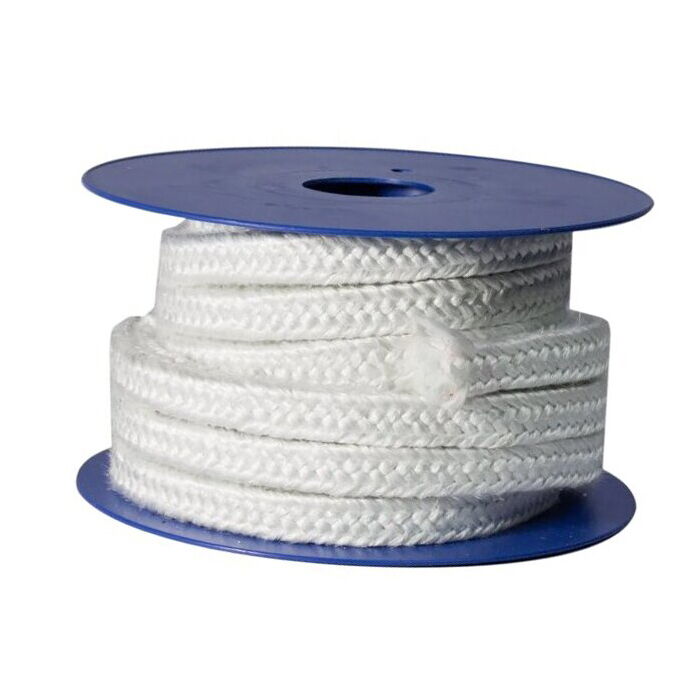

Glass Fiber Valve Packing, API 622, 80 Bar, PTFE Impregnated
Key Specifications / Features
The China Glass Fiber Valve Packing Supplier offers high-quality packing materials designed for superior sealing performance. These E-glass fiber valve packings are impregnated with PTFE, ensuring excellent chemical resistance and durability. Compliant with API 622 standards, they are available in sizes ranging from 3 to 50 mm, suitable for various valve applications. With a pressure rating of up to 80 bar and a density of 0.75-1.25 g/cm³, these packings provide reliable sealing under demanding conditions, making them ideal for industrial use.
- Model No.: VPSK-20250519-VP-01
- Hits: 23
- Categories: Valve Packing
- Tags: PTFE Impregnated Valve Packing , Glass Fiber Valve Packing , 80 Bar Valve Packing
Detail Information
Product Name: Glass Fiber Valve Packing, PTFE Impregnated
Main Material: E-glass Fiber
Size: 3-50 mm
Pressure: 80 Bar
Density: 0.75-1.25 g/cm3
Certificates: TA-Luft, ISO 15848-1, API 622
pH: 5-9
Temperature Range: –100°C to 600°C
Medium: Water, Steam, Air, Oil, ect.
Applications: Power Stations, Refineries & Petrochemical Industry, Chemical Processing, ect.
Features of Glass Fiber Packing
Asbestos-Free Design: Made from high-quality E-glass fiber, offering a safe and effective alternative to traditional asbestos packing.
PTFE Impregnation: Enhances chemical resistance and sealing performance for a wide range of applications.
High Strength: Maintains structural integrity under demanding operating conditions.
Excellent Heat Resistance: Suitable for high-temperature environments due to its thermal stability.
Low Thermal Conductivity: Minimizes heat transfer, making it ideal for insulation and thermal control.
Good Electrical Insulation: Provides reliable non-conductive properties in electrical and thermal applications.
Non-Ignitable: Resists combustion, ensuring added safety in high-temperature systems.
Versatile Options Available: Offered in plain (non-impregnated), PTFE-impregnated, and graphite-impregnated versions to meet diverse application needs.
