A Comprehensive Guide to Spiral Wound Metal Gaskets

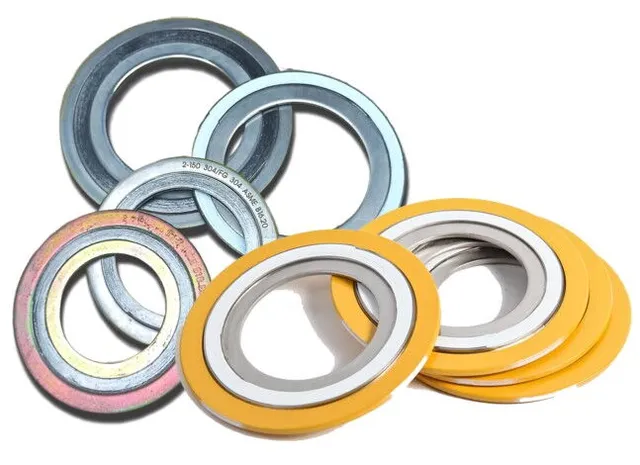

Spiral wound metal gaskets are widely used sealing components, especially in extreme conditions such as high temperatures, high pressures, and aggressive chemical environments. Their primary function is to effectively prevent leaks of gases and liquids, ensuring that equipment operates efficiently. Spiral wound metal gaskets are semi-metallic seals made by spirally winding metal strips and non-metallic strips, offering a combination of strength, flexibility, and sealing performance. Due to their outstanding sealing properties and broad range of applications, these gaskets are commonly employed in industries such as petrochemical, chemical, power, and metallurgy. This article delves into the structure, performance characteristics, application areas, selection guidelines, and installation requirements of spiral wound metal gaskets, providing a comprehensive overview of this crucial sealing component.

Spiral wound metal gaskets, as the name implies, are sealing elements made by alternately winding metal strips and non-metallic strips in a spiral pattern. The metal strips provide rigidity and strength, while the non-metallic strips offer excellent elasticity and sealing capability. These gaskets are ideal for applications requiring high-temperature and high-pressure sealing, making them especially suitable for sealing flanged connections, pipeline joints, pressure vessels, and other critical equipment in various industrial settings.

The primary feature of a spiral wound metal gasket is its composite structure. The selection of metal strips depends on the specific requirements of the working environment, with materials such as stainless steel, copper, and aluminum alloys being commonly used. The non-metallic strips are usually made from materials like graphite or PTFE (polytetrafluoroethylene), which offer excellent high-temperature resistance and corrosion resistance. Through precise manufacturing processes, spiral wound metal gaskets can maintain exceptional sealing performance even under extreme conditions, effectively preventing medium leakage.

The core components of a spiral wound metal gasket are the metal and non-metal strips that are wound alternately to form a spiral structure. The metal strips are typically made from high-temperature-resistant and corrosion-resistant metals such as stainless steel, aluminum, copper, or nickel alloys. Non-metallic strips are often made of flexible materials like graphite, asbestos, or PTFE.A typical spiral wound metal gasket consists of several key components.

The metal strips are the core of the gasket and are typically made from high-strength and high-toughness materials such as stainless steel (e.g., SUS304, SUS316). The purpose of the metal strips is to enhance the gasket's rigidity, allowing it to maintain stable sealing performance in high-temperature and high-pressure environments. The metal strips can be formed into different shapes, such as "V" shapes, spiral configurations, or "W" shapes. These designs help to improve the gasket's sealing ability and enhance its resilience.

The non-metallic strips are typically flexible materials that provide the gasket's sealing function. Common materials for the non-metallic strips include graphite, PTFE, and asbestos. Graphite is widely used in spiral wound metal gaskets due to its high-temperature resistance and excellent chemical stability. PTFE, on the other hand, has excellent chemical corrosion resistance, making it suitable for applications with aggressive chemical media.

To enhance the stability and compressive strength of the gasket, spiral wound metal gaskets are often equipped with inner and outer reinforcing rings. These rings are designed to prevent the gasket from deforming or collapsing under high pressure, ensuring that the gasket maintains its sealing performance. These reinforcing rings are usually made from metals such as stainless steel and offer excellent pressure resistance.

The manufacturing process of spiral wound metal gaskets is relatively complex and requires precise equipment and stringent process control. The main steps in the production process are as follows.

The metal and non-metal strips are first cut to the required width and length according to the design specifications. After cutting, the strips must be free from burrs and deformations to ensure proper winding.

The metal and non-metal strips are then spirally wound together in an alternating pattern to form the gasket. It is important to control the tightness and angle of the winding during this process to ensure the metal and non-metal strips fit together perfectly, forming a spiral structure.

After the winding process, the gasket is typically pressed using a press machine to increase its stability and sealing performance. In some cases, the ends of the metal strips are welded together to ensure the metal strips do not loosen.

Once the gasket is completed, it undergoes rigorous quality control. This includes visual inspection of the gasket's appearance, testing its sealing performance, and analyzing the material composition to ensure the gasket meets the required standards.

Spiral wound metal gaskets offer several notable performance advantages, making them the ideal sealing material for high-temperature and high-pressure environments. Below are the key performance characteristics of spiral wound metal gaskets.

The metal strips in spiral wound metal gaskets can withstand extremely high temperatures. Spiral wound metal gaskets made from high-temperature metals such as stainless steel and copper can function in environments exceeding 500°C. Additionally, the non-metallic strips, such as graphite, also possess excellent high-temperature resistance, maintaining their flexibility and sealing capability under extreme conditions.

The structural design of the metal strips allows spiral wound metal gaskets to effectively transmit pressure in high-pressure environments, preventing the gasket from deforming or failing. The sealing performance of these gaskets is not affected by pressure fluctuations, making them highly effective in high-pressure applications.

Spiral wound metal gaskets are capable of sealing a variety of corrosive media. By choosing appropriate materials for the metal and non-metal strips, such as stainless steel or aluminum alloys for the metal strips and graphite or PTFE for the non-metallic strips, the gasket's resistance to corrosion is significantly improved. Spiral wound metal gaskets can resist corrosion from strong acids, alkalis, and organic solvents, thereby extending their service life.

Spiral wound metal gaskets provide outstanding sealing performance for both static and dynamic sealing applications. They effectively seal flange connections, preventing fluid leakage. Especially in environments with temperature and pressure fluctuations, the gasket's resilience helps maintain sealing integrity and prevent seal failure.

Installing a spiral wound metal gasket is straightforward. Simply place it between the flanged connection and tighten the bolts. The gasket does not require any special tools for installation, and it adapts well to uneven flange surfaces, ensuring effective sealing.

When selecting a spiral wound metal gasket, it is important to consider the working temperature, pressure, and the type of medium. The following selection and installation guidelines should be followed:

Working Temperature and Pressure: When choosing the material for the metal and non-metal strips, it is essential to consider the temperature and pressure requirements of the application. Ensure that the gasket can function stably under these conditions.

Type of Medium: Different media exhibit varying levels of corrosiveness and aggressiveness, so it is necessary to select materials with good corrosion resistance to ensure that the gasket can maintain its sealing function in chemically corrosive environments.

Flange Surface Requirements: The surface finish and smoothness of the flange directly affect the gasket's sealing performance. Spiral wound metal gaskets can adapt to uneven flange surfaces, but it is still important to ensure that the flange surfaces are clean and smooth.

Flange Surface Preparation: Before installing the spiral wound metal gasket, ensure that the flange surfaces are clean and free from contaminants to avoid any impact on the sealing effect.

Even Tightening: When installing the gasket, ensure that the bolts are tightened evenly to prevent excessive or insufficient pressure on the gasket. This ensures uniform pressure distribution and optimal sealing performance.

Appropriate Pre-tightening Force: Set the correct pre-tightening force based on the material and size of the spiral wound metal gasket to ensure the gasket is properly compressed, preventing leaks.

Over time, spiral wound metal gaskets may experience wear and deformation, which could compromise their sealing ability. Regular inspection and maintenance are crucial to ensuring the gasket's continued performance.

Regular Inspections: Periodically check the appearance of the spiral wound metal gasket for any cracks, wear, or corrosion. Gaskets used in high-temperature and high-pressure environments should be regularly tested for sealing performance.

Inspecting the Flange Surface: When replacing a spiral wound metal gasket, check the smoothness and roughness of the flange surface to ensure that the new gasket will seal properly.

Selecting the Right Gasket: Choose the appropriate spiral wound metal gasket based on the new operating conditions to ensure it is suited to the current requirements.

Spiral wound metal gaskets are high-performance sealing materials that, due to their excellent high-temperature, high-pressure, and corrosion-resistant properties, are widely used across various industries. Whether in petrochemical, power, metallurgy, or even food, pharmaceutical, and shipbuilding sectors, spiral wound metal gaskets effectively address sealing issues, ensuring the safe operation of equipment. Choosing the right material, specifications, and installation methods is critical to ensuring the gasket's sealing performance and prolonging its service life. In practical applications, careful attention to gasket selection, installation, and maintenance is essential to ensure the optimal sealing effect.
