Flexible Graphite Braided Packing: Efficient Sealing Solution

In modern industrial production, fluid sealing is a critical aspect of ensuring equipment operates reliably while preventing leaks. Whether in high-pressure pipelines, chemical reactors, steam systems, or cryogenic machinery, the integrity of the seal directly affects both safety and operational efficiency. Over the years, technological advancements have given rise to flexible graphite braided packing made from natural graphite, a material that combines resilience, chemical stability, and thermal resistance. With its unique properties and broad application potential, flexible graphite braided packing has quickly gained prominence in the field of industrial sealing.

This article provides an in-depth exploration of the production process, performance characteristics, application advantages, and different braiding forms of flexible graphite braided packing. It aims to serve as a comprehensive and practical reference for engineers, maintenance professionals, and procurement specialists in various industries.

The production of flexible graphite braided packing begins with careful selection of natural graphite. The quality of the graphite directly determines the performance and reliability of the final packing. High-purity graphite is essential to achieve consistent sealing performance, as impurities can compromise thermal stability and chemical resistance.

Once the graphite is selected, it undergoes acid treatment, a critical step to remove residual impurities and increase purity. This process ensures the material is chemically clean and ready for subsequent expansion. Following acid treatment, the graphite is subjected to a high-temperature expansion process, which transforms it into flexible graphite. During expansion, the graphite layers are separated, resulting in a soft, elastic structure with excellent compressibility and resilience.

Flexible graphite can be processed further into various sealing components, such as rings, ropes, and braided packing. However, flexible graphite alone has certain limitations, including low tensile strength and brittleness, which can restrict its use in high-stress applications. To overcome these challenges, engineers have developed composite braided structures, combining flexible graphite with other reinforcing fibers. The resulting braided packing retains the inherent benefits of graphite, high-temperature and low-temperature performance, chemical inertness, and excellent thermal conductivity, while improving strength, flexibility, and durability.

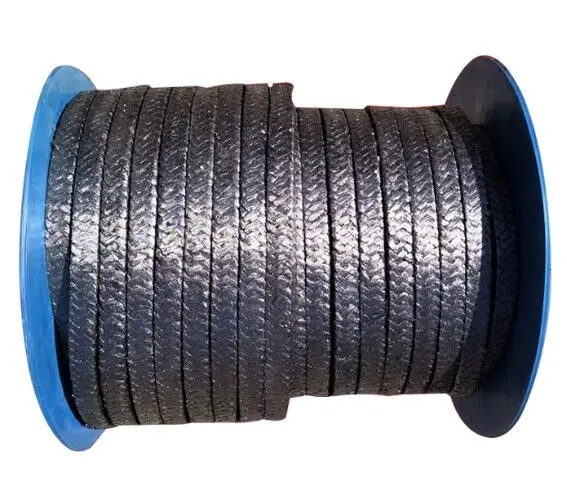

This braided structure also provides practical flexibility for users. Packing ropes can be cut to fit the specific dimensions of the packing gland, making installation easier and ensuring optimal sealing performance across different equipment types.

Flexible graphite braided packing is widely adopted due to a set of superior properties that make it ideal for challenging industrial conditions.

Flexible graphite remains stable across a wide temperature range. In oxygen-free environments, it can withstand temperatures exceeding 1000°C without degradation. Unlike other materials, it does not dehydrate, oxidize, melt, decompose, or adhere to mating surfaces. This makes it highly suitable for high-temperature, high-pressure applications such as steam valves, reactors, and furnace equipment.

In oxygen-rich environments, oxidation begins above 450°C, producing CO or CO₂. Despite this limitation, flexible graphite excels in cryogenic applications, remaining soft, elastic, and self-lubricating even at -250°C. This combination of high- and low-temperature performance makes it one of the most versatile sealing materials available.

Graphite is chemically inert and resistant to acids, bases, salts, and most organic solvents. This property ensures that flexible graphite braided packing performs reliably in chemically aggressive environments, including chemical processing plants, petrochemical pipelines, and solvent-handling equipment. By minimizing chemical degradation, the material extends seal life and reduces the frequency and cost of maintenance.

The structure of flexible graphite includes micro-pores that undergo elastic and plastic deformation under pressure. This characteristic allows the packing to conform tightly to mating surfaces, compensating for roughness or minor misalignments. The packing maintains a consistent sealing pressure, ensuring long-term, reliable sealing. Consequently, equipment experiences fewer leaks, operational stability improves, and service life is extended.

When combined with reinforcing fibers and woven into a braided structure, flexible graphite packing achieves compressive strengths of up to 20 MPa, three to four times that of pure flexible graphite. This makes it resistant to breakage, chipping, or deformation during installation and operation. The braided construction also allows multidirectional deformation, facilitating installation in irregular or challenging gland shapes.

Graphite has a high thermal conductivity of 119 kcal/m·h·°C, far superior to traditional asbestos packing (0.2 kcal/m·h·°C). In high-speed rotating equipment, this allows the packing to dissipate frictional heat effectively, preventing overheating and thermal damage. Its self-lubricating properties reduce wear on mating surfaces, lower torque requirements, minimize energy consumption, and extend equipment life. These features contribute significantly to operational efficiency and cost savings.

To meet the needs of different equipment types and operating conditions, flexible graphite braided packing is produced in various braiding forms, each with distinct characteristics and applications:

Layered braiding uses multiple spindles (e.g., 8, 12, 16, 24, 36, 48, or 60) on two tracks, typically woven 1×1 without a core. It provides high density and strong sealing but lacks interlayer fiber connections, which can result in delamination under mechanical stress. Therefore, it is most suitable for static seals or low-speed rotating equipment.

Braid braiding employs eight spindles on two tracks to produce a square cross-section with no core at corners or the center. This structure is slightly loose, allowing it to compensate for shaft vibrations and eccentricity, making it ideal for small cross-sections. Larger cross-sections may result in rough surfaces and reduced density, potentially affecting sealing effectiveness.

Through-core braiding uses multiple spindles on three or four tracks to produce a square cross-section with flat surfaces, high elasticity, wear resistance, and strength. The larger, more uniform contact area with the shaft and smaller fiber gaps result in better sealing and longer service life compared to braid braiding. It is widely used in applications requiring high sealing reliability, such as pumps, valves, and chemical reactors.

Sandwich braiding incorporates a rubber or metal core wrapped in fiber layers, providing good density, strength, and flexibility. While similar to layered braiding, the surface layers may peel after wear. This braiding type is commonly used for pumps and valves but rarely in reciprocating equipment.

Expanded graphite braided packing, made from through-core braided flexible graphite yarn, offers excellent self-lubrication, thermal conductivity, low friction, and high strength. Reinforcements with carbon fiber, stainless steel (304/316L), or nickel alloys (e.g., Inconel) can enhance performance. Production on multi-spindle, multi-track machines ensures durability, smooth surfaces, and effective sealing with reduced packing compression.

Flexible graphite braided packing achieves superior sealing performance through two main mechanisms:

Bearing Effect: Tension between the packing and shaft forms a thin liquid film, acting like a sliding bearing. This reduces wear, prolongs equipment life, improves efficiency, and minimizes maintenance requirements.

Maze Effect: Microscopic irregularities on the shaft surface create tiny gaps between the packing and shaft, forming a labyrinth for fluid flow. The medium is throttled multiple times within this maze, providing effective sealing even with minor surface imperfections. This enhances adaptability and reliability, particularly under harsh operating conditions.

Flexible graphite braided packing offers significant advantages across diverse industries.

Broad Applicability: It can seal a wide range of media, including water, steam, oils, acids, bases, and salts, in high- or low-temperature and pressure conditions. Industries such as petrochemical, power generation, metallurgy, machinery, shipbuilding, and aerospace rely on it for critical sealing applications.

Improved Operational Efficiency: Self-lubrication and high thermal conductivity reduce friction and energy consumption. Superior sealing prevents leaks, avoiding downtime and enhancing operational efficiency.

Lower Maintenance Costs: High strength, chemical stability, and thermal resilience reduce maintenance frequency, minimizing labor and material costs. Long-lasting sealing also contributes to overall cost savings over the equipment lifecycle.

Ease of Installation: The rope-like braided structure allows flexible selection, cutting, and packing of glands, simplifying installation. This improves efficiency while reducing the risk of sealing failure due to improper installation.

Flexible graphite braided packing has become an essential modern sealing material due to its exceptional performance, versatility, and practical advantages. From its unique manufacturing process and multiple braiding structures to its sealing principles based on bearing and maze effects, it addresses the limitations of traditional sealing materials while meeting the high demands of modern industrial applications.

By offering reliable sealing, extending equipment life, improving operational efficiency, and reducing maintenance costs, flexible graphite braided packing provides a comprehensive solution for modern industrial sealing challenges. Its continued adoption across diverse industries underscores its role as a high-performance, cost-effective, and adaptable sealing material.
