Valve Seal Installation and Maintenance

Valve seals are critical components in valves, playing a crucial role in ensuring proper sealing, preventing fluid leakage, and maintaining the safety and reliability of the system during operation. Correct installation and maintenance of valve seals are essential for extending the valve's service life, improving operational efficiency, and ensuring the smooth functioning of fluid control systems. This article will comprehensively discuss the function, installation steps, precautions, common issues and their solutions, as well as how to perform regular maintenance and inspections on valve seals.

Valve seals are key components inside valves, located between the valve seat and valve disc, or between the valve stem and packing gland. Their primary role is to prevent fluid leakage, maintain system pressure stability, and ensure the integrity of the medium's seal. In various piping, pressure vessels, and fluid control systems, the sealing function of the valve is crucial, especially in environments with high temperature, high pressure, or corrosive media, where the role of the seal is especially significant.

Leak Prevention: The primary role of a valve seal is to prevent fluid leakage. When the valve is in a closed position, the seal ensures that no fluid leaks through the valve disc, seat, or packing gland. This not only maintains system stability and safety but also prevents resource wastage and environmental pollution.

Maintaining System Pressure and Temperature: In many high-pressure or high-temperature applications, the seal ensures that the valve operates normally in stringent working conditions, keeping pressure and temperature stable within the system. For example, in fields like petrochemical and natural gas, valve sealing performance is crucial for preventing fluid leakage under high-pressure conditions and ensuring the system's normal operation.

Extending Valve Life: A valve seal not only prevents leakage but also reduces the erosion and wear of other valve components by the medium. Through proper design and use, the seal can significantly extend the valve's service life, reducing maintenance costs.

The material of the valve seal is a critical factor in determining the sealing performance. Different materials can adapt to various working environments, offering different temperature, pressure, and chemical resistance properties. Common valve seal materials include:

Metal Seals: Metal seals have excellent high-temperature and high-pressure resistance, suitable for sealing requirements in extreme conditions. For example, in high-pressure fields like oil and gas, metal seals can withstand high pressure and temperature, ensuring the long-term stable operation of the valve.

Rubber Seals: Rubber seals are suitable for normal or medium-low temperature applications, commonly used with water, gas, and other general media. Rubber seals offer good elasticity and sealing properties, making them suitable for most industrial applications, especially in low-pressure environments.

PTFE Seals (Teflon): PTFE seals are widely used in corrosive media pipeline systems due to their excellent chemical stability and high-temperature resistance. PTFE seals can handle higher temperature ranges and resist corrosion from strong acids, alkalis, and other aggressive substances.

Composite Material Seals: Composite seals, made from combinations of metals and non-metals, offer excellent sealing performance and durability. They are suited for a variety of working environments, especially where both sealing effectiveness and durability are required.

Proper installation of the seal is essential for ensuring the valve's sealing effectiveness and the system's safety. Each step of the installation process requires careful attention to avoid seal failure or other malfunctions due to improper handling.

Select the Appropriate Seal Material: Choose the right material for the seal based on the system's fluid medium, pressure, temperature, and operating environment. For instance, a corrosion-resistant seal is required for chemical process pipelines, while high-temperature, high-pressure metal seals are needed for harsh environments.

Inspect the Seal Quality: Before installation, check the seal for damage, aging, deformation, or any other defects. Replace any defective seals immediately.

Clean the Valve and Sealing Area: Thoroughly clean the valve seat, valve disc, and sealing surfaces to remove impurities, oil, dust, or any substances that could affect the sealing performance.

Apply Lubricant: For rubber or PTFE seals, apply an appropriate lubricant to the surface of the seal before installation. This helps prevent damage during installation and maintains optimal sealing performance.

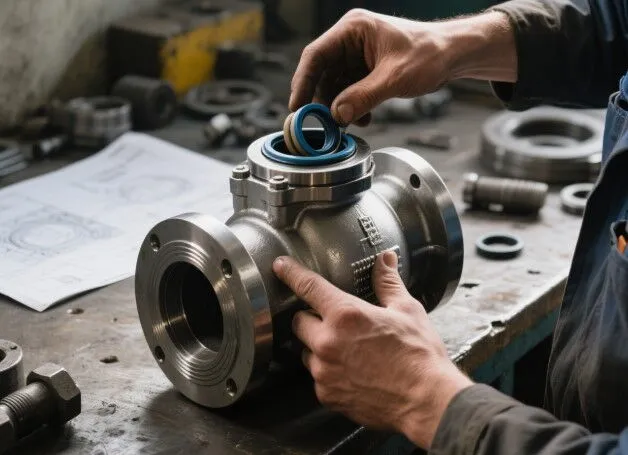

Position the Seal: Place the seal in the corresponding position between the valve seat and valve disc, ensuring that it fits snugly without wrinkles, misalignment, or deformation. If the seal is made of rubber or PTFE, you can manually adjust it into the correct position.

Avoid Over-compression: When installing, ensure that the seal is not over-compressed. Excessive compression can lead to the loss of elasticity, affecting the sealing performance. Typically, the seal should be compressed to about 70-80% of its original size to maintain sealing integrity without damaging the seal.

Step-by-Step Installation: Apply pressure gradually and evenly during installation to ensure the seal is uniformly stressed, avoiding localized over-stress that could damage the seal.

Secure the Valve Components: Once the seal is properly positioned, secure the valve components, including the valve seat, disc, and stem, ensuring a tight fit between all parts.

Visual Inspection: After installation, perform a visual check to ensure the seal is correctly positioned and not displaced or damaged.

Pressure Test: Conduct a pressure test on the valve to verify that the sealing performance is adequate. The test pressure is generally slightly higher than the normal working pressure to ensure the seal's integrity.

Leak Detection: Use soap water or other leak detection fluids to check for leaks. If any leaks are found, recheck the installation or replace the seal as needed.

Avoid Contamination: Prevent the seal from being contaminated during installation, especially by oil, dust, or other substances that could affect sealing performance.

Check Compatibility: Ensure that the selected seal matches the dimensions and material of the valve seat and disc. Incorrect material or dimensions can lead to poor installation and potential leaks.

Temperature Control: Avoid installing the seal in environments with extreme temperatures, as this can affect the elasticity and effectiveness of the seal.

Installation Direction: Some seals are directional and should be installed according to the design requirements to ensure proper sealing performance.

In practical use, valve seals may encounter several common issues. Identifying and addressing these issues promptly can significantly improve the valve's performance and extend its lifespan.

Cause: Seal aging, over-compression, improper installation, or valve wear may lead to poor sealing.

Solution: Inspect the seal for damage and reinstall or replace it as necessary. Check for valve seat and disc wear, and repair or replace them if needed.

Cause: Incorrect seal material selection, over-compression, or excessive temperature can cause cracking.

Solution: Ensure the seal is made from the appropriate material for the working conditions. Avoid excessive compression and ensure that the temperature and pressure are within acceptable ranges.

Cause: Incorrect seal size, improper installation, or valve seat wear can cause the seal to fall out.

Solution: Ensure the seal size matches, and the seal is securely installed. Inspect the valve seat for wear and replace it if necessary.

To ensure the long-term stable operation of the valve system, regular inspection and maintenance of the valve and seal are essential. Especially in high-pressure, high-temperature, or corrosive applications, seals can wear, age, or become damaged over time. Regular inspection and replacement of seals help avoid leakage issues caused by seal failure and ensure stable valve system operation.

Check Seal Wear: Periodically inspect the seal surface for signs of aging, cracks, or wear to ensure its sealing performance.

Examine Valve Seat and Disc: Ensure that the valve seat and disc are smooth and even. If wear or deformation is detected, repair or replace them immediately.

Monitor System Pressure and Temperature: Ensure that system pressure and temperature are within the normal range to prevent seal damage due to excessive conditions.

During regular checks, if any seal damage or aging is found, replace it promptly. When replacing, ensure that the new seal matches the original model and specifications to avoid failure due to material mismatches.

Valve seals play a vital role in the valve system by preventing fluid leakage, maintaining system pressure stability, and extending valve life. Proper installation, regular maintenance, and inspections are crucial for ensuring the long-term reliability of the seal. By understanding the seal's functions, selecting the right material, mastering the installation process, and addressing common issues, you can ensure the efficient and safe operation of the valve system, ultimately enhancing the stability and reliability of the entire fluid control system.
