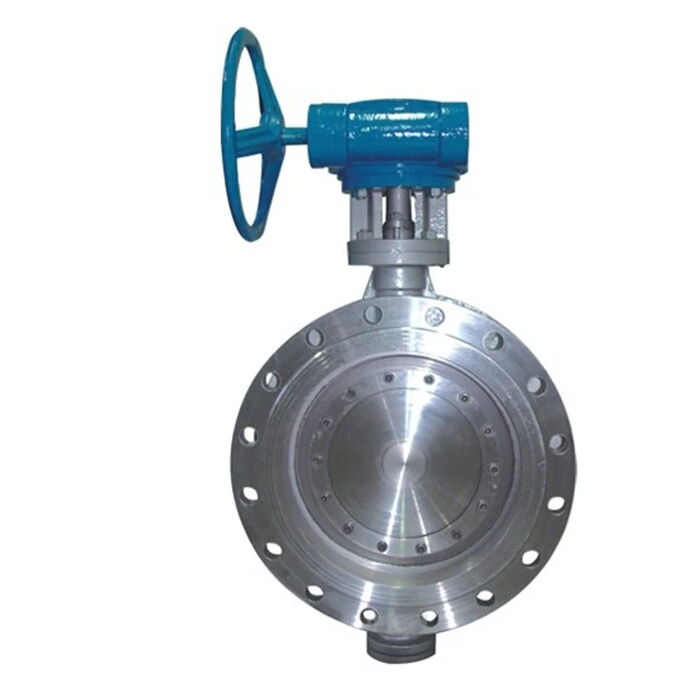

Triple Eccentric Butterfly Valve, API 609, A351 CF8, 20 Inch
Key Specifications / Features
This Triple Eccentric Butterfly Valve, supplied in compliance with API 609 and ASME B16.34, features a durable ASTM A351 CF8 stainless steel body and disc. Designed for high-performance flow control, it comes in a 20-inch (DN500) size with Class 150 LB / PN16 pressure ratings. The metal seated design ensures tight shutoff in demanding applications, while flanged ends provide secure, easy installation in industrial piping systems.
- Model No.: VPSK-20250418-BFV-01
- Hits: 12
- Categories: Butterfly Valves
- Tags: Triple Eccentric Butterfly Valve , API 609 Butterfly Valve , ASTM A351 CF8 Butterfly Valve
Detail Information
Product Name: Metal Seated Triple Eccentric Butterfly Valve
Design Standard: API 609, ASME B16.34
Body Material: ASTM A351 CF8
Size: 20 Inch, DN500
Pressure Rating: Class 150 LB, PN16
Disc Material: ASTM A351 CF8
Seal Material: SS 304
Mounting Flange Standard: ISO 5211
End Connection: Flanged
Operation: Gear Operator
Triple Eccentric Butterfly Valve Features
Zero Leakage: Ensures bi-directional, leak-free operation.
Replaceable Seat: Extends service life and simplifies maintenance.
Fire-Safe Design: Reliable in high-temperature conditions.
Locking Device (Optional): Adds security against unauthorized operation.
Anti-Fire: Withstands extreme heat.
Anti-Corrosion: Resists harsh chemicals and environments.
Abrasion-Resistant: Ensures long-lasting performance.
