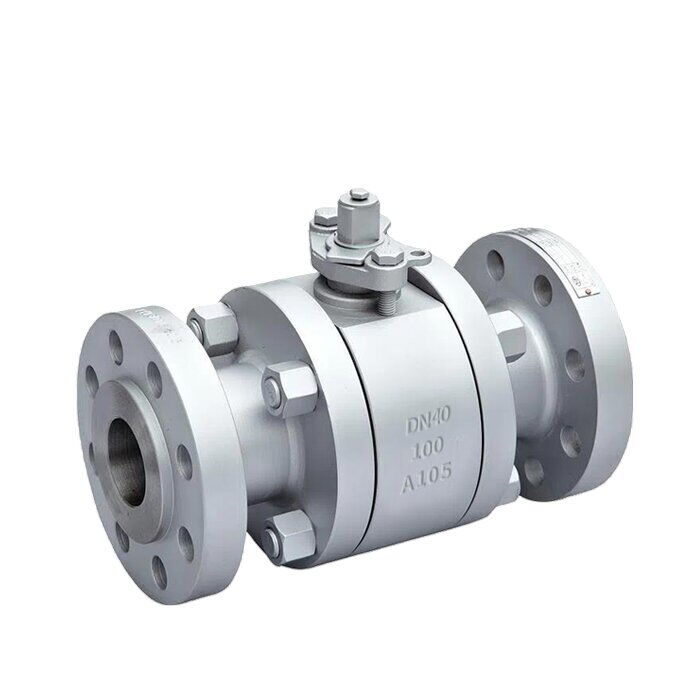

ASTM A105 Ball Valve, BS 5352, ANSI B16.34, DN40, PN100, RF
Key Specifications / Features
The ASTM A105 Floating Ball Valve is a high-performance valve designed for reliable flow control in industrial applications. Constructed with a durable carbon steel body, this metal-seated valve meets BS 5352 and ANSI B16.34 standards. With a 1-1/2 inch (DN40) size and Class 600 LB (PN100) pressure rating, it offers superior sealing and durability. Featuring RF flanged ends, it ensures secure connections.
- Model No.: VPSK-20250418-BAV-02
- Hits: 18
- Categories: Ball Valves
- Tags: BS 5352 Ball Valve , ASTM A105 Ball Valve , DN40 Ball Valve
Detail Information
Product Name: ASTM A105 Floating Ball Valve
Type: Floating Ball Valve
Design Standard: BS 5352, ANSI B16.34
Body Material: ASTM A105
Ball Material: ASTM A182 F304
Seat: Metal Seated
Size: DN40, 1-1/2 Inch
Pressure Rating: PN100, Class 600 LB
Face to Face: ASME B16.10
Test & Inspection: API 598
Flange End: ASME B16.5
End Connection: RF Flanged
Applicable Media: Water, Oil, Gas, etc
