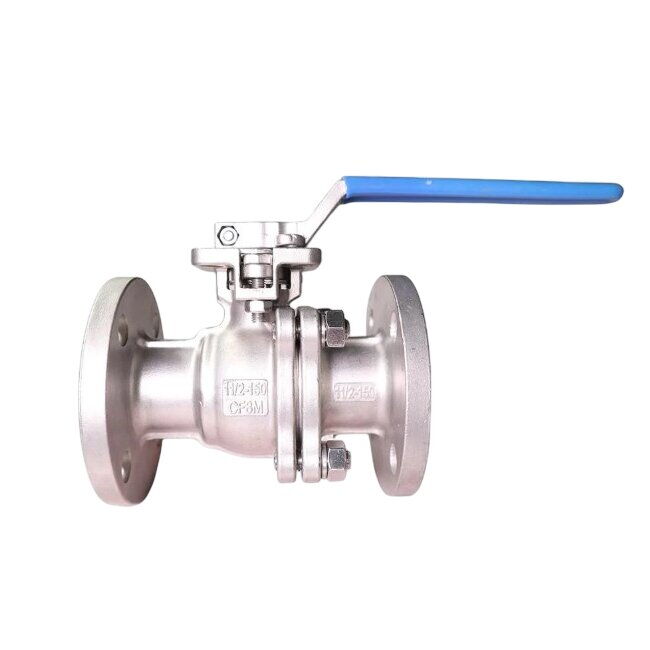

2 Piece Floating Ball Valve, API 6D, CF8M, 1-1/2 Inch, CL150
Key Specifications / Features
The 2-Piece Floating Ball Valve Plant is designed for reliable flow control in various industrial applications. Made from cast stainless steel (ASTM A351 CF8M), this valve features a 1-1/2 inch (DN40) size and is rated for Class 150 LB and PN20 pressure. It complies with API 6D standards, ensuring durability and performance. The lever-operated valve has RF flanged ends for secure connections, providing efficient and dependable shut-off in fluid systems.
- Model No.: VPSK-20250424-BAV-01
- Hits: 14
- Categories: Ball Valves
- Tags: ASTM A351 CF8M Ball Valve , 2 Piece Ball Valve , Floating Ball Valve
Detail Information
Product Name: 2 Piece Floating Ball Valve
Design Standard: API 6D
Body Material: ASTM A351 CF8M
Size: 1-1/2 Inch, DN40
Pressure Rating: Class 150 LB, PN20

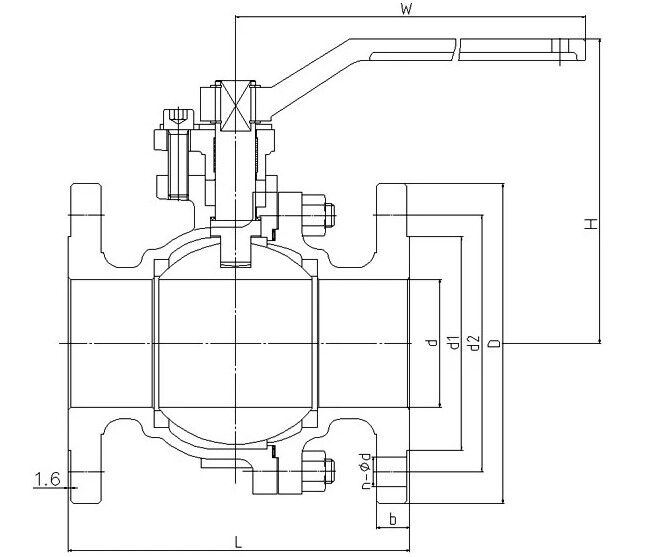

Face to Face: ANSI B16.10
Test & Inspection: API 598
Flange End: ANSI B16.5
End Connection: RF Flanged Ends
Operation: Lever
Applicable Media: Water, Oil, Gas, etc
