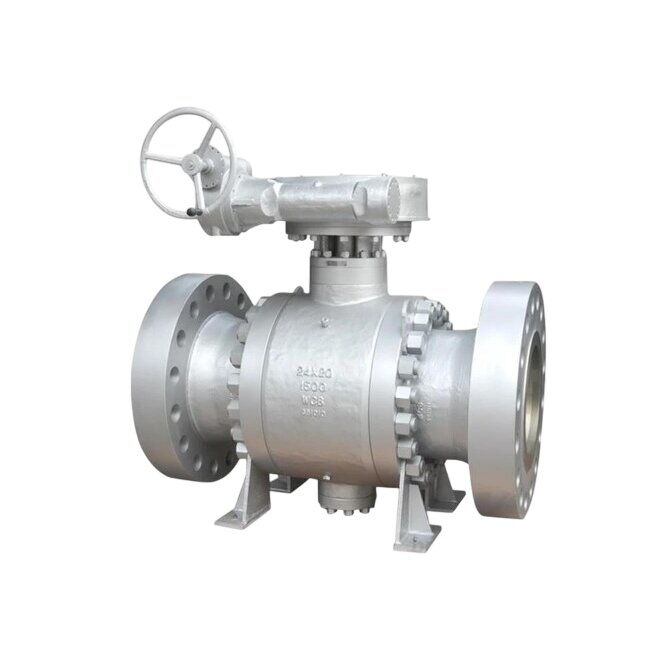

3 Piece Trunnion Ball Valve, API 6D, A216 WCB, 24 * 20 Inch
Key Specifications / Features
The 3-Piece Trunnion Mounted Ball Valve is built for high-performance and durability in demanding industrial systems. With a cast carbon steel body (ASTM A216 WCB), this valve features a large 24 * 20 inch (DN600*DN500) size and is rated for Class 1500 LB and PN250 pressure. It adheres to API 6D standards, ensuring reliable operation in high-pressure environments. The valve includes RF flanged ends for secure installation, and its trunnion-mounted design provides enhanced control and stability under heavy-duty applications.
- Model No.: VPSK-20250424-BAV-02
- Hits: 12
- Categories: Ball Valves
- Tags: ASTM A216 WCB Ball Valve , Trunnion Mounted Ball Valve , 3 Piece Ball Valve
Detail Information
Product Name: 3 Piece Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 24 * 20 Inch, DN600*DN500
Pressure Rating: Class 1500 LB, PN250
Face to Face: ANSI B16.10
Test & Inspection: API 598
Flange End: ANSI B16.5
End Connection: RF Flanged Ends
Operation: Wormgear
Applicable Media: Water, Oil, Gas, etc
