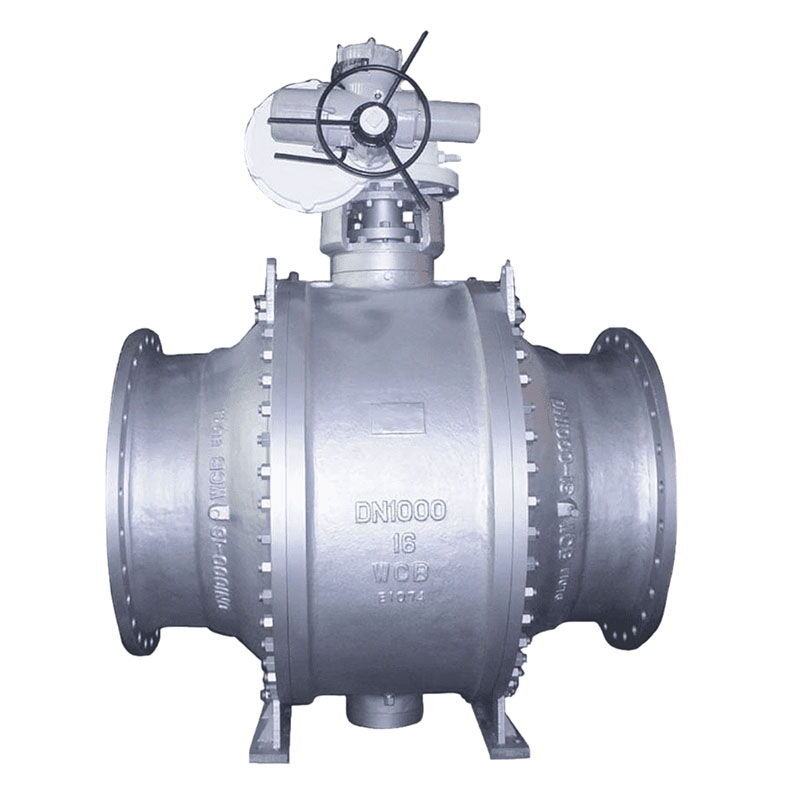

Electric Actuated Ball Valve, API 6D, A216 WCB, DN1000, PN16
Key Specifications / Features
The Electric Actuated Ball Valve Manufacturer produces high-quality ball valves designed in accordance with API 6D standards. These valves feature a carbon steel body made from ASTM A216 WCB, ensuring durability and strength. Available in a large DN1000 (40-inch) size with a PN16 (Class 150 LB) pressure rating, they are equipped with flanged ends for secure and reliable connections. The electric actuation provides precise control and automation capabilities.
- Model No.: VPSK-20250528-BAV-02
- Hits: 19
- Categories: Ball Valves
- Tags: Electric Actuated Ball Valve , ASTM A216 WCB Ball Valve , DN1000 Ball Valve
Detail Information
Product Name: Electric Actuated Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: DN1000, 40 Inch
Pressure Rating: PN16, Class 150 LB
End Connection: Flanged
Operation: Electric Actuator
Medium: Water, Oil, Gas, etc
Standards
Design & Manufacturing: API 6D
Face to Face: ASME B16.10
Test & Inspection: API 598
Flanged End: ASME B16.47
Pressure & Temperature: ASME B16.34
