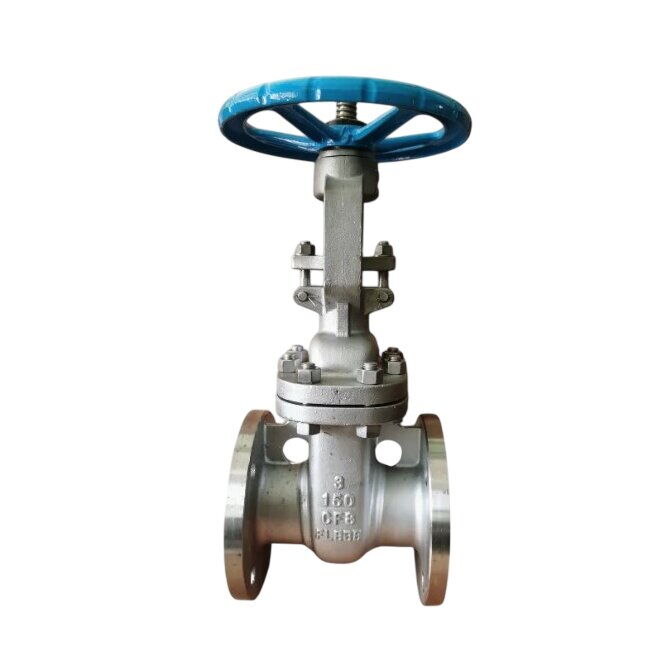

ASTM A351 CF8 Gate Valve, API 600, ANSI B16.34, 3 IN, CL150
Key Specifications / Features
The ASTM A351 CF8 Gate Valve is a high-quality wedge gate valve designed for reliable flow control in industrial systems. Manufactured to API 600 and ANSI B16.34 standards, this 3-inch valve features a full port design for minimal flow resistance. Rated for Class 150 LB, it includes an outside screw & yoke mechanism for easy operation and maintenance. With RF flanged ends, it ensures secure and leak-proof connections, making it ideal for use in oil, gas, and water treatment applications.
- Model No.: VPSK-20250418-GTV-02
- Hits: 28
- Categories: Gate Valves
- Tags: API 600 Gate Valve , ANSI B16.34 Gate Valve , ASTM A351 CF8 Gate Valve
Detail Information
Product Name: ASTM A351 CF8 Gate Valve
Type: Wedge Gate Valve
Design Standard: API 600, ANSI B16.34
Body Material: ASTM A351 CF8
Wedge Material: ASTM A351 CF8
Size: 3 Inch, DN80
Pressure Rating: Class 150 LB, PN20
Face to Face: ASME B16.10
Test & Inspection: API 598
Flange End Standard: ASME B16.5
End Connection: RF Flanged
Operation: Handwheel
Working Temperature: -196°C to 450°C
Application: Water, Gas, Oil, other Corrosive Liquid
Features
Full port
Outside screw & yoke
Bolted bonnet
Flexible wedge
Rising stem hand-wheel
