Key Specifications / Features
This pressure seal bonnet gate valve is engineered for high-pressure applications, featuring a compact ASTM A105N forged carbon steel body. Sized at 1 inch (DN25) and rated for Class 2500 LB / PN420, it offers exceptional sealing under extreme conditions. Designed to API 602 and ASME B16.34 standards with butt welded ends, this valve ensures secure, leak-free performance in critical service systems such as power plants, refineries, and high-pressure process lines.
- Model no.: VPSK-20250421-GTV-01
- Hits: 3
- Categories: Gate Valves
- Tags: Pressure Seal Bonnet Gate Valve , API 602 Gate Valve , ASTM A105N Gate Valve
Detail Information

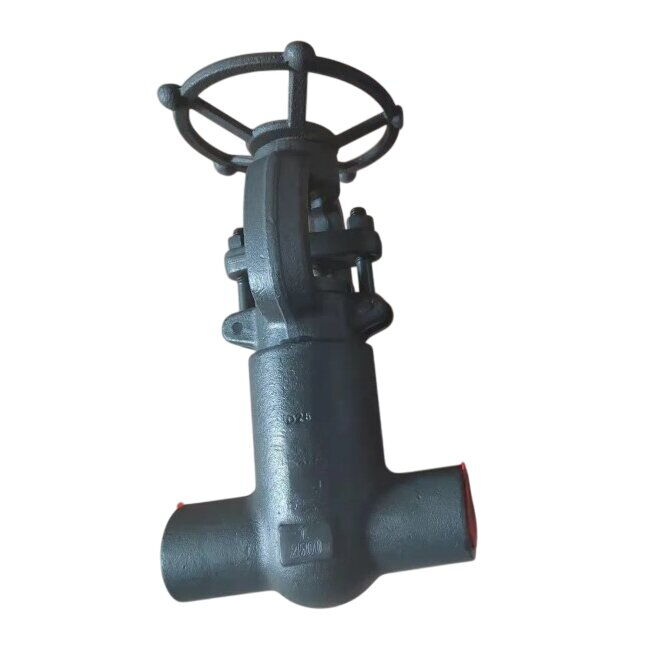

Product Name: Pressure Seal Bonnet Gate Valve
Design Standard: ASME B16.34, API 602
Body Material: ASTM A105N
Size: 1 Inch, DN25
Pressure Rating: Class 2500 LB, PN420
Face to Face: ASME B16.10
Test & Inspection: API 598
BW End: ASME B16.25
End Connection: BW
Operation: Handwheel
A Pressure Seal Bonnet Gate Valve is a type of industrial valve designed for high-pressure, high-temperature applications. It features a pressure-activated bonnet sealing system that enhances sealing performance as internal pressure increases, ensuring reliable, leak-tight operation in demanding environments such as power plants and petrochemical facilities.
