Key Specifications / Features
This ASTM A105N wedge gate valve features a forged carbon steel body with a bolted bonnet for reliable sealing and durability. Designed to API 602, ASME B16.34, and BS 1873 standards, it is sized at 1/2 inch and rated for Class 800 LB pressure. With butt welded (BW) ends, this compact valve is ideal for high-pressure, small bore applications in oil, gas, and industrial systems requiring tight shutoff and long service life.
- Model no.: VPSK-20250421-GTV-02
- Hits: 0
- Categories: Gate Valves
- Tags: ASME B16.34 Gate Valve , API 602 Gate Valve , ASTM A105N Gate Valve
Detail Information

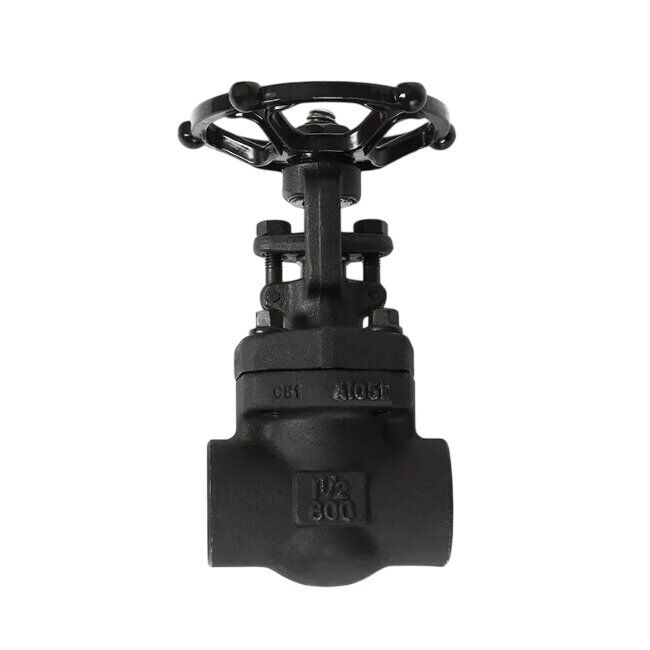

Product Name: Bolted Bonnet Forged Gate Valve
Type: Wedge Gate Valve
Design Standard: API 602, ASME B16.34, BS 1873
Body Material: ASTM A105N
Size: 1/2 Inch, DN15
Pressure Rating: Class 800 LB, PN130
Face to Face: ASME B16.10
Test & Inspection: API 598
BW End: ASME B16.25
End Connection: BW
Operation: Handwheel
Medium: Water, Oil, Air, etc
A Bolted Bonnet Forged Gate Valve is a robust shut-off valve designed for high-pressure applications. It features a forged steel body and a bolted bonnet connection, ensuring strong structural integrity and reliable sealing. Commonly used in oil, gas, and power industries, it provides dependable flow isolation with minimal leakage.
