Low Emission Gate Valve, API 600/602, 1/2–16 IN, 150-2500 LB

Home Products Industrial Valves Low Emission Valves Low Emission Gate Valve, API 600/602, 1/2–16 IN, 150-2500 LB

Key Specifications / Features

The Low Emission Gate Valve Factory offers high-performance valves designed for a range of industrial applications, conforming to ASME B16.34, API 603, API 600, and API 602 standards. Available in sizes from 1/2 to 16 inches and pressure ratings from Class 150 to 2500 LB, these valves are crafted from carbon steel or stainless steel to ensure strength and corrosion resistance. They meet ISO 15848-1 low emission requirements, making them ideal for industries where precise flow control and environmental compliance are critical.

Model no.: VPSK-20250417-LEV-02
Hits: 1
Categories: Low Emission Valves
Tags: Low Emission Gate Valve , ASME B16.34 Gate Valve , API 603 Gate Valve

Request a quote

Detail Information

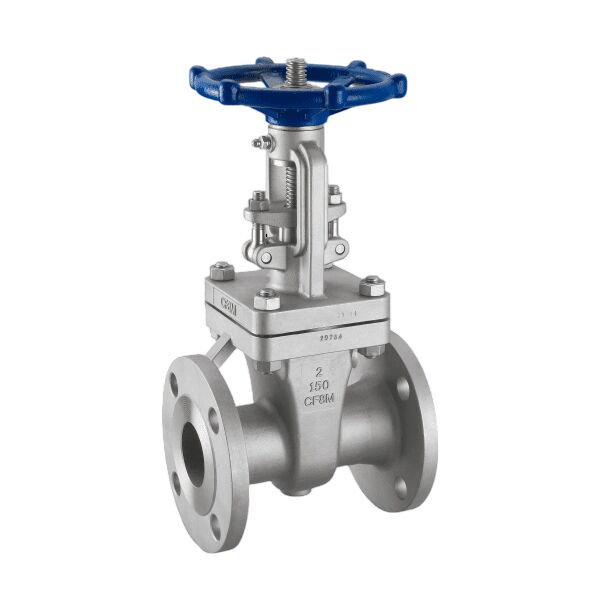

Product Name: Low Emission Gate Valve, Bolted Bonnet, OS&Y
Bore Type: Full Bore
Design Standards: ASME B16.34, API 603, API 600, API 602
Size Range: 1/2–16 Inch, DN15-DN400
Pressure Rating: Class 150-2500 LB, PN20-PN420
Body Materials:
Forged Steel: ASTM A105, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, F51, F321, F347
Cast Steel: ASTM A216 WCB, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF3, A217 WC6, WC9
End Connections: Threaded, Socket Weld, Flanged
Testing Standard: API 598
Seat Materials: Metal or Soft Seat
Certificates: ISO 15848-1, TA-LUFT, API 622, API 624 (Fugitive Emissions)
Applications: Mining, Water & Wastewater Treatment, Chemical Processing, Oil & Gas Industry, Power Generation, etc.

Key Features

Certified fugitive emissions control available for flammable and non-flammable service
Wide variety of seat material options to suit demanding applications
Application versatility across multiple industries
