Key Specifications / Features

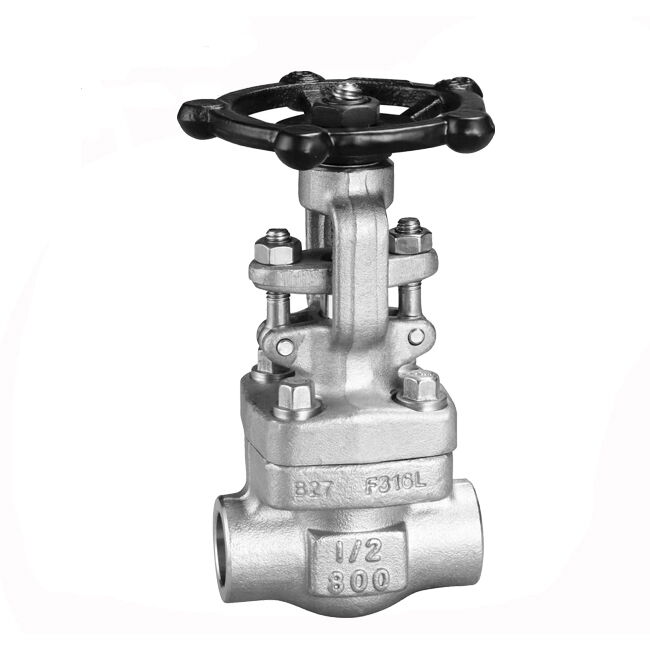

The ASTM A182 F316L gate valve is a compact, high-performance valve crafted from forged stainless steel for excellent corrosion resistance and durability. Designed in accordance with API 602 and ASME B16.34 standards, it features a 1/2 inch (DN15) size, Class 800 LB pressure rating, and socket weld ends for secure installation. Ideal for high-pressure, corrosive environments, this valve ensures reliable shutoff and long-lasting performance in compact piping systems.
- Model no.: VPSK-20250417-GTV-02
- Hits: 2
- Categories: Gate Valves
- Tags: API 602 Gate Valve , ASTM A182 F316L Gate Valve , 1/2 Inch Gate Valve
Detail Information
Product Name: ASTM A182 F316L Gate Valve
Design Standard: API 602, ASME B16.34
Body Material: ASTM A182 F316L
Size: 1/2 Inch, DN15
Pressure Rating: Class 800 LB, PN130
Test & Inspection: API 598
Socket Weld End Standard: ASME B16.11
End Connection: SW
Operation: Handwheel
Media: Water
Temperature: Ordinary Temperature
