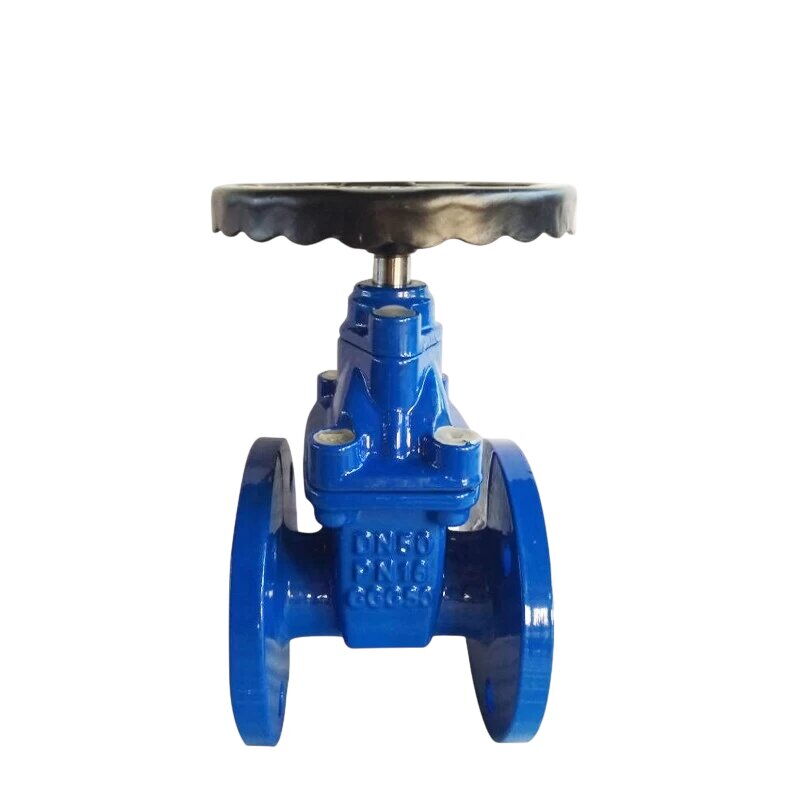

Resilient Seat Gate Valve, DIN 3352, DI GGG50, DN50, PN16
Key Specifications / Features
The Resilient Seat Gate Valve is designed to meet the stringent requirements of DIN 3352. It features a robust ductile iron GGG50 body, providing exceptional strength and durability. The valve has a nominal diameter of DN50 (2 inches) and a pressure rating of PN16 (Class 150 LB), making it suitable for a wide range of industrial applications. The gate is made from GGG40 combined with EPDM, ensuring reliable sealing and long-term performance. Additionally, the valve is equipped with RF flanged ends for secure and convenient installation.
- Model No.: VPSK-20250418-GTV-01
- Hits: 12
- Categories: Gate Valves
- Tags: Resilient Seat Gate Valve , DIN 3352 Gate Valve , GGG50 Gate Valve
Detail Information
Product Name: Resilient Seat Gate Valve
Design Standard: DIN 3352
Body Material: Ductile Iron GGG50
Size: DN50, 2 Inch
Pressure Rating: PN16, Class 150 LB
Gate Material: GGG40 + EPDM
Seat Material: EPDM
Stem Material: SS 304
Face to Face: DIN 3202 F4
Flange End: EN 1092
Test & Inspection: ISO 5208
End Connection: RF
Operation: Handwheel
Medium: Water, Air, Oil
