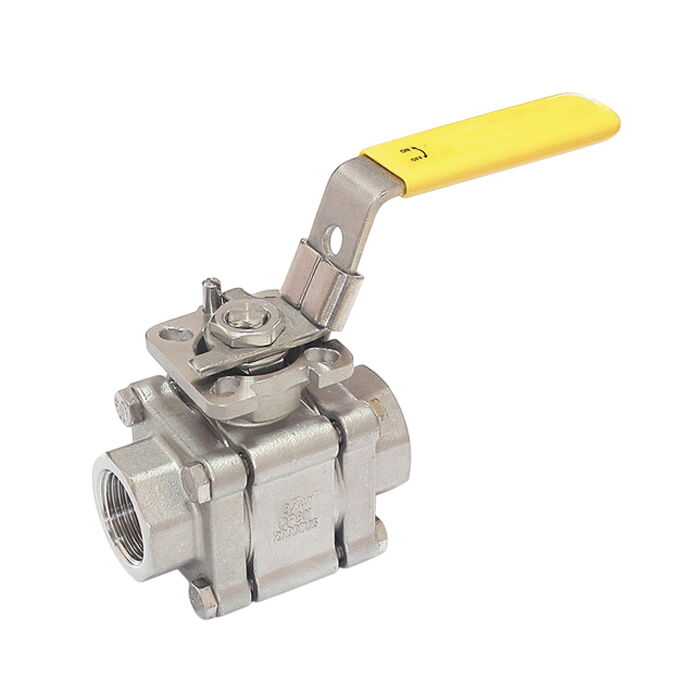

ASTM A351 CF8M Ball Valve, ASME B16.34, 3/4 Inch, 2000 WOG
Key Specifications / Features
The ASTM A351 CF8M Ball Valve Manufacturer offers a high-quality 3-piece ball valve designed in accordance with ASME B16.34 standards. This valve features a cast stainless steel body made from ASTM A351 CF8M, providing excellent corrosion resistance and durability. With a 3/4-inch (DN20) nominal diameter and a 2000 WOG (Water, Oil, and Gas) pressure rating, it is suitable for a wide range of industrial applications. The valve has threaded ends for easy installation and is lever-operated for convenient control.
- Model No.: VPSK-20250523-BAV-01
- Hits: 18
- Categories: Ball Valves
- Tags: ASTM A351 CF8M Ball Valve , 2000 WOG Ball Valve , 3/4 Inch Ball Valve
Detail Information
Product Name: ASTM A351 CF8M Ball Valve, 3 Piece
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8M
Size: 3/4 Inch, DN20
Pressure Rating: 2000 WOG
End Connection: Threaded End
Operation: Lever
Medium: Oil, Gas, Water, etc
Temperature Range: -20°C to 180°C
Standards
Design Standard: ASME B16.34
Face to Face: ASME B16.10
Test & Inspection: API 598
Pressure & Temperature: ASME B16.34
Threaded End: ASME B1.20.1
