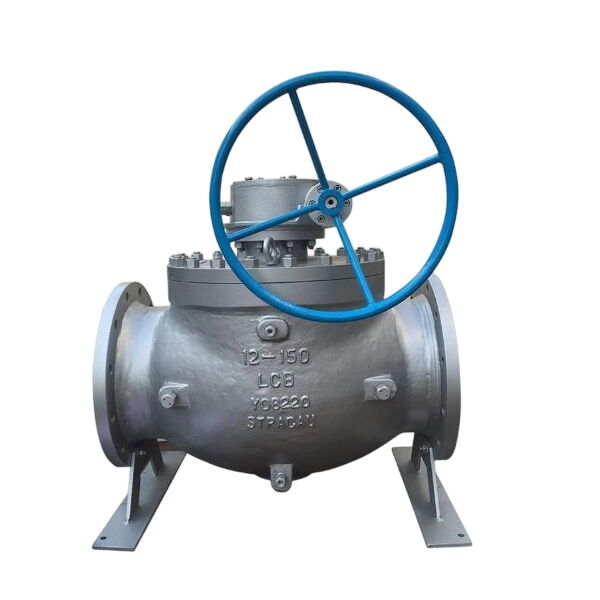

ASTM A352 LCB Ball Valve, API 6D, 12 Inch, CL150, Top Entry
Key Specifications / Features
The ASTM A352 LCB Ball Valve Manufacturer offers high-performance ball valves designed to meet the API 6D standard. These valves are constructed from low-temperature carbon steel, making them suitable for applications in harsh and low-temperature environments. With a nominal diameter of 12 inches (DN300) and a pressure rating of Class 150 LB (PN20), they provide reliable performance under demanding conditions. The top-entry design allows for easy maintenance and inspection without the need to remove the valve from the pipeline. The raised face (RF) flanged ends ensure secure and leak-free connections.
- Model No.: VPSK-20250522-BAV-01
- Hits: 18
- Categories: Ball Valves
- Tags: Top Entry Ball Valve , API 6D Ball Valve , ASTM A352 LCB Ball Valve
Detail Information
Product Name: ASTM A352 LCB Ball Valve, Top Entry
Design Standard: API 6D
Body Material: ASTM A352 LCB
Size: 12 Inch, DN300
Pressure Rating: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Gearbox
Medium: Water, Oil, Gas
Standards
Design & Manufacturing: API 6D, BS 5351
Pressure-temperature Rating: ASME B16.34
Face to Face: ASME B16.10
Test & Inspection: API 598, API 6D
Flange End: ASME B16.5
