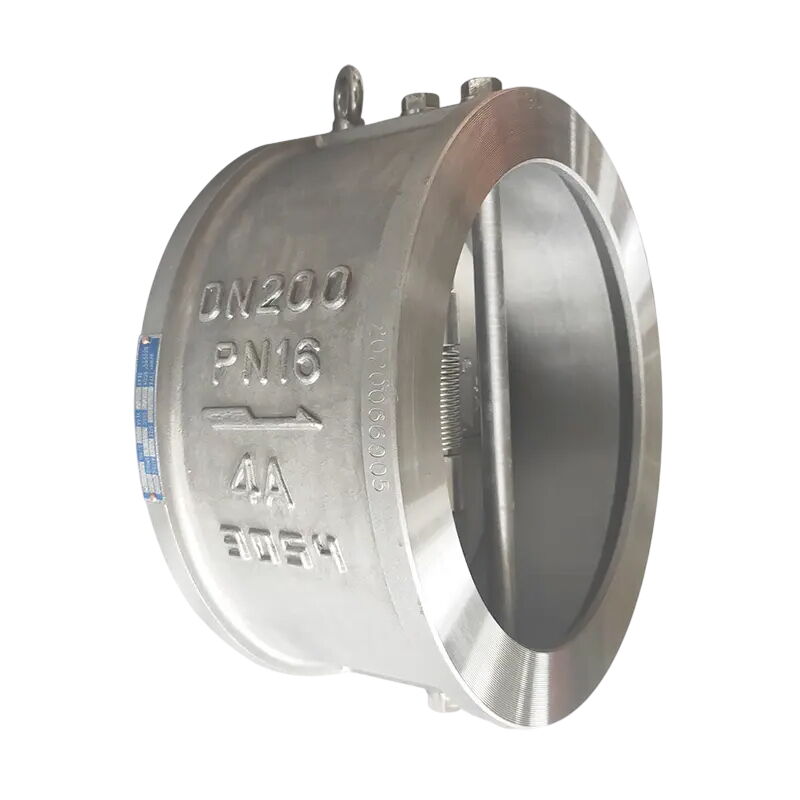

ASTM A890 4A Check Valve, API 594, DSS, DN200, PN16, Wafer
Key Specifications / Features
The ASTM A890 4A Check Valve Plant in China offers high-quality wafer check valves designed in accordance with API 594 standards. These valves feature a duplex stainless steel body, ensuring durability and corrosion resistance. With a nominal diameter of DN200 (equivalent to 8 inches) and a pressure rating of PN16 (150 LB), they are well-suited for various industrial applications requiring reliable backflow prevention.
- Model No.: VPSK-20250521-CV-01
- Hits: 22
- Categories: Check Valves
- Tags: ASTM A890 4A Check Valve , API 594 Check Valve , DN200 Check Valve
Detail Information
Product Name: ASTM A890 4A Check Valve
Type: Wafer Check Valve
Design Standard: API 594
Body Material: ASTM A890 4A, Duplex Stainless Steel
Size: DN200, 8 Inch
Pressure Rating: PN16, Class 150 LB
End Connection: Wafer
Medium: Oil, Gas, Water, etc
Standards
Design & Manufacturing: API 594
Test & Inspection: API 598
Face to Face: ASME B16.10, EN 558-1
