Industrial Valve Seat Materials and Their Performance

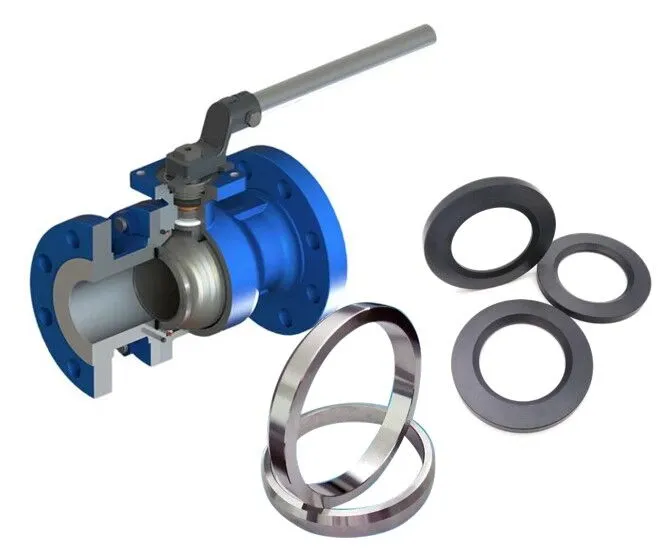

In industrial valves, the valve seat is one of the most critical components, directly influencing the valve's sealing, durability, and stability. The selection of valve seat materials plays a vital role in determining the performance of the valve, especially under extreme conditions such as high temperatures, high pressures, and severe corrosion. Different materials perform differently depending on the operational environment, and making the right choice of material is crucial for ensuring the valve's effectiveness and longevity. This article provides a detailed overview of common valve seat materials, their performance characteristics, and their application ranges, helping readers understand the basis for material selection and its significance in industrial valve systems.

Non-metallic valve seat materials are widely used in various industries such as chemical, petrochemical, power generation, food processing, and water treatment, particularly where high sealing performance is required. These materials exhibit outstanding corrosion resistance, wear resistance, and resistance to chemical media. Common non-metallic valve seat materials include PTFE, RTFE, EPDM, Graphite, Buna-N, Viton, UHMWPE, and Silicone Rubber, among others. Below are detailed descriptions of these materials.

Temperature Range: -32°C to 200°C

Characteristics: PTFE, also known as Teflon, is a high-performance plastic with exceptional chemical resistance and high-temperature resistance. It is almost impervious to corrosion from a wide variety of chemical substances. Additionally, PTFE has an extremely low coefficient of friction, which significantly reduces mechanical wear. Its shape stability under high temperatures and pressures is also outstanding.

Applications: PTFE valve seats are predominantly used in fields requiring resistance to corrosion and high sealing performance, particularly in industries such as petrochemical, pharmaceutical, and food processing, where the flow of chemically aggressive media needs precise regulation.

Temperature Range: -32°C to 200°C

Characteristics: RTFE is an enhanced version of PTFE, incorporating reinforcement with materials like fiberglass to improve mechanical strength and wear resistance. This modification enhances the material's suitability for high-pressure and high-flow conditions, providing better rigidity, pressure resistance, and deformation resistance, while still maintaining the corrosion resistance of PTFE.

Applications: RTFE is commonly used in valves for the chemical and petrochemical industries, as well as for high-temperature applications, where maintaining a stable seal under higher pressures is crucial.

Temperature Range: -28°C to 120°C

Characteristics: EPDM is a versatile elastomer with excellent resistance to ozone, weathering, and water, making it ideal for applications involving water, alcohol, and glycol-based media. However, it is not suitable for use with oils and solvents. EPDM's good elasticity and rebound characteristics ensure effective sealing over long periods.

Applications: EPDM is widely used in water treatment systems, HVAC (heating, ventilation, and air conditioning), and the food and beverage industry, particularly in pipeline valves requiring long-term stable sealing.

Temperature Range: -100°C to 300°C

Characteristics: Graphite has excellent thermal conductivity and can withstand extremely high temperatures, up to 3000°C in some forms. Apart from its high-temperature tolerance, graphite is resistant to most chemical media. It also boasts self-lubricating properties, reducing friction and wear on the valve seat.

Applications: Graphite valve seats are ideal for high-temperature, high-pressure, and chemically corrosive environments. They are widely used in industries such as metallurgy, petrochemicals, and power generation, particularly in the regulation of high-temperature steam and chemical gases.

Temperature Range: -18°C to 100°C

Characteristics: Nitrile rubber is known for its excellent resistance to petroleum-based liquids and fuels. It can withstand certain pressure and temperature fluctuations. Its main advantage lies in its oil resistance and good wear resistance, but it is less resistant to strong acids and alkalis.

Applications: Nitrile rubber valve seats are commonly used in the petroleum, natural gas, liquefied gas, and automotive industries, particularly for controlling fluid media in the oil and gas sector.

Temperature Range: -18°C to 150°C

Characteristics: Viton is a high-performance elastomer with outstanding chemical resistance, especially to organic solvents, acids, and oils under high temperatures. Its high temperature and low-temperature performance make it suitable for many industrial applications.

Applications: Viton valve seats are mainly used in high-temperature, high-pressure, and chemically aggressive environments. They are commonly found in the chemical, aerospace, and automotive industries.

Temperature Range: -32°C to 88°C

Characteristics: UHMWPE is a polyethylene material with a very high molecular weight, offering excellent wear resistance, low friction, corrosion resistance, and cold resistance. It can withstand intense friction, making it ideal for high-speed applications and lower temperature environments.

Applications: UHMWPE is commonly used in industries where significant wear occurs, such as mining, oil extraction, and steel manufacturing.

Temperature Range: -100°C to 300°C

Characteristics: Silicone rubber has outstanding high and low-temperature resistance, maintaining good performance under extreme conditions. It is chemically inert and has excellent resistance to organic acids, low concentrations of inorganic acids, and certain solvents.

Applications: Silicone rubber is widely used in high-temperature environments and is commonly found in the power, electrical, chemical, and high-temperature fluid treatment industries.

Metallic valve seats are designed for high-temperature, high-pressure, high-wear, and demanding durability environments. They are often made from alloy materials to meet the requirements of high temperature resistance, corrosion resistance, and wear resistance. Common metallic valve seat materials include Chromium-based hard alloys, Cobalt-based hard alloys, Nickel alloys, Tungsten carbide, and Stainless steel, among others.

Characteristics: Chromium-based hard alloys offer excellent wear resistance and corrosion resistance, effectively preventing wear caused by the flow of media. These materials perform well in high-temperature environments and are resistant to thermal expansion.

Applications: These alloys are commonly used in heavy-duty, high-wear conditions such as mining, coal, and metallurgy, particularly for handling media that contains hard particles or is highly corrosive.

Characteristics: Cobalt-based hard alloys are known for their superior wear resistance, good heat resistance, and corrosion resistance, especially in extremely high temperatures and highly corrosive environments. They offer excellent oxidation resistance and can perform effectively in harsh conditions for extended periods.

Applications: Cobalt-based alloys are widely used in the oil, chemical, and metallurgy industries, especially where corrosive and high-temperature media need to be transported.

Characteristics: Nickel alloys are highly resistant to corrosion, particularly in acidic or highly corrosive environments. These alloys also possess good high-temperature resistance, enabling them to operate stably for long periods under extreme conditions.

Applications: Nickel alloys are mainly used in industries like chemical, petrochemical, and pharmaceuticals, particularly in fluid handling systems dealing with acidic media.

Characteristics: Tungsten carbide is a very hard material with excellent wear resistance and high-temperature capabilities. It is well-suited for high-pressure, high-flow-rate media, significantly extending the service life of valves.

Applications: Tungsten carbide valve seats are commonly used in high-wear, high-pressure, and corrosive applications such as mining, coal, and steel industries.

Characteristics: Stainless steel is one of the most commonly used metallic materials in industrial applications due to its excellent corrosion resistance and strong high-temperature performance. Stainless steel is cost-effective and offers good machinability.

Applications: Stainless steel valve seats are widely used in the chemical, food, pharmaceutical, maritime, and power industries. They are particularly suited for regulating the flow of general fluids.

When selecting valve seat materials, several factors must be taken into account, including the operating temperature, the nature of the medium, pressure range, flow rate, and the working environment of the valve. Different materials are suited to different applications, and choosing the right material not only improves the valve's performance but also extends its service life.

In industries such as petrochemical and metallurgy, materials like graphite, cobalt-based hard alloys, and tungsten carbide are ideal for their excellent high-temperature resistance.

For handling highly corrosive media like strong acids and alkalis, materials such as PTFE, fluorocarbon rubber, stainless steel, and nickel alloys are preferred due to their outstanding corrosion resistance.

In industries like mining and coal, materials such as chromium-based hard alloys and tungsten carbide are suitable for handling abrasive media, as they have excellent wear resistance properties.

Selecting the appropriate valve seat material is critical for the long-term stable operation of a valve. Careful consideration of material properties is essential for optimizing performance, minimizing maintenance costs, and ensuring reliable operation in specific environments.

The valve seat is a crucial component in the overall functionality of industrial valves, directly influencing sealing, durability, and overall performance. Selecting the right valve seat material is vital for optimizing valve performance in various operating conditions, improving its longevity, and reducing maintenance costs.

In industrial applications, the selection of valve seat materials must account for factors like operational temperature, medium characteristics, pressure range, flow requirements, and environmental corrosion. Non-metallic valve seat materials, such as PTFE and EPDM, perform excellently in chemically aggressive or lower temperature environments, providing good sealing performance, while metallic valve seat materials like chromium-based hard alloys and tungsten carbide are ideal for high-temperature, high-pressure, and high-wear environments, offering exceptional durability and wear resistance.

Each valve seat material has its unique set of characteristics, and the correct choice should be based on an understanding of the specific conditions and requirements of the application. For example, in the chemical and petrochemical industries, PTFE or fluorocarbon rubber may be the materials of choice for their corrosion resistance, while in the metallurgy or mining industries, hard alloys like tungsten carbide may be necessary to withstand harsh wear conditions.

By understanding the performance characteristics of various valve seat materials and their appropriate applications, industrial valve systems can be optimized for better performance, reliability, and cost-effectiveness.
