Cryogenic Valves: Design, Materials and Applications

Cryogenic valves play a critical role in modern manufacturing, especially in industries like petrochemical, liquefied natural gas (LNG), energy, and aerospace. Over the years, their use has steadily increased, particularly due to the growing demand for the safe handling of liquefied gases and low-temperature substances. As one of the key components in controlling cryogenic fluids, cryogenic valves must function effectively in extremely cold environments, where temperature fluctuations and low-pressure conditions present unique challenges.

This article explores the definition, working principles, design requirements, material selection, application areas, and maintenance considerations for cryogenic valves. Understanding these aspects is essential to ensure their reliability, efficiency, and safety in various industrial settings.

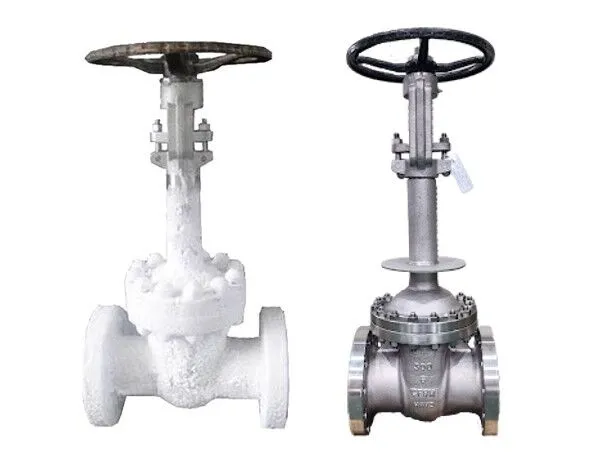

Cryogenic valves are specifically designed to operate in environments with temperatures lower than -29°C (-20°F). These valves control the flow of fluids within systems that manage liquefied gases like LNG, LPG (liquefied petroleum gas), liquid nitrogen, liquid oxygen, and other cryogenic substances. These fluids are transported, stored, and used under very low-temperature conditions, and the valves must maintain both performance and safety in such extreme environments.

Due to their critical function in controlling the flow of cryogenic fluids, these valves must possess robust sealing capabilities, excellent durability, and resistance to wear. The most common types of cryogenic valves include ball valves, globe valves, gate valves, and butterfly valves. The choice of valve type is usually determined by the operational requirements, flow control needs, and specific conditions of the system in which they are used.

While cryogenic valves operate based on similar principles as regular valves, their construction is adapted to handle the particular challenges posed by low temperatures. The main method of flow regulation involves the contact between the valve seat and the valve core, which either allows or stops the flow of fluid. However, due to the potential for materials to expand and contract with temperature changes, cryogenic valves are often designed with special features to accommodate thermal expansion, enhanced sealing systems, and thermal isolation mechanisms to prevent failure under temperature fluctuations.

The design of cryogenic valves is considerably more complex than that of regular valves due to the extreme conditions they must endure. When designing a cryogenic valve, several key factors need to be taken into account to ensure reliable performance in these challenging environments.

One of the main concerns when designing a cryogenic valve is the effect of thermal expansion and contraction on its structural integrity. Metals expand and contract at different rates depending on the temperature, and cryogenic valves must be designed to accommodate these changes without compromising their sealing and operational performance. A poor design could result in a loss of sealing capacity, leading to leaks, or worse, catastrophic valve failure.

To address this, cryogenic valve designs typically feature components like specially formed valve stems, flexible seals, and robust valve seats that can maintain their tight seals despite temperature-induced changes in dimensions. The valve body and stem may also be designed to prevent the sealing surfaces from coming into contact with cold external temperatures, which helps to minimize the risks of sealing failure.

The sealing system of a cryogenic valve is one of the most important aspects of its design. In extremely cold environments, the materials used for sealing must withstand significant contraction and not lose their effectiveness. Traditional sealing materials like PTFE (polytetrafluoroethylene) may shrink in such conditions, leading to leaks. Therefore, cryogenic valves often utilize sealing materials with higher thermal stability and flexibility.

Common materials for cryogenic valve seals include flexible graphite packing, metal-to-graphite seals, and elastomers that are specifically rated for cryogenic applications. These materials help ensure that the valve maintains a reliable, tight seal despite fluctuating temperatures.

Cryogenic valves must also be insulated to prevent the influence of external heat sources. In cryogenic environments, components like the valve seat and core can undergo thermal expansion due to temperature differences, which may result in seal failure or operational issues like water hammer. Effective insulation prevents external heat from reaching these critical parts and helps ensure the valve continues to operate within its design parameters.

Insulation techniques include thermal jackets, specially designed heat shields, and coatings that resist temperature variations. These systems work to maintain stable conditions within the valve and prevent thermal stress that could otherwise lead to mechanical failure.

Material selection is another crucial consideration for cryogenic valve design. The material must be capable of maintaining its strength, toughness, and flexibility at extremely low temperatures. Metals, alloys, and other materials used in cryogenic valves must be carefully chosen to ensure that they do not become brittle or prone to failure when exposed to cryogenic fluids.

Materials commonly used in cryogenic valve construction include:

Low Alloy Steels (e.g., 3Cr2W8V): These materials exhibit excellent toughness, compressive strength, and low-temperature resistance. They are ideal for applications involving temperatures between -46°C and -73°C.

Stainless Steels (e.g., 304, 316, 321): Stainless steels offer high strength and corrosion resistance, even in low temperatures. 304 stainless steel, in particular, is widely used for cryogenic valves because of its excellent low-temperature performance.

Brass: Brass is used in cryogenic valves for applications where temperatures range from -50°C to -80°C. It is corrosion-resistant and capable of withstanding low-temperature pressures.

Cobalt Alloys (e.g., Stellite): These materials are highly resistant to corrosion and wear, making them suitable for extreme low-temperature and high-pressure environments. Cobalt alloys are often used in cryogenic valves for demanding applications where long-term durability is essential.

Flexible Graphite: Graphite is used extensively in cryogenic valve seals due to its ability to withstand extreme temperatures. Flexible graphite provides excellent low-temperature sealing performance, even in the most challenging cryogenic conditions.

Cryogenic valves must also be able to function under specific operational conditions. Temperature fluctuations can impact the speed at which the valve opens or closes, as well as the force required to operate the valve.

Actuation Speed Control: In cryogenic applications, rapid valve opening and closing can lead to issues like water hammer, system vibrations, and potential valve damage. To mitigate this, cryogenic valves are designed to open and close at controlled speeds, which reduces the risk of pressure surges.

Actuation Torque: Operating cryogenic valves typically requires higher torque due to the extreme cold. This necessitates the use of actuators designed to function effectively at low temperatures without freezing or becoming inefficient.

Cryogenic valves must be designed with high safety standards in mind, especially since failures in cryogenic systems can result in catastrophic consequences, including leaks, fires, or explosions. Several safety features are built into cryogenic valves:

Brittleness Resistance: The material used for cryogenic valves must resist brittleness at low temperatures. For this reason, low-alloy steels or stainless steels are selected due to their superior toughness and fracture resistance at sub-zero temperatures.

Leakage Detection: Given the potential for leaks in cryogenic systems, many cryogenic valves are equipped with leakage detection devices. These systems monitor the sealing performance of the valve, alerting operators to potential issues before they lead to failures.

Cryogenic valves are integral components in industries dealing with extremely low temperatures. Some of the primary applications for cryogenic valves include:

LNG is one of the most demanding applications for cryogenic valves. LNG storage and transportation occur at temperatures below -160°C, requiring valves with exceptional sealing capabilities, low-temperature resilience, and pressure resistance. Cryogenic valves are used throughout LNG pipelines, storage tanks, and regasification facilities.

LPG is commonly stored and transported at low temperatures. Cryogenic valves ensure the safe handling of LPG by providing tight seals to prevent leaks and maintaining stable conditions within pipelines and storage facilities.

In the aerospace sector, cryogenic valves are used in the control systems of liquid oxygen (LOX), liquid nitrogen (LIN), and other low-temperature gasses. These valves regulate the flow of gases in rocket propulsion systems and aircraft cryogenic systems, ensuring stable and safe performance during extreme operational conditions.

Cryogenic valves are essential in refrigeration systems and cold-chain logistics. They help regulate the flow of gases and liquids in systems used for food storage, pharmaceuticals, and other temperature-sensitive products. These valves also support precision temperature control in industrial processes, such as cryogenic cooling.

In the petrochemical industry, cryogenic valves play a vital role in the storage and transportation of liquefied gases like LNG, LPG, and other hydrocarbons. The integrity and safety of cryogenic valves are critical for maintaining the efficiency and safety of these operations.

To maintain optimal performance, cryogenic valves require regular maintenance and inspection. Common maintenance procedures include:

Sealing Surface Inspections: Regular checks of the valve's sealing surfaces help identify wear or damage. This ensures that the valve remains capable of maintaining its tight seal under low-temperature conditions.

Actuator System Inspection: The actuator systems should be checked for lubrication and operational efficiency to ensure smooth valve opening and closing.

Seal Material Replacement: Over time, the sealing materials in cryogenic valves may wear out or be affected by temperature changes. These materials should be replaced periodically to ensure optimal sealing performance.

Corrosion Prevention: Cryogenic valves used in marine or other corrosive environments require regular corrosion protection and maintenance to prevent damage to the valve body and components.

Cryogenic valves are essential for ensuring the safe and efficient transport, storage, and handling of liquefied gases and other low-temperature fluids. Their design must account for the unique challenges posed by low temperatures, such as thermal expansion, material brittleness, and sealing integrity. With the continued demand for cryogenic technologies across various industries, the development of advanced materials and innovative designs will only increase, enabling these valves to perform even more efficiently and safely in the future. Through continuous research and advancements, cryogenic valves will remain a cornerstone in maintaining the stability and safety of low-temperature systems.
