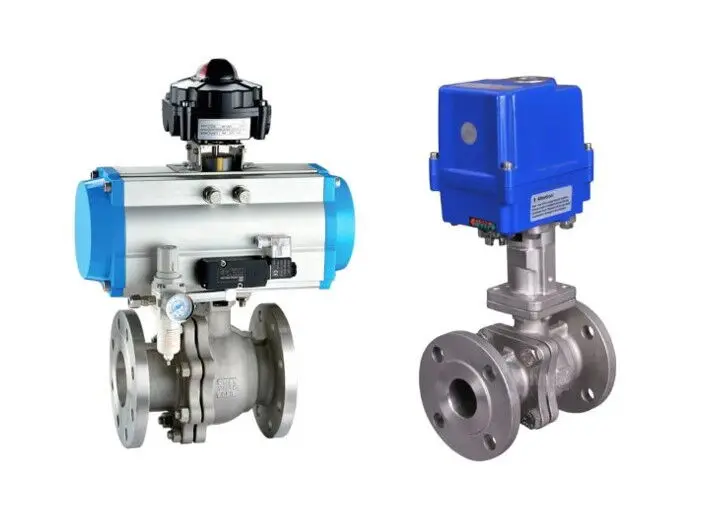

Comparison of Electric Ball Valves and Pneumatic Ball Valves

In the field of industrial automation, valves, as key components for controlling fluid, play an indispensable role. Electric ball valves and pneumatic ball valves, moreover, stand out among many types of valves due to their unique performance and advantages, becoming the preferred choice in many industrial scenarios. Today, let us explore the secrets of these two types of ball valves and see what exactly makes them capable of shining in complex industrial environments.

Electric ball valves, as the name suggests, are driven by electric actuators to operate the opening, closing, and regulating actions of the ball valve. They convert electrical energy into mechanical energy, thus achieving precise control of the pipeline medium. Imagine, in a large chemical production facility, where precise adjustment of liquid flow is needed, electric ball valves can show their capability. They are like obedient "little guardians," as long as they receive an electrical signal command, they will quickly open or close, ensuring the liquid flows smoothly according to the preset flow.

Pneumatic ball valves, on the other hand, use pneumatic actuators as the core component, using the power provided by the air source to drive the ball valve. When the control system sends an open valve signal, compressed air enters the actuator’s air inlet, pushing the piston or diaphragm to move, driving the stem and ball to rotate 90 degrees, and the valve opens. When a close valve signal is received, the actuator exhausts, and under the action of a spring or other reset device, the stem and ball rotate back 90 degrees, and the valve closes. This type of valve, in some situations where response speed is extremely high, such as emergency shutoff systems, can quickly cut off the fluid to ensure system safety.

After understanding the basic structure and working principle of electric ball valves and pneumatic ball valves, it is not difficult to find that although these two types of valves are both used to control the flow of pipeline media, there are significant differences in performance. Next, let us enter an exciting performance comparison to see how electric ball valves and pneumatic ball valves show their skills in practical applications, helping us make wiser choices in different industrial scenarios.

In industrial production, time is money, and response speed is often an important indicator for evaluating valve performance. Pneumatic ball valves have a significant advantage in this regard. Their action is fast, generally completing valve opening and closing within a few seconds. For example, a typical pneumatic ball valve has a switching time of about 6 seconds, and some pneumatic ball valves respond even faster, with a switching time of only 4 seconds. In comparison, electric ball valves usually take 15–20 seconds to switch, obviously slower than pneumatic ball valves. This makes pneumatic ball valves able to react more promptly in some occasions requiring rapid fluid cut-off, such as gas supply systems and fire protection systems, ensuring system safety.

If a valve is regarded as a "regulator," then control accuracy is the key to measuring its adjustment ability. Electric ball valves perform better in this aspect. Driven by a motor, they can achieve precise angle control and adjust flow accurately according to process requirements. For example, in chemical production batching systems, precise control of liquid flow is needed to ensure product quality stability; electric ball valves can meet this demand well. Pneumatic ball valves, though fast in response, are slightly inferior in control accuracy and are more suitable for situations where flow control requirements are not very precise but rapid fluid cut-off is needed.

In some special working environments, such as flammable and explosive locations, safety is the top priority. Pneumatic ball valves have a natural advantage in this regard. They use compressed air as power, which does not generate electrical sparks or other hazards during operation, so their use in flammable and explosive environments has higher safety. Electric ball valves rely on electric drive, so in occasions requiring explosion-proof performance, such as environments with large amounts of flammable gas, they are not very suitable. However, with technological development, some electric ball valves also have explosion-proof functionality, but relatively speaking, pneumatic ball valves are still the more favored choice in terms of safety.

For enterprises, in addition to valve performance, maintenance costs are also an important consideration. Pneumatic ball valves have a relatively simple structure, mainly composed of a pneumatic actuator, ball valve, and some auxiliary components. During operation, due to the cushioning property of the gas itself, they are not easily damaged by jamming, so maintenance is relatively easy. Moreover, pneumatic ball valve parts are easier to obtain, and repair costs are relatively low. Electric ball valves have a relatively more complex structure, and if the circuit board or motor fails, repair may be more troublesome, and maintenance costs are relatively higher.

Electric ball valves perform well with liquid media and large-diameter gas, are not affected by climate, and are not influenced by air pressure. They are suitable for large industrial production equipment or complex pipeline systems and can integrate with computer control systems to achieve remote monitoring and centralized control. For example, in heating system temperature control, electric ball valves can precisely adjust the flow of hot water according to feedback signals from temperature sensors, achieving accurate control of indoor temperature. Pneumatic ball valves are more suitable for gas media and small-diameter liquids, with low cost and convenient maintenance. However, they are greatly affected by fluctuations in air pressure; in northern winters, moisture in the compressed air can freeze the transmission parts, preventing operation and affecting normal valve function.

After understanding the performance differences between electric and pneumatic ball valves, one may ask: in which actual scenarios do these two types of valves play an important role? Next, let us uncover their roles in different application scenarios to see how they each perform, contributing to industrial automation and production efficiency.

Pneumatic ball valves are widely used in automated production lines in petroleum, chemical, pharmaceutical, and food industries. For example, in the pharmaceutical industry, during drug production, precise delivery and control of various liquids are required. Pneumatic ball valves, combined with pneumatic control systems, can achieve automated control of fluid delivery, ensuring product quality and efficiency. Additionally, in some harsh environments, such as high temperature, high pressure, flammable, explosive, toxic, and harmful conditions, pneumatic ball valves can be remotely controlled to avoid direct contact by operators, improving safety. For instance, in oil extraction, pneumatic ball valves can be installed on well pipelines and operated via a remote control system to manage oil delivery and control, ensuring safe and efficient oil extraction.

Electric ball valves are more often used in scenarios requiring precise control of fluid flow. In chemical production, the accuracy of batching systems directly affects product quality and output. Electric ball valves can adjust the flow of various raw liquid materials according to preset programs, ensuring batching accuracy. In water flow adjustment of air conditioning systems, electric ball valves can automatically regulate cooling or heating water flow based on indoor temperature and humidity changes, achieving precise indoor environment control. Moreover, due to their compact structure, electric ball valves have obvious advantages in locations with limited installation space, such as small equipment rooms or densely piped areas.

In practical applications, choosing between electric and pneumatic ball valves requires comprehensive consideration of specific working conditions and application scenarios. If rapid response is critical, such as in emergency shutoff systems or gas supply systems, pneumatic ball valves are undoubtedly the better choice. They can quickly cut off fluid, ensuring system safety. In scenarios requiring precise flow control, such as chemical batching systems or water flow regulation in air conditioning, electric ball valves are better suited. Additionally, in flammable and explosive environments where safety is critical, pneumatic ball valves’ safety advantage also makes them the preferred choice. However, in low-risk environments with installation space constraints, electric ball valves are more advantageous.

In the field of industrial automation, electric and pneumatic ball valves, as key fluid control devices, each have their characteristics and advantages. Electric ball valves, with precise control accuracy, compact structure, and easy integration, perform well in scenarios requiring fine adjustment and remote monitoring. Pneumatic ball valves, with fast response speed, larger actuation torque, and higher safety, dominate in emergency shutoff and flammable and explosive environments. Each excels in different application scenarios, providing strong support for efficient and safe industrial production. In the future, with continuous technological advancement, electric and pneumatic ball valves will continue to optimize and upgrade, better meeting diverse industrial needs and promoting industrial automation to higher levels.
