What are Dynamic and Static Seals in Valve Systems?

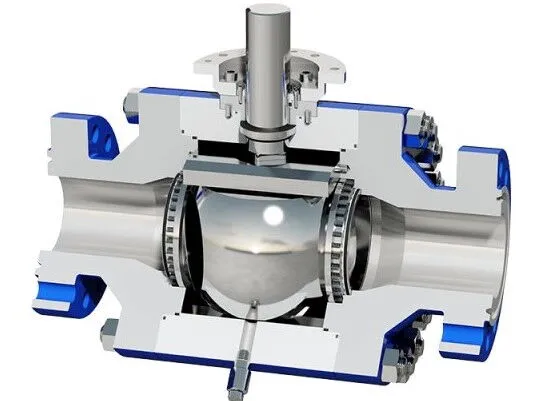

Sealing technology plays a critical role in the design and operation of valve systems, as well as in the broader context of industrial machinery, pipelines, and various mechanical devices. In industrial production and equipment operation, the sealing integrity of a valve directly impacts the safety, efficiency, and energy consumption of the system. Effective sealing ensures that the machinery functions properly, preventing fluid or gas leakage, protecting against wear and damage, and reducing the risk of system failures. There are two primary types of sealing technologies: dynamic seals and static seals. Each has its own set of challenges and applications. Dynamic seals address the sealing requirements between moving parts, while static seals deal with sealing between stationary surfaces. This article provides a detailed overview of both dynamic and static seal technologies, exploring their applications, design considerations, and the technical requirements of each type of seal used in valve systems.

Dynamic sealing technology is concerned with achieving a reliable seal between two parts that are in relative motion. The purpose of dynamic seals is to prevent leakage during the relative movement of the sealing surfaces while ensuring the normal operation of the device or system. Dynamic sealing is vital in valves where fluid or gas must be kept inside the system, preventing unwanted leakage even under high pressure and temperature conditions. Dynamic seals are commonly categorized into two main types based on the motion they accommodate: reciprocating dynamic seals and rotating dynamic seals.

Reciprocating dynamic seals are commonly used in applications where parts move in a back-and-forth motion, such as the valve stem in a valve. The valve stem is a crucial component that controls the opening and closing function of a valve, and it moves in a linear fashion relative to the valve body. During this motion, the valve stem and the valve body interact, which can lead to potential leakage through any gap between them. Therefore, the design of the reciprocating dynamic seal is essential to prevent any medium from leaking through this gap during operation.

Common forms of reciprocating dynamic seals include packing seals, expanding seals, and seals made from high-performance materials. Among these, packing seals are the most commonly used. Packing seals are typically made from materials such as asbestos, polytetrafluoroethylene (PTFE), rubber, and other specialized compounds, which are tightly packed between the valve stem and the valve body. The packing is compressed to create a seal, ensuring that the valve stem can move freely while preventing leakage.

One of the main advantages of packing seals is their simplicity and ease of maintenance. However, over time, the packing material can wear out due to friction, reducing the effectiveness of the seal. This wear can lead to a gradual decrease in sealing performance. To address this issue, modern technology has introduced more efficient sealing methods, such as expanding seals (also known as swelling seals) and combination packing seals.

Expanding seals utilize special materials such as rubber or metal, which expand under pressure to form a more effective seal. This type of seal can significantly reduce wear and improve sealing performance, thus extending the life of the valve. Combination packing seals, on the other hand, combine packing material with additional sealing types to further enhance the sealing ability and prevent leakage. These seals are particularly useful in situations where higher pressures and temperatures are present.

Rotating dynamic seals are used in applications where components are in continuous rotational motion, such as in pumps, valves, and other mechanical equipment. These seals are typically found between the shaft of the rotating component and a surrounding seal housing. The main purpose of these seals is to prevent leakage of fluids or gases from the system while maintaining the rotational movement of the component.

There are several types of rotating dynamic seals, including mechanical seals, oil seals, and O-ring seals. Mechanical seals are the most common and effective type used in high-performance applications. They work by using two precisely engineered sealing rings that form a seal under pressure. The rings are held together by a spring mechanism, allowing them to maintain their sealing function even under high pressure and temperature conditions. Mechanical seals are widely used in pumps and valves, especially in applications that involve high fluid pressures and temperatures.

O-ring seals are commonly used in lower-pressure and lower-temperature environments. O-rings are made from elastomers and are known for their excellent sealing properties, ease of installation, and low cost. However, their performance can degrade when exposed to high temperatures or pressures, which may lead to leakage. In contrast, oil seals are primarily used to prevent the leakage of lubricants, fluids, or gases in rotating mechanical components. These seals are designed to withstand various pressures and temperatures, but they may not perform as well in high-performance, extreme conditions.

The design of dynamic seals requires careful attention to several key factors, including material selection, sealing surface optimization, and pressure-temperature adaptability. The choice of sealing material is of paramount importance, as the material must be compatible with the medium, the operating conditions (such as temperature and pressure), and the mechanical properties required for sealing performance. Common sealing materials for dynamic seals include graphite, PTFE, fluoropolymer elastomers, and rubber compounds.

Dynamic seals must also be designed to withstand wear, aging, and corrosion. Many dynamic seals operate in environments with high levels of friction, which can lead to gradual degradation of the sealing material. In some specialized applications, dynamic seals must include self-lubricating materials to reduce friction and wear, thus enhancing the seal's durability and longevity.

Unlike dynamic seals, static seals operate between two stationary surfaces and do not involve relative motion. While static seals are typically simpler in design, they are still crucial to maintaining the integrity of the system by preventing leakage at the contact surfaces. Static seals are most commonly used in applications where components do not move, such as in valve flanges, pipe connections, and between other stationary components in mechanical systems.

The primary challenge with static seals is to prevent the medium from leaking through the gaps between two stationary surfaces. The design of static seals must consider not only the sealing material's properties but also factors such as surface smoothness, surface roughness, and the distribution of pressure across the sealing area. A well-designed static seal will form a tight barrier between two surfaces, ensuring that no medium leaks out of the system.

There are many materials available for use in static seals, and the choice of material depends on the operating environment. Common materials for static gaskets include rubber, metal, plastics, and asbestos.

Rubber Gaskets: Rubber is widely used for static sealing in low-pressure, low-temperature environments. Rubber gaskets offer excellent sealing properties, are easy to process, and are inexpensive. Types of rubber commonly used include natural rubber, nitrile rubber, chloroprene rubber, and fluororubber. Fluororubber, in particular, is known for its superior sealing capabilities in high-temperature and chemically corrosive environments.

Metal gaskets are used in high-pressure and high-temperature environments due to their strength and resistance to temperature fluctuations. Common metals used in gaskets include stainless steel, copper, and aluminum. Metal gaskets can withstand extreme operating conditions and are often used in applications like steam systems and high-temperature chemical processing.

Plastics such as PTFE (polytetrafluoroethylene), polyethylene, and polypropylene are often chosen for their excellent chemical resistance. They are typically used in industries such as food processing, pharmaceuticals, and chemical manufacturing, where corrosion resistance is crucial.

While asbestos gaskets were once the industry standard due to their high resistance to heat and chemicals, their use has significantly declined due to health and safety concerns. Many industries have replaced asbestos with safer composite materials that offer similar performance.

The design of static seal gaskets must ensure that the material remains in constant contact with the sealing surfaces, even under varying pressure and temperature conditions. The surface roughness of the sealing contact areas is a critical factor, as a smoother surface ensures better sealing performance. Special treatments, such as coating, roughening, or elastomer-enhancement, can be applied to improve the seal's efficiency and to reduce the chance of leakage.

Static seal gaskets come in various designs, including flat gaskets, lens gaskets, and oval gaskets. Flat gaskets are the most common type and are used in low and medium-pressure applications. Lens and oval gaskets, with their unique shape, provide a better self-tightening effect under higher pressure, ensuring the sealing surfaces are tightly held together to prevent leaks.

Static seals are most commonly used in valve systems to prevent leakage from flanged connections and pipe interfaces. For instance, in a valve system, static seals are used to ensure that the valve body and valve seat are properly sealed, preventing medium leakage between connected components. In pipeline systems, static seals made from materials like metal or plastic are used to seal connections between pipes, joints, and other parts, ensuring the integrity of the entire system.

In high-temperature and high-pressure environments, such as in the petrochemical and power generation industries, metal and composite gaskets are frequently used to handle the extreme conditions while maintaining effective sealing.

Both dynamic and static sealing technologies play crucial roles in the performance and reliability of valve systems and other mechanical equipment. Dynamic seals are used to prevent leakage between moving components, with specific designs such as reciprocating and rotating dynamic seals serving unique purposes in different types of valves. In contrast, static seals focus on maintaining a tight seal between stationary surfaces, ensuring the integrity of the system even when parts do not move. Both types of seals require careful consideration of material properties, operating conditions, and mechanical design to ensure optimal performance. Understanding the differences and applications of dynamic and static sealing technologies helps engineers and system designers select the right materials and methods for their sealing needs, ensuring a reliable and leak-free operation across various industries.
