How to Properly Install Pump and Valve Packing?

In various industrial equipment, pumps and valves serve as core control components responsible for fluid transmission and regulation. To ensure their efficient and stable operation, sealing performance is crucial. Packing, as a key element of the pump and valve sealing system, plays an indispensable role. Its primary function is to prevent fluid leakage and ensure the safe operation of the equipment. The installation and adjustment of packing directly impact the normal operation of pumps and valves. Improper installation or adjustment may lead to leakage, wear, or even equipment failure.

Therefore, mastering the correct techniques for packing installation and adjustment not only improves sealing performance but also extends the equipment's service life and reduces maintenance costs. This article will provide a comprehensive analysis and explanation of pump and valve packing installation and adjustment, covering preparatory work before installation, packing selection and installation steps, common adjustment techniques, and how to ensure long-lasting and stable packing sealing performance.

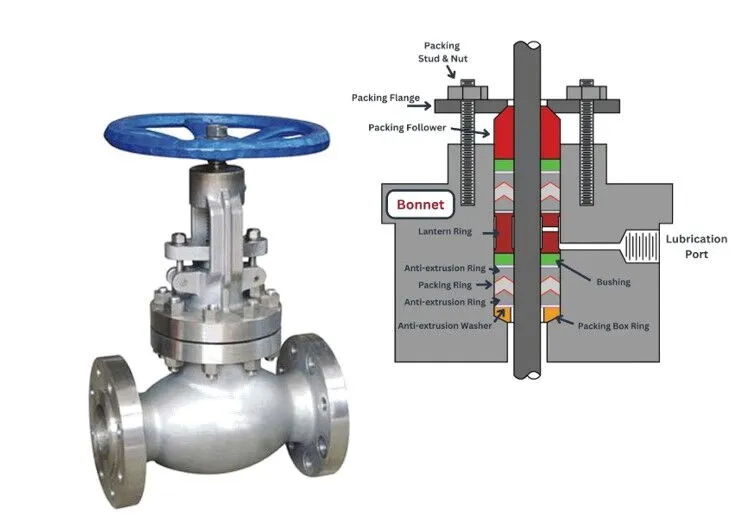

Packing is a commonly used sealing material in the pump and valve sealing system, typically made from woven fabrics, metal wire, or other high-performance materials. These materials effectively prevent fluid leakage along components such as shafts and rods while allowing the equipment to rotate or slide freely under certain working conditions.

The role of packing primarily includes the following aspects:

Preventing Leakage: The fundamental function of packing is to prevent fluid leakage during the operation of pumps and valves. Whether in water pumps, chemical pumps, or various industrial valves, packing effectively isolates the sealing surface from the external environment, preventing the leakage of hazardous fluids or harmful gases.

Improving Equipment Safety: Poor sealing can lead to equipment failure and even cause severe safety incidents. By using high-quality packing and ensuring proper installation, leakage incidents can be significantly reduced, ensuring stable operation under high pressure or temperature conditions.

Enhancing Work Efficiency: Good packing seals ensure smooth fluid flow, reducing flow loss due to leakage and improving the overall efficiency of the system.

Installing packing is a process involving several technical points, and proper preparatory work is essential. Good preparation not only helps avoid errors during installation but also improves efficiency, ensuring optimal packing sealing performance.

Before installing the packing, it is crucial to ensure that the equipment is clean, especially the packing box and shaft surfaces. This is because the packing rings directly contact the equipment surface, and any dirt or defects may affect sealing performance or even damage the packing.

Clean the Packing Box: First, use a clean cloth to wipe the interior of the packing box, removing dust, grease, and other impurities. If there is corrosion, scratches, or any damage, it should be repaired to ensure a smooth surface.

Check the Shaft and Valve Rod: The surfaces of the shaft and valve rod also need to be cleaned, ensuring that there are no scratches, corrosion, or defects. If defects are found, polishing or replacement is necessary. The smoothness of the shaft plays a crucial role in the packing's sealing performance, especially under high-pressure or high-temperature conditions.

While cleaning the equipment, it is also important to inspect other components, particularly those that directly contact the packing, such as the packing box, gland, and bearing seat. Check for cracks, deformation, or wear to ensure these parts are in proper working condition.

The tools required for packing installation include:

Screwdrivers, Wrenches: Used for disassembling and installing the packing.

Cutting Machine or Knife: Used to trim the packing rings to ensure they meet the required size and shape.

Torque Wrench: Used to adjust the torque of the packing gland to ensure appropriate installation pressure.

Lubricants: Used for lubricating the packing during installation to reduce friction and extend packing life.

Measuring Tools: Such as calipers and thickness gauges, used to accurately measure equipment dimensions and packing size.

The packing material required varies depending on the operating conditions. Common packing materials include:

Flexible Graphite: Suitable for high-temperature, high-pressure, or corrosive environments, offering excellent chemical stability and high-temperature resistance.

PTFE (Polytetrafluoroethylene): Suitable for low-temperature, low-pressure environments, offering outstanding chemical stability and corrosion resistance.

Rubber Packing: Suitable for low-temperature, low-pressure applications, offering good elasticity and anti-aging properties.

Selecting the appropriate packing material based on the equipment's operating conditions, working medium, and temperature is the first step to ensuring optimal sealing performance.

Selecting the right packing involves not just choosing the material but also considering dimensions, shapes, and the number of rings. Correct selection can significantly improve packing sealing performance and longevity.

Packing dimensions should be chosen based on the specific conditions of the equipment. Common methods for selecting dimensions include measuring the shaft diameter, packing box depth, and bore diameter to determine the required packing size. When choosing packing, the following factors should be considered:

Shaft Diameter: The shaft's diameter directly determines the outer diameter of the packing ring.

Packing Box Depth: Variations in packing box depth affect the number of packing rings and the installation method.

Bore and Bore Depth: The size and depth of the bore also impact the compression and sealing effectiveness of the packing.

Packing materials vary in temperature, corrosion, and wear resistance based on the working environment. Common packing materials include:

Flexible Graphite Packing: Suitable for high-temperature and high-pressure industrial environments, able to withstand extreme temperatures and strong corrosive environments, widely used in the chemical, petroleum, and power industries.

PTFE Packing: Suitable for low-temperature, low-pressure environments, with excellent chemical stability, commonly used in food, pharmaceutical, and chemical industries.

Fiber Packing: Made from wear-resistant fibers, suitable for medium to low-temperature industrial environments, commonly used in pumps, turbines, and other equipment.

Choosing the most appropriate packing material based on the equipment's working medium and temperature conditions is crucial.

Although the packing installation process is not complicated, it requires strict adherence to the operating procedures. Correct installation ensures optimal sealing performance and extends equipment lifespan.

Before installing the packing, the ends of each packing ring need to be cut and adjusted according to the equipment size. The cutting angle is generally 45 or 90 degrees to avoid large seams. During installation:

First, insert the first packing ring into the packing box, ensuring it fits tightly against the box wall.

Then, install the remaining packing rings one by one, with each ring's seam staggered by 120 degrees to ensure even sealing performance. During installation, operators should ensure the packing alignment and ensure tight fitting of each ring.

After installing all packing rings, gradually insert the gland into the packing box and use bolts or nuts to tighten it. The gland installation should be adjusted based on the packing compression level to ensure the packing rings are not over-compressed, while also avoiding loose compression that could lead to leakage.

Adjusting the gland nuts is critical. After installation, gradually increase the gland pressure to ensure no gap exists between the packing and equipment surface, achieving the best sealing effect. Typically, the gland nuts should be adjusted in several steps to ensure even pressure distribution.

After installation, conduct a startup test of the equipment and check the sealing effect. If leakage occurs, adjust the gland nuts to control the leakage.

Packing adjustment and maintenance are also crucial. Proper adjustment can effectively extend packing life and avoid equipment downtime due to packing wear or failure.

During the initial operation of the equipment, observe any leakage. If leakage is significant, adjust the gland pressure to increase the packing compression. Generally, after a period of operation, the gland pressure should be checked and adjusted to ensure optimal sealing.

Over time, packing may degrade due to high temperatures, high pressures, or wear. Therefore, regular checks and replacements are necessary. During packing replacement, follow the installation steps and select the appropriate packing material based on the equipment conditions.

During routine maintenance, regularly clean the packing to avoid the accumulation of impurities that may affect sealing performance. Each time maintenance is carried out, also inspect the condition of the equipment's shaft, packing box, gland, and other components to ensure proper equipment operation.

The proper installation and adjustment of packing in pumps and valves is a key step in ensuring the long-term and stable operation of equipment. A well-installed packing system not only prevents fluid leakage effectively but also greatly enhances equipment safety, reliability, and work efficiency. By selecting and installing packing scientifically and precisely, it is possible to optimize sealing performance and extend the service life of pumps and valves while reducing maintenance costs. Proper packing installation requires choosing the right material and size, as well as ensuring that operators possess the necessary expertise and skills to follow detailed installation and adjustment procedures. Regular inspection, adjustment, and maintenance are essential to ensure that packing performance remains at its best, preventing equipment downtime or failure due to packing failure, and ensuring continuity and efficiency in production.
