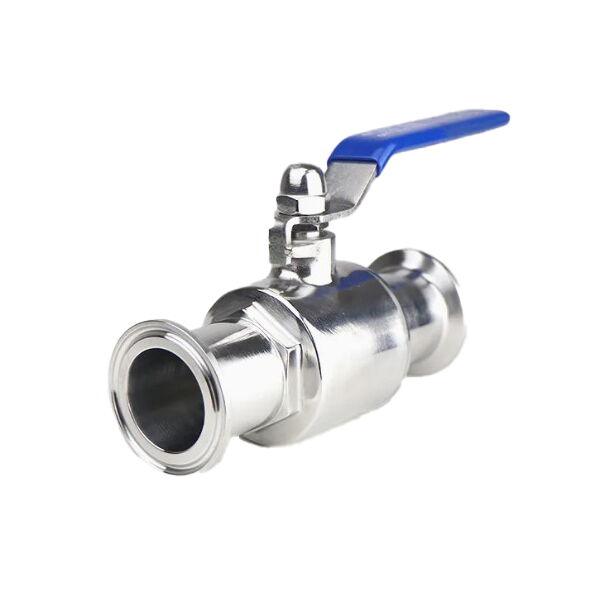

Tri-Clamp Ball Valve, SUS 304, 1-1/2 Inch, 200 WOG, Lever
Key Specifications / Features
The China Tri-Clamp Ball Valve Manufacturer offers a range of sanitary ball valves designed for industrial applications. These valves feature a floating ball design, ensuring a tight seal and reliable performance. They are constructed from high-quality stainless steel SUS 304, making them durable and corrosion-resistant. The valves are available in a 1-1/2 inch size (DN40) and can handle a working pressure of up to 200 WOG. They are operated manually using a lever, providing easy control for on/off functions.
- Model No.: VPSK-20250717-BAV-01
- Hits: 16
- Categories: Ball Valves
- Tags: Stainless Steel Ball Valve , Tri-Clamp Ball Valve , SUS 304 Ball Valve
Detail Information
Product Name: Sanitary Tri-Clamp Ball Valve
Strcuture: Floating Ball Valve
Body Material: Stainless Steel SUS 304
Size: 1-1/2 Inch, DN40
Pressure Rating: 200 WOG
End Connection: Clamped
Operation: Lever
Suitable Temperature: -10°C to 120°C
Medium: Water, Oil, Gas, Steam, etc
Product Range
Body Material: Stainless Steel SUS 304, SUS 316
Size Range: 1/2-6 Inch, DN15-DN150
Pressure Rating: Custom
Operation: Manual, Pneumatic, Electric
