Key Specifications / Features

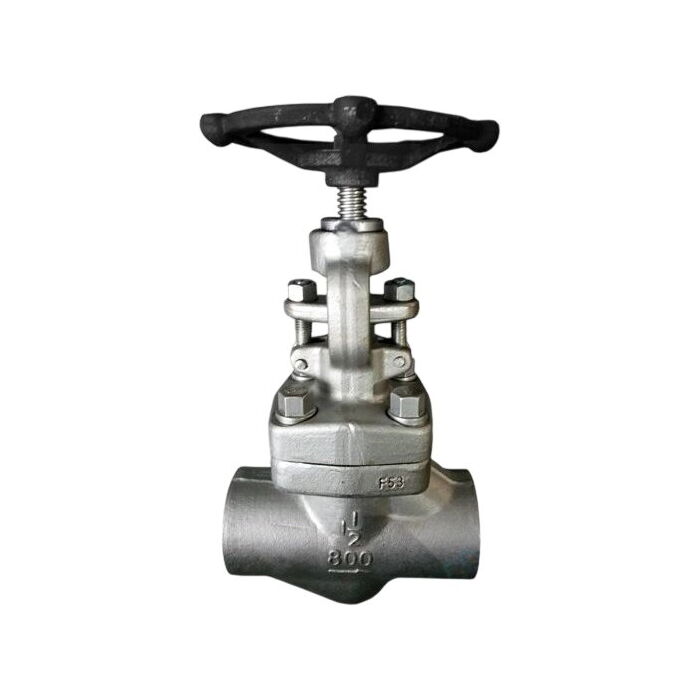

The ASTM A182 F53 Globe Valve is a high-quality valve designed for reliable flow regulation in demanding applications. Constructed from duplex stainless steel, it offers exceptional strength and corrosion resistance. Featuring F53+STL trim, this 1-1/2 inch valve (DN40) is rated for Class 800 LB pressure and operates with an OS&Y (Outside Screw & Yoke) design for precise control. The valve is equipped with socket weld ends for secure and leak-proof connections.
- Model no.: VPSK-20250429-GLV-01
- Hits: 0
- Categories: Globe Valves
- Tags: ASTM A182 F53 Globe Valve , API 602 Globe Valve , 1-1/2 Inch Globe Valve
Detail Information
Product Name: ASTM A182 F53 Globe Valve
Features: Full Bore, OS&Y, Bolted Bonnet
Design Standard: API 602
Body Material: ASTM A182 F53
Trim Material: ASTM A182 F53+STL
Size: 1-1/2 Inch, DN40
Pressure Rating: Class 800 LB, PN130
Test & Inspection: API 598
Socket Weld End: ASME B16.11
Face to Face: ANSI B16.10
End Connection: SW
Operation: Handwheel
Medium: Water, Gas, Oil
