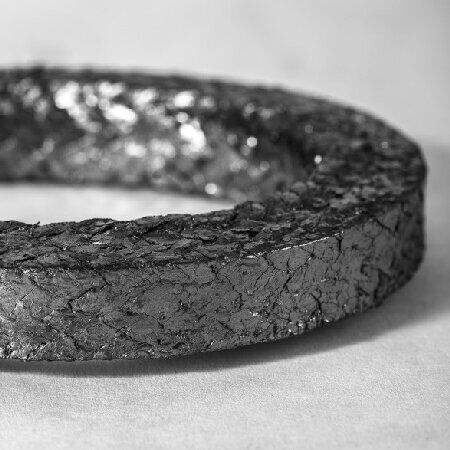

In industrial production, the sealing of equipment is particularly critical. Poor sealing can lead to equipment malfunctions and even pose dangers. Graphite packing is an especially effective sealing material. It is primarily made by weaving various reinforcing fibers and metal wires, such as steel wire, copper wire, nickel wire, carbon fiber, pre-oxidized fiber, glass yarn, and graphite yarn together. This material is remarkable for its ability to maintain excellent sealing performance in high-temperature, high-pressure environments and in the presence of various corrosive media, making it extremely versatile. Next, let's take a detailed look at how impressive graphite packing is and how it plays a significant role in industry.
The raw materials for manufacturing graphite packing are diverse, mainly including various reinforcing fibers like carbon fiber, pre-oxidized fiber, glass yarn, and metal wires such as steel wire, copper wire, and nickel wire. These reinforcing materials are combined with graphite yarn and processed through a meticulous weaving technique to form robust and durable graphite packing. This unique combination of raw materials and manufacturing process endows graphite packing with superior physical and chemical properties, enabling it to maintain stable sealing performance in harsh environments characterized by high temperatures, high pressures, and strong corrosiveness.
There are numerous types of graphite packing, which can be categorized based on the crystalline form and structural characteristics of the graphite into the following main types.
Dense crystalline graphite, also known as lump graphite, has distinct crystalline particles that are visible to the naked eye. The particle diameter is usually greater than 0.1 millimeters, with a specific surface area ranging from 0.1 to 1 m²/g. The crystalline structure of this type of graphite is disordered, forming a dense, lump-like construction. It has a high carbon content, typically between 60% and 65%, and sometimes even reaching 80% to 98%. However, compared to flake graphite, its plasticity and lubricity are slightly inferior. Despite this, dense crystalline graphite packing, due to its high-grade characteristics, still plays an irreplaceable role in certain specific industrial fields.
Flake graphite packing is an important member of the graphite packing family. Its crystals are flake-shaped, formed through metamorphism under high-intensity pressure. Based on the size of the flakes, it can be divided into large flake and fine flake types. The grade of this type of graphite ore is relatively low, generally ranging from 2% to 3% or 10% to 25%. However, it is one of the most floatable ores in nature. After multiple grinding and beneficiation processes, high-grade graphite concentrate can be obtained. Flake graphite has excellent floatability, lubricity, and plasticity, making it highly valuable in industrial applications. It is not only used for making graphite packing but also plays a significant role in many other fields.
Cryptocrystalline graphite, also known as amorphous graphite or earthy graphite, has a very small crystal diameter, generally less than 1 micron, with a specific surface area ranging from 1 to 5 m²/g. Only with the aid of an electron microscope can its tiny crystalline shape be observed. The surface of cryptocrystalline graphite is earthy, lacking luster, and has relatively poor lubricity. However, it has a high grade, typically between 60% and 80%, and in some cases, it can even reach over 90%. Despite this, the selectivity of this type of graphite ore is poor, and the mining and processing are more challenging. Nevertheless, cryptocrystalline graphite packing still has unique application value in certain specific industrial scenarios.
The application scope of graphite packing is extremely broad, covering almost all areas of industrial production. Here are some common application scenarios.
Graphite packing can maintain stable sealing performance under high-temperature and high-pressure conditions. Therefore, it is widely used for sealing valves, pumps, reactors, and other equipment. Whether it is hot water, superheated steam, heat transfer fluids, or media such as ammonia solutions, hydrocarbons, and cryogenic liquids, graphite packing can handle them with ease. This unique universal sealing capability makes it an indispensable sealing material in industrial production.
Graphite packing has excellent corrosion resistance and can resist the erosion of various chemical media, with the exception of a few strong oxidizing agents. In the chemical and pharmaceutical industries, graphite packing is widely used to seal equipment containing corrosive substances, effectively preventing media leakage and ensuring production safety.
With the increasing awareness of environmental protection and the pursuit of production efficiency, graphite packing has gradually become an ideal substitute for some traditional sealing materials. For example, in pump systems, aramid packing (a substitute for graphite packing) has characteristics such as high strength, low weight, heat resistance, and wear resistance, making it a good alternative to asbestos packing. It can resist wear from particulate crystalline media and maintain stable sealing performance at higher temperatures. It is suitable for sealing media that are prone to wear, such as superheated steam, solvents, liquefied gases, and syrups.
In addition to the common applications mentioned above, graphite packing also plays an important role in some special industrial scenarios. For example, high-water-based packing (a special type of graphite packing) is made from high-quality ramie fiber, coated with graphite inside and outside, and fully impregnated with special lubricating oil. This packing has an extremely low friction coefficient, does not wear the shaft, and has good corrosion resistance. It is widely used in the shipping industry, cold water treatment, seawater, and cold oil equipment, such as low-pressure valves, rotating equipment, reciprocating pumps, hydraulic presses, and ship propellers. Its applicable temperature does not exceed 140°C, the pH value range is 2-12, and the linear speed can reach 10 m/s. It is suitable for various media such as water, seawater, brackish water, oils, greases, weak acids, and weak bases, and is particularly wear-resistant.
The reason why graphite packing stands out among many sealing materials is mainly due to its unique performance advantages.
Graphite packing can maintain stable performance at extremely high temperatures. Around 2200°C, almost all nitrogen in the graphite packing is removed, and the porosity reaches its peak. As the temperature continues to rise, the porosity drops sharply, and the density increases rapidly. This unique thermal stability enables graphite packing to maintain sealing performance for a long time in high-temperature environments without leakage due to temperature changes.
Graphite packing has good corrosion resistance to most chemical media. Except for a few strong oxidizing agents, it can resist the erosion of various acids, bases, salts, and other chemical substances. This characteristic gives graphite packing an unparalleled advantage in the chemical and pharmaceutical industries, effectively preventing chemical media leakage and ensuring production safety.
Graphite itself has good lubricity, which allows graphite packing to reduce friction and equipment wear during operation. Especially in high-speed rotating equipment, the low friction coefficient of graphite packing can significantly improve equipment efficiency and extend its service life.
The reinforcing fibers and metal wires in graphite packing give it high strength and high modulus characteristics. This enables graphite packing to maintain a stable shape and sealing performance in high-pressure environments without deformation or leakage due to pressure changes. For example, the strength of aramid packing is three times that of metal wire, while its weight is only one-fifth that of metal wire. This high-strength, low-weight characteristic gives graphite packing a unique advantage in applications where weight and strength are critical.
As a high-performance sealing material, graphite packing, with its unique combination of raw materials and meticulous manufacturing process, demonstrates superior temperature resistance, corrosion resistance, lubrication, and high strength. It is widely used for sealing industrial equipment in harsh environments such as high temperatures, high pressures, and strong corrosiveness, such as valves, pumps, and reactors, effectively ensuring the stable operation of equipment and production safety. Graphite packing comes in a variety of types, including dense crystalline graphite packing, flake graphite packing, and cryptocrystalline graphite packing. Each type plays an important role in different industrial scenarios based on its unique physical and chemical properties. This concludes our introduction to the basic knowledge of graphite packing. If you would like to learn more about graphite packing, you can follow our column, as we will regularly update professional knowledge about graphite packing.
