Graphite Rings: Good for Industrial Sealing and Lubrication

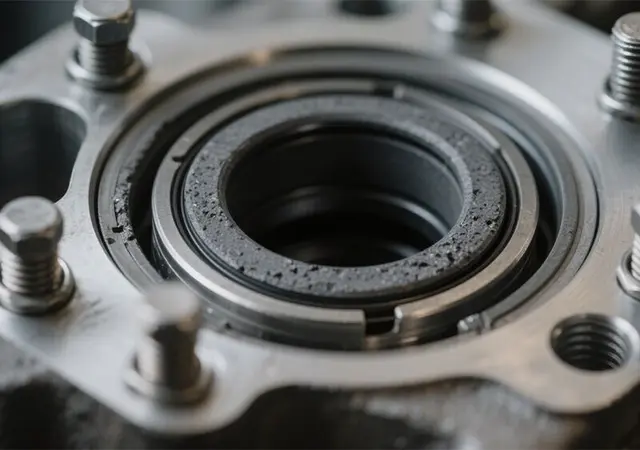

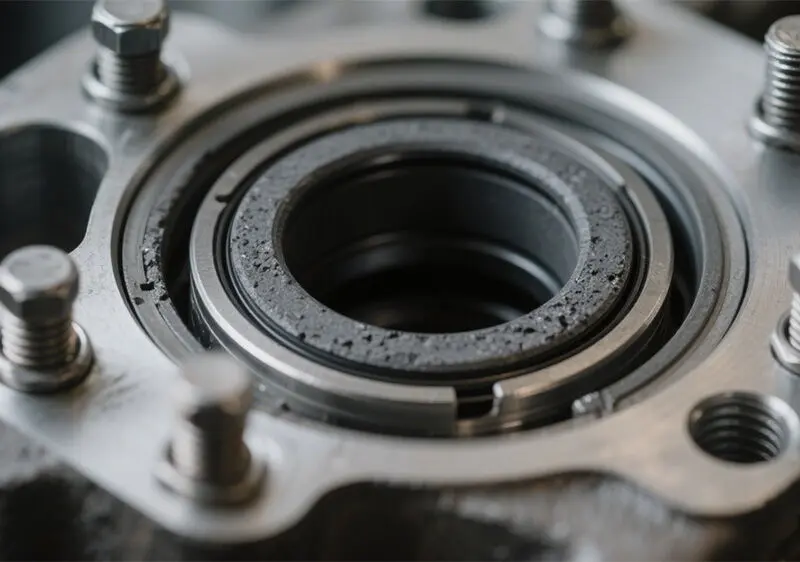

In the complex operation of modern industry, the sealing and lubrication of various equipment are crucial for ensuring stable operation. Graphite rings, as high-performance sealing and wear-resistant materials, have stood out among many others due to their unique physical and chemical properties, becoming an indispensable industrial material. This article will delve into the characteristics, types, applications, and significant role of graphite rings in the industrial field, helping readers gain a comprehensive understanding of this amazing material.

There are various types of graphite rings, each with its specific structure and application scenario.

Flexible graphite packing rings are made by cutting high-purity flexible graphite sheets into strips of certain dimensions and winding them in a special mold. They possess all the characteristics of flexible graphite, such as good chemical stability, high-temperature resistance, and corrosion resistance. The purity of flexible graphite packing rings is greater than 98%, with no fillers or adhesives, making them an environmentally friendly and high-performance sealing material. Their standard cross-section is square, but they can also be processed into wedge or V-shapes according to needs, suitable for high-pressure areas. These graphite rings are widely used in valves and various static sealing applications, capable of withstanding severe temperature and pressure variations.

Carbon-graphite rings are mainly used for sealing in mechanical rotating parts. They have the characteristics of high-temperature resistance, corrosion resistance, and wear resistance, and can maintain stable sealing performance under high-speed rotation and high load conditions. Carbon-graphite rings are usually used in equipment that requires long-term lubrication-free operation, such as compressors, pumps, and valves. They have good self-lubricating properties and a high resilience coefficient, and can be customized according to user needs, such as being cut at a 45° angle, to meet different installation and usage requirements.

To meet different industrial needs, graphite packing rings have also developed two special types: reinforced and corrosion-resistant. Reinforced graphite packing rings incorporate stainless steel foil, mesh, or other metal reinforcement materials into the graphite rings to enhance their mechanical strength and compressive performance. This design not only strengthens the structural stability of the graphite rings but also effectively prevents oxidation and extends their service life. Corrosion-resistant graphite packing rings, on the other hand, add sacrificial anode corrosion inhibitors, such as zinc powder, to the graphite rings. By using the principle of sacrificial anodes, they protect the valve stem and packing from corrosion. These graphite rings perform excellently in corrosion resistance and are particularly suitable for applications with high corrosion resistance requirements.

Moulded rings are made by cutting pure flexible graphite paper and then spirally winding and pressing it into ring-shaped packing in a mold. They can be processed into structures with straight cuts, angled cuts, or no cuts according to different usage requirements. The cross-section of moulded rings is usually square, but they can also be processed into wedge or V-shapes as needed, suitable for high-pressure areas. These graphite rings have good self-wetting properties and a high resilience coefficient, providing effective sealing. They are easy to install and can be used in combination with other end rings to meet more complex sealing needs.

The properties and features of graphite rings are mainly reflected in the following aspects.

The self-lubricating property of graphite rings is one of their most significant characteristics. This feature allows graphite rings to effectively reduce friction and minimize equipment wear without the need for external lubricants, thereby extending the service life of the equipment. In industries where grease lubricants are not allowed, such as food processing and pharmaceuticals, the self-lubricating property of graphite rings is particularly important. It not only ensures the normal operation of the equipment but also effectively prevents product contamination by lubricants, ensuring the quality and safety of the products.

Graphite rings have a high resilience coefficient, which means they can quickly return to their original shape after being subjected to external forces. This characteristic enables graphite rings to better adapt to equipment deformation and vibration during the sealing process, maintaining stable sealing performance. Even under harsh working conditions such as high pressure and high temperature, graphite rings can closely adhere to the equipment surface through their resilience, effectively preventing leaks.

During the production process of graphite rings, precise molding techniques can achieve high-precision size control. This allows graphite rings to perfectly match the sealing parts of the equipment, ensuring the reliability of the sealing effect. At the same time, the density of graphite rings can also be adjusted according to different usage requirements. This enables the achievement of lightweight design while ensuring performance, reducing the overall weight of the equipment and improving its operating efficiency.

Graphite rings themselves have excellent corrosion resistance, so no additional corrosion prevention treatment is required during use. This feature not only simplifies the equipment maintenance process and reduces maintenance costs but also reduces potential environmental pollution caused by improper corrosion prevention treatment, meeting the modern industry's requirements for environmental protection.

To ensure the sealing performance and service life of graphite rings, correct installation and maintenance are crucial.

Clean the installation area: Before installing the graphite ring, it is essential to ensure the cleanliness of the installation area, removing any oil, dust, or other impurities. This prevents impurities from entering the graphite ring, which could affect its sealing performance.

Check size compatibility: Ensure that the size of the graphite ring matches the installation area of the equipment perfectly. If the size is not suitable, it may lead to poor sealing or damage to the graphite ring.

Install the cut correctly: For graphite rings with cuts, such as a 45° angled cut, install them in the correct manner, ensuring the direction and position of the cut are accurate. This helps maintain good sealing performance during operation.

Apply pressure evenly: During installation, apply pressure evenly to avoid excessive local pressure that could deform or damage the graphite ring. Specialized installation tools can be used to ensure even pressure distribution.

Regular inspection: Regularly check the sealing performance and wear of the graphite ring. If leakage or severe wear is detected, replace the graphite ring promptly to prevent equipment failure and leakage accidents.

Avoid overloading: During equipment operation, avoid exceeding the design load of the graphite ring. Overloading may damage the graphite ring and affect its sealing performance.

Pay attention to temperature and chemical environment: Although graphite rings have good high-temperature and corrosion resistance, their performance may still be affected under extreme conditions. Therefore, pay attention to the temperature and chemical environment of the equipment during use to ensure that the graphite ring operates under suitable conditions.

Prevent oxidation: For graphite rings that are prone to oxidation, such as reinforced graphite packing rings, take measures to prevent oxidation. This can be done by using anti-oxidation coatings or adding anti-oxidation agents to the graphite ring to extend its service life.

The excellent properties of graphite rings have led to their widespread application in many industrial fields. In the food and beverage industry, graphite rings are widely used in the bearings of various conveyors, dryers, and other equipment. Since these industries have extremely high hygiene and cleanliness requirements, traditional grease lubricants may pose contamination risks. The self-lubricating property of graphite rings perfectly solves this problem, ensuring the safe production of food and beverages.

In the textile industry, graphite rings also play an important role. Whether in cloth dryers or synthetic fiber textile machines, graphite rings can provide reliable sealing and lubrication for the equipment, improving the operating efficiency and product quality of the equipment. Moreover, in the papermaking industry, graphite rings are used in the bearings of dryers and other equipment, effectively preventing paper damage and contamination during the production process.

In addition to the above industries, graphite rings are also widely used in chemical, pharmaceutical, petroleum, natural gas, and many other fields. In these industries, the high-temperature resistance, corrosion resistance, and wear resistance of graphite rings enable them to withstand various harsh working conditions, providing a solid guarantee for the safe operation of equipment. For example, in chemical production, graphite rings are used for sealing in various reactors, heat exchangers, condensers, and other equipment, effectively preventing the leakage of chemicals and ensuring the safety and stability of the production process.

As a high-performance sealing and wear-resistant material, graphite rings play an important role in modern industry. With their unique self-lubricating properties, wear resistance, high-temperature resistance, and corrosion resistance, they have been widely used in many fields, providing a strong guarantee for the safe operation of equipment and the improvement of production efficiency. With the continuous progress of technology and the expansion of application fields, the performance of graphite rings will continue to improve, and their application prospects will be even broader. In the future development, graphite rings will continue to contribute more to the development of industry with their excellent performance and wide applications, becoming an indispensable star material in the field of industrial sealing and lubrication.
