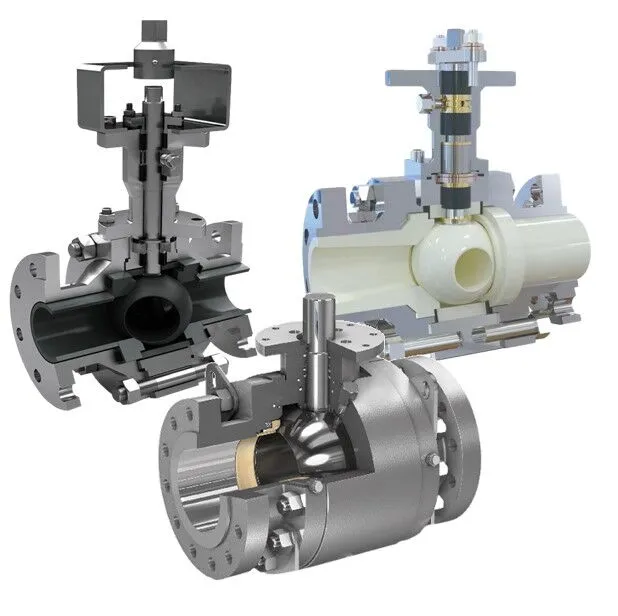

Sealing Technology & Design of High-Temperature Ball Valves

Ball valves are widely used in industrial piping systems for fluid control, especially in high-temperature environments where the sealing performance of the valve is critical. The sealing technology of high-temperature ball valves plays a crucial role in their overall performance. Compared to conventional low-temperature or normal-temperature ball valves, high-temperature ball valves must withstand extreme temperatures, pressures, and fluid media, making the selection of sealing technology and materials even more important. A high-temperature ball valve is not just a control component; its sealing performance directly affects the safety, stability, and efficiency of the system.

The working environment for high-temperature ball valves typically involves harsh conditions such as high temperatures, corrosive media, and significant variations in the medium. In these environments, the sealing performance of the valve directly determines whether it can operate reliably over an extended period.

Temperature Fluctuations: In high-temperature conditions, fluctuations in temperature can cause thermal expansion and contraction of the ball, valve seat, and sealing materials. This can lead to variations in the contact pressure between the sealing surfaces, thereby affecting the sealing effectiveness.

Corrosive Media: Corrosive media at high temperatures can accelerate the aging and wear of sealing materials, leading to a reduction in sealing performance and an increased risk of leakage.

Mechanical Wear: Under high-pressure, high-temperature conditions, the friction between the ball and valve seat increases, making the sealing surfaces more prone to wear, which reduces the reliability of the seal.

Aging Issues After Long-Term Use: Prolonged exposure to high temperatures can cause sealing materials to age, harden, or even fail, resulting in the breakdown of the sealing function.

As a result, the sealing design for high-temperature ball valves must address not only physical expansion caused by temperature but also the ability to withstand long-term mechanical stresses and chemical erosion.

The sealing design of high-temperature ball valves generally relies on the sealing surfaces between the valve seat and the ball. There are two main types of sealing designs based on the sealing method: soft sealing and hard sealing.

Soft-sealed ball valves typically use elastic materials such as PTFE (Polytetrafluoroethylene), rubber, or elastomers for the sealing surfaces. The advantage of soft-sealing designs is their excellent sealing performance under low or normal temperature conditions, providing good sealing effects. However, under high-temperature conditions, soft sealing materials tend to lose their elasticity, leading to sealing failure. For this reason, soft sealing designs are generally not suitable for high-temperature applications.

Hard-sealed ball valves typically use metal materials for the sealing surfaces. This design performs excellently under high-temperature environments, resisting high temperatures, corrosion, and wear. Hard-sealing structures provide stable sealing performance over a broader temperature range, especially in applications where temperatures exceed 250°C. The sealing pressure between the ball and the valve seat in hard-sealed designs is typically higher, ensuring that the risk of sealing failure is minimized.

In hard sealing designs, the precision of the sealing components and the selection of materials are crucial. Given that metals have a higher thermal expansion coefficient, the design must account for the effects of thermal expansion on sealing performance.

Metal sealing technology is one of the core technologies for high-temperature ball valves, especially in extreme temperature environments. Metal sealing structures can withstand higher temperatures and pressures and offer excellent resistance to corrosion and wear. The key to successful metal sealing lies in the selection of materials and surface treatment methods.

The choice of sealing material directly affects the working performance of high-temperature ball valves. Different materials are suited to different working conditions and must be selected based on factors such as temperature, pressure, medium type, and the mechanical properties, corrosion resistance, and wear resistance of the sealing material.

Stainless steel materials (e.g., SS 304, SS 316) are commonly used in high-temperature ball valve sealing designs due to their excellent corrosion resistance and strength. In environments with temperatures ranging from 250°C to 500°C, stainless steel maintains good sealing performance. However, as the temperature increases, some stainless steel materials may undergo intergranular corrosion, which can affect sealing performance. For high-temperature applications, alloyed stainless steel materials are often used to improve corrosion resistance.

Alloy steels (e.g., Inconel, Monel) are frequently used in high-temperature ball valve seals, especially in environments with high temperatures and corrosive media. Alloy steels offer high-temperature resistance and oxidation resistance, allowing them to perform reliably in temperatures exceeding 500°C. The sealing surfaces of alloy steels also possess excellent wear resistance, reducing friction between sealing surfaces and extending the valve's service life.

Ceramic materials possess excellent high-temperature resistance and wear resistance, making them suitable for sealing in extremely high-temperature environments. Ceramics have a low thermal expansion coefficient, which allows them to maintain stability at high temperatures. Additionally, ceramic materials offer strong resistance to chemical media, making them resistant to corrosion and wear. However, ceramics are brittle, so care must be taken to avoid mechanical impact during operation.

Graphite materials are commonly used for sealing in high-temperature ball valves due to their excellent high-temperature resistance, corrosion resistance, and self-lubricating properties. Graphite seals provide stable sealing performance, especially in high-temperature steam or gas environments. At elevated temperatures, graphite maintains a high degree of plasticity, which compensates for the expansion differences caused by temperature changes, ensuring stable sealing performance.

In high-temperature conditions, the sealing technology of ball valves not only affects their operational safety and sealing reliability but also directly impacts the stability and economy of the entire system. The following are critical considerations in high-temperature ball valve sealing technology.

Sealing pressure refers to the pressure applied per unit contact area between the ball and valve seat. To ensure sealing performance in high-temperature environments, the sealing pressure must be kept within a reasonable range. If the sealing pressure is too high, it could lead to wear and leakage between the sealing surfaces. Conversely, if the sealing pressure is too low, sealing failure could occur. Therefore, designing an appropriate sealing pressure is crucial for ensuring the stable performance of high-temperature ball valves.

Due to the large thermal expansion coefficient of metal materials, high-temperature ball valve designs must fully consider the impact of thermal expansion on sealing performance. The contact surfaces between the ball and valve seat must be designed to accommodate different degrees of thermal expansion to avoid sealing issues caused by temperature fluctuations. The use of elastic materials, metal bellows, or specially designed sealing components can effectively compensate for the impact of thermal expansion, ensuring stable sealing performance.

In high-temperature environments, sealing surfaces not only need to withstand high temperatures but also must resist the corrosion of aggressive media and frictional wear. Therefore, the wear resistance and corrosion resistance of materials are crucial factors to consider when designing high-temperature ball valve seals. Selecting appropriate alloy materials, ceramic materials, and coatings can significantly enhance the durability of sealing surfaces in harsh environments.

Due to prolonged exposure to high-temperature and high-pressure conditions, the sealing components of high-temperature ball valves may experience wear, aging, or corrosion. Regular maintenance and inspection are essential to ensure the long-term stable operation of high-temperature ball valves.

Inspecting the sealing surfaces is one of the core activities in maintaining high-temperature ball valves. It is essential to periodically check whether the sealing surfaces between the ball and the valve seat have worn, cracked, or corroded. Timely replacement of damaged sealing materials can effectively prevent valve leakage and ensure system safety.

The sealing surfaces of high-temperature ball valves are subject to both friction and high temperatures during operation. Regular lubrication can reduce friction, minimize wear, and extend the lifespan of the sealing surfaces. Additionally, cleaning the valve interior to remove accumulated dirt and impurities is necessary to prevent particles from damaging the sealing surfaces and ensure stable sealing performance.

Sealing materials gradually age or harden at high temperatures. Therefore, it is essential to regularly inspect the performance of sealing materials to ensure they can continue to provide reliable sealing in high-temperature environments. If the performance of the sealing materials deteriorates, they should be replaced promptly.

The sealing technology of high-temperature ball valves directly affects their performance stability under harsh conditions. Through precise design, material selection, and effective maintenance, it is possible to ensure that high-temperature ball valves provide reliable sealing performance over extended periods, preventing leakage and equipment failure. When designing the sealing system for high-temperature ball valves, factors such as temperature variations, pressure fluctuations, and corrosive media must be carefully considered, with the appropriate sealing structure and materials selected to optimize performance. As technology continues to evolve, sealing technologies for high-temperature ball valves will become increasingly refined and efficient, offering more reliable fluid control solutions for industrial applications.
