Serrated Gaskets: A Reliable Choice for Industrial Sealing

In industrial production, the sealing process is of vital importance as it directly affects the safe operation of equipment and production efficiency. Among various sealing solutions, serrated gaskets, with their unique design and superior performance, have become the preferred choice for many enterprises to ensure effective sealing. This article will provide a detailed introduction to the structure, performance, installation, and wide applications of serrated gaskets, helping everyone gain a better understanding of this important industrial sealing element.

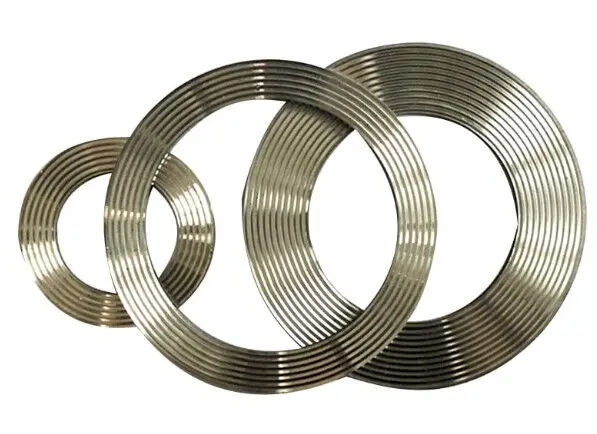

A serrated gasket is a composite sealing gasket made of metal and non-metal materials. The metal part is usually made of high-quality steel or stainless steel, which are known for their high strength and good toughness, allowing them to withstand high pressure and temperature. The non-metal part is often made of flexible graphite or other materials that are resistant to high temperatures and corrosion. These non-metal materials, supported by the metal serrations, can closely adhere to the sealing surface, forming a robust sealing barrier that effectively prevents fluid leakage.

The unique feature of serrated gaskets lies in their serrated structure. This structure allows for a tight fit with the surfaces of equipment and pipelines, thereby achieving effective sealing. The metal serrations can evenly distribute pressure, making the contact between the gasket and the flange sealing surface more intimate. Even if there are vibrations or pressure fluctuations during the operation of pipelines or equipment, serrated gaskets can still maintain a stable sealing state. This design is not only suitable for general industrial pipelines but also plays a significant role in harsh working conditions such as high temperature, high pressure, and strong corrosion, providing strong assurance for the safe operation of equipment.

The non-metal part of serrated gaskets, such as flexible graphite or polytetrafluoroethylene (PTFE), plays a key role in sealing. These materials not only have good sealing properties but can also withstand harsh environments like high temperature, high pressure, and corrosion. For example, flexible graphite can maintain stable performance at high temperatures, while PTFE has excellent chemical stability and corrosion resistance. The combination of these materials with the metal serrations enables serrated gaskets to perform well in various complex working conditions.

Serrated gaskets possess a variety of excellent performance features that make them stand out in industrial sealing.

The sealing performance of serrated gaskets is outstanding, effectively preventing the leakage of gases and liquids. The metal serrations can evenly distribute pressure, making the contact between the gasket and the flange sealing surface more intimate. Even under high-pressure and high-temperature conditions, serrated gaskets can still maintain a stable sealing state. This design is not only suitable for general industrial pipelines but also plays a significant role in harsh working conditions such as high temperature, high pressure, and strong corrosion, providing strong assurance for the safe operation of equipment.

Serrated gaskets have good resistance to high temperature and high pressure. The metal part is usually made of high-quality steel or stainless steel, which can withstand high temperatures and pressures. The non-metal part, such as flexible graphite or PTFE, also has excellent high-temperature and high-pressure resistance. For example, flexible graphite can maintain stable performance at temperatures as high as 650°C, while PTFE can maintain good sealing performance over a wide range of temperatures. The combination of these materials allows serrated gaskets to operate stably in high-temperature and high-pressure environments over the long term.

The non-metal part of serrated gaskets, such as flexible graphite or PTFE, has good corrosion resistance. These materials can resist the erosion of various chemical media and are suitable for corrosive environments. For example, PTFE has excellent chemical stability and corrosion resistance, capable of resisting the erosion of most chemical media. This corrosion resistance makes serrated gaskets perform well in industries such as chemical and petroleum, effectively preventing the leakage of corrosive media and ensuring the safe operation of equipment.

The installation of serrated gaskets is very convenient. Their unique serrated structure allows for quick positioning during installation, ensuring a tight fit with the flange sealing surface. The flexibility of the gasket also enables it to adapt to sealing surfaces of different shapes and roughness, reducing the risk of leakage caused by uneven sealing surfaces. In addition, the thickness of serrated gaskets can be customized according to actual needs, further enhancing their applicability and flexibility.

Inspect the Sealing Surface: Before installing a serrated gasket, it is necessary to check the flatness and cleanliness of the flange sealing surface. Ensure that there are no scratches, pits, or other defects on the sealing surface, as these defects can cause leakage.

Select the Appropriate Gasket: Choose the appropriate serrated gasket based on the working conditions of the equipment. Consider factors such as pressure, temperature, and medium, and select the appropriate material and size.

Position the Gasket: Place the serrated gasket on the flange sealing surface, ensuring that the serrated structure of the gasket closely adheres to the sealing surface. The flexibility of the gasket allows it to adapt to sealing surfaces of different shapes and roughness, reducing the risk of leakage.

Tighten the Bolts Evenly: During installation, it is necessary to tighten the bolts evenly to ensure uniform contact between the gasket and the flange sealing surface. Avoid overtightening or uneven tightening, which can damage the gasket or deform the sealing surface.

Check the Sealing Effect: After installation, check the sealing effect. Pressure testing or leakage detection equipment can be used to ensure that the gasket's sealing performance meets the requirements.

Regular Inspection: During equipment operation, regularly inspect the sealing effect of serrated gaskets. Check for signs of leakage, such as dripping liquid or escaping gas.

Avoid Over-Tightening: During equipment operation, avoid over-tightening the gasket. Over-tightening can damage the gasket or deform the sealing surface, affecting the sealing effect.

Timely Replacement: If the gasket is found to be damaged or the sealing effect has decreased, replace the gasket promptly. Choose the appropriate gasket material and size to ensure the equipment's sealing performance.

Cleaning and Maintenance: Regularly clean the flange sealing surface and gasket to prevent the accumulation of impurities and dirt, which can affect the sealing effect. Use appropriate cleaning agents and tools to avoid damaging the sealing surface and gasket.

The application range of serrated gaskets is extremely wide, covering multiple industrial fields.

In the petrochemical industry, serrated gaskets are widely used for sealing in pipeline flanges, valves, and other parts. They can effectively prevent the leakage of oil and gas, ensuring the safe operation of production. For example, in the petroleum refining process, serrated gaskets are used for high-temperature and high-pressure pipeline connections, ensuring the safe transportation of petroleum products. In chemical production, serrated gaskets are used for sealing various reactors, towers, and other equipment, preventing the leakage of chemical media and ensuring the safety and efficiency of production.

In the power industry, serrated gaskets are used for sealing in boilers, steam turbines, and other equipment. These devices operate in high-temperature and high-pressure environments, and serrated gaskets can ensure their efficient operation. For example, in the steam pipes of boilers, serrated gaskets are used for flange connections to prevent steam leakage and improve boiler efficiency. In the sealing system of steam turbines, serrated gaskets can effectively prevent the leakage of lubricating oil and cooling water, ensuring the normal operation of the steam turbine.

In the mechanical manufacturing industry, serrated gaskets are used for sealing connections in various mechanical devices. They can improve the reliability and service life of equipment. For example, in compressors and pumps, serrated gaskets are used for sealing the inlet and outlet pipes to prevent the leakage of gas or liquid. In mechanical transmission systems, serrated gaskets are used for sealing gearboxes, bearings, and other components, ensuring the normal operation of the equipment.

As a composite sealing gasket made of metal and non-metal materials, serrated gaskets, with their unique serrated structure and superior performance, have become a reliable choice for industrial sealing. They not only have excellent sealing performance but also possess good resistance to high temperature, high pressure, and corrosion. Their easy installation and convenient maintenance make them widely used in various industrial fields. With the continuous development of material innovation and structural optimization, serrated gaskets will play an even more important role in future industrial sealing, providing strong assurance for the safe operation of equipment and production efficiency.
