Pneumatic Ball Valve: An Efficient Choice for Fluid Control

In modern industrial production, the transmission and control of fluids are core elements of many process flows. Whether in the chemical, petroleum, natural gas, or food processing industries, there is a need for an efficient, reliable, and easy-to-operate valve to achieve precise control of fluid flow, pressure, and direction. Pneumatic ball valves, with their unique advantages, stand out among various types of valves and have become the ideal choice in the field of industrial fluid control. This article will delve into the working principle, types, advantages, and application fields of pneumatic ball valves to help you gain a comprehensive understanding of this efficient industrial device.

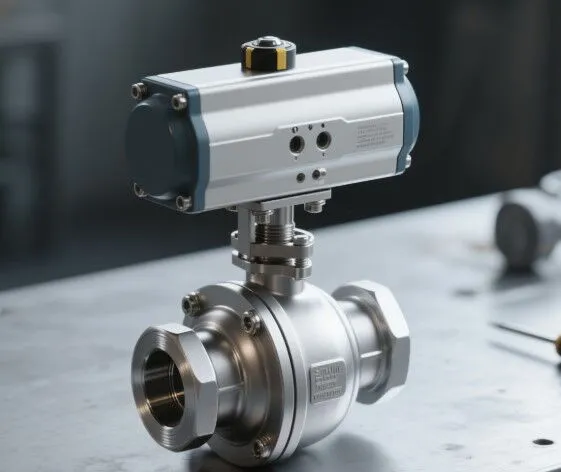

A pneumatic ball valve is an automated control valve composed of a pneumatic actuator and a ball valve. The ball valve itself is a type of valve that uses a sphere to rotate around the centerline of the valve body to achieve opening and closing. When the sphere rotates to 90°, the valve is in a tightly closed state. When the sphere rotates to be parallel with the pipeline, the valve is fully open. The pneumatic actuator, driven by compressed air, can quickly and accurately control the rotation of the sphere, thereby achieving the opening and closing operation of the valve.

Pneumatic ball valves are usually equipped with a variety of accessories. These include solenoid valves, air source treatment triad, limit switches, and positioners. These accessories not only enhance the functionality of the valve but also enable pneumatic ball valves to achieve local control and remote centralized control. For example, by installing corresponding control devices in the control cabinet, operators can easily control the opening and closing of the valve in the control room away from the site. They do not have to go to the site or hazardous areas for manual operation. This greatly improves work efficiency and safety.

The working principle of pneumatic ball valves is relatively simple, but their operating efficiency and reliability are very high. When compressed air enters the pneumatic actuator, the air source will drive the ball core to rotate 0-90 degrees. This process requires only a small amount of torque, yet it can achieve rapid valve opening and closing. According to the requirements of the working conditions, a valve positioner can also be installed to control the opening of the ball valve core, thereby regulating the flow of the medium.

The pneumatic actuator of a pneumatic ball valve is mainly divided into two types: single-acting and double-acting. The single-acting pneumatic actuator is equipped with a spring inside. When the air source is working normally, compressed air pushes the piston to open or close the valve. When the air source fails or there is a sudden power outage, the spring will automatically reset, bringing the valve back to the preset safe state. This design is particularly important in hazardous working conditions. For example, in pipelines conveying flammable gases or liquids, the single-acting pneumatic actuator can automatically close the valve when the air source is lost, minimizing the danger.

The double-acting pneumatic actuator relies on the ventilation of both ends of the cylinder to achieve the opening and closing operation of the valve. When compressed air enters from one side, the valve opens. When the other side is ventilated, the valve closes. The double-acting pneumatic actuator cannot automatically reset when the air source is lost, but its structure is relatively simple and is suitable for working conditions with lower safety requirements.

Based on different structures and functions, pneumatic ball valves are mainly divided into on-off type pneumatic ball valves and regulating type pneumatic ball valves.

The valve core of the on-off type pneumatic ball valve is generally an O-type ball core. It is a floating precision casting with a flow passage opening the same as the pipeline diameter. This design enables the on-off type pneumatic ball valve to have extremely high sealing performance during opening and closing. It is mainly used for fluid cut-off and opening operations. The operation of the on-off type pneumatic ball valve is simple and quick, requiring only a 90° rotation to complete the valve opening and closing. This makes it very suitable for working conditions that require rapid fluid cut-off.

The valve core of the regulating type pneumatic ball valve is a V-type ball core. It adopts a fixed structure with a V-shaped notch on the ball core. By installing a positioner on the actuator, the regulating type pneumatic ball valve can achieve proportional regulation of media containing fibers and granular substances. This type of valve can not only control the opening and closing of the fluid but also accurately regulate the fluid flow according to process requirements. This makes it suitable for occasions that require precise control of fluid flow.

The widespread application of pneumatic ball valves in the industrial field is mainly due to their many significant advantages.

The opening and closing speed of pneumatic ball valves is extremely fast, with the fastest speed reaching 0.05 seconds per cycle. This rapid cut-off capability makes pneumatic ball valves perform well in emergency situations that require quick fluid isolation. It effectively prevents the escalation of accidents.

The operation of pneumatic ball valves is very simple, requiring only the drive of the pneumatic actuator by compressed air to achieve valve opening and closing. Compared with manual valves, pneumatic ball valves not only save a lot of manpower and material resources but also allow centralized control of multiple valves at the same time. This greatly improves work efficiency.

The sealing performance of pneumatic ball valves is very good. The sealing surface and the sphere always remain in a closed state, not easily eroded by the medium. Even under harsh working conditions, such as high pressure, high vacuum, or media containing particles, pneumatic ball valves can still maintain good sealing performance. This effectively prevents fluid leakage and ensures the safety and stability of the production process.

The range of applications for pneumatic ball valves is very wide. Their diameters range from a few millimeters to several meters, and they can be used from high vacuum to high pressure. Whether it is general working media such as water, solvents, acids, and natural gas, or harsh media such as oxygen, hydrogen peroxide, methane, and ethylene, pneumatic ball valves can handle them. This wide range of applicability makes pneumatic ball valves suitable for a variety of industrial fields.

Pneumatic ball valves have a compact structure, small size, and light weight, making them easy to install and maintain. The sealing ring is generally movable, and its removal and replacement are very convenient. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. The medium will not erode the valve sealing surface when passing through, further extending the service life of the valve.

Due to the many advantages mentioned above, pneumatic ball valves have been widely used in various industrial fields.

In chemical production, pneumatic ball valves are widely used to control the flow and pressure of various chemical media. Whether it is acid and alkali solutions, organic solvents, or hazardous chemicals, pneumatic ball valves can provide reliable sealing and precise flow control. Their rapid opening and closing capabilities can also effectively prevent chemical reactions from getting out of control, ensuring the safety of the production process.

The petroleum and natural gas industry has extremely high requirements for the sealing and reliability of valves. Pneumatic ball valves play an important role in the extraction, transportation, and refining of oil and gas. They can quickly cut off the flow of oil and gas, preventing leaks and fire accidents. At the same time, the high-pressure resistance and corrosion resistance of pneumatic ball valves enable them to operate stably in harsh oil and gas environments for a long time.

In the food processing process, hygiene and safety are of vital importance. The good sealing performance of pneumatic ball valves, which are easy to clean and maintain, can effectively prevent food contamination. Their rapid opening and closing capabilities can also improve production efficiency and ensure the continuity and stability of the food processing process.

The pharmaceutical industry has extremely strict requirements for the cleanliness and sterility of the production environment. The sealing and corrosion resistance of pneumatic ball valves make them the ideal fluid control equipment in pharmaceutical production. They can accurately control the flow and pressure of medicinal solutions, ensuring the quality and safety of drug production.

In the water treatment process, pneumatic ball valves are used to control the opening and closing of water flow and flow regulation. Their corrosion resistance and rapid opening and closing capabilities enable them to operate stably in complex water treatment environments for a long time, ensuring stable water quality and treatment effects.

Choosing the right pneumatic ball valve is crucial to ensuring the smooth progress of the production process. When selecting a pneumatic ball valve, the following key points need to be considered.

Select the appropriate type and specification of pneumatic ball valve according to the specific working conditions. For example, if rapid fluid cut-off is required, the on-off type pneumatic ball valve is an ideal choice. If precise flow regulation is needed, the regulating type pneumatic ball valve should be selected.

Consider the properties of the fluid medium, such as temperature, pressure, and corrosiveness. Different media have different requirements for the material and sealing performance of the valve. For example, for media with strong corrosiveness, a pneumatic ball valve made of materials with good corrosion resistance should be chosen.

Select a single-acting or double-acting pneumatic actuator according to the safety and reliability requirements of the working conditions. In hazardous working conditions, a single-acting pneumatic actuator can provide higher safety guarantees. In working conditions with lower safety requirements, a double-acting pneumatic actuator is more cost-effective.

Choosing a pneumatic ball valve produced by a well-known brand can ensure the quality of the product and after-sales service. Well-known brands usually have a strict quality control system and a complete after-sales service network, which can provide users with reliable guarantees.

To ensure the long-term stable operation of pneumatic ball valves, regular maintenance and care are essential.

Regular Inspection: Regularly check the sealing performance of the pneumatic ball valve, the working condition of the pneumatic actuator, and the integrity of the accessories. Timely detection and handling of potential problems can effectively prevent failures.

Cleaning and Lubrication: Regularly clean the surface and interior of the pneumatic ball valve to remove dust and impurities. At the same time, lubricate the moving parts of the pneumatic actuator to reduce wear and extend the service life of the equipment.

Replacement of Wearable Parts: Timely replace wearable parts such as sealing rings and springs to ensure the sealing performance and working reliability of the valve.

Standard Operation: Strictly follow the operating procedures when using the pneumatic ball valve to avoid abnormal operations such as overpressure and overheating. Correct operating methods can effectively reduce the failure rate of the valve and extend its service life.

As an efficient and reliable industrial fluid control device, pneumatic ball valves play an irreplaceable role in modern industrial production. Their rapid opening and closing capabilities, excellent sealing performance, wide range of applications, and simple operating methods have led to their widespread use in many industrial fields. With the continuous progress of technology, pneumatic ball valves will develop in the direction of intelligence, efficiency, and environmental protection, providing stronger support for the automation and intelligence of industrial production. When selecting and using pneumatic ball valves, users need to choose the appropriate valve type and specification according to the specific working conditions and medium characteristics, and strictly follow the operating procedures for operation and maintenance. Only in this way can the advantages of pneumatic ball valves be fully utilized to ensure the smooth progress of the production process and the long-term stable operation of the equipment.
